Installation

Installation

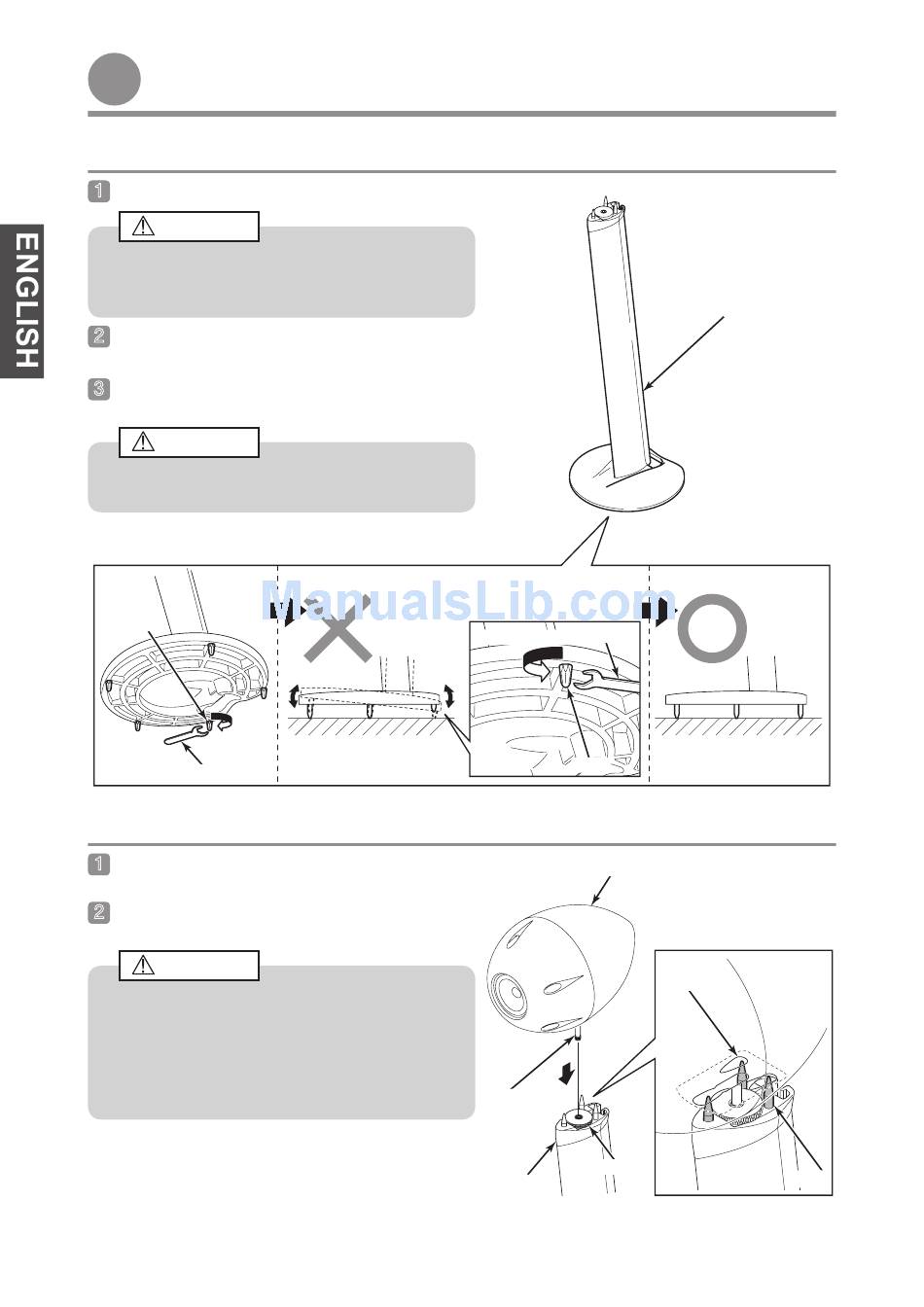

- Adjusting the spikes -

1

Determine the location for setting up the speaker stand.
Caution
Assemble this product on a flat, level surface. If you
assemble it on a sloping surface, the stand may fall
over.
2

Securely tighten the spikes on the base of the stand
before placing the stand on the floor.
3

Ensure the stand is stable to obtain the best
performance.
Caution
If the stand is not adjusted correctly, it could fall
damaging the floor.
Spikes X5
Tighten
❺
Spanner

- Installing the speaker -

1

Insert the locking pin of the speaker into the locking ring
in the stand.
2

Set the speaker onto the stand so that the three pins are
aligned with the grooves in the speaker.
Caution
･ The speaker is heavy, and should be held with both
hands during installation.
･ Do not touch the cone while attaching the speaker to
the stand to ensure the driver is not damaged.
･ Be careful not to damage the base of the speaker
when fitting the speaker onto the stand.
Adjust the height of the spikes to provide a stable platform.
− 12 −
❺
Spanner
Adjust the height.
Spikes
❶
Speaker
Locking pin
Locking ring
❷
Stand
❷
Stand
Grooves X3
Pins X3
