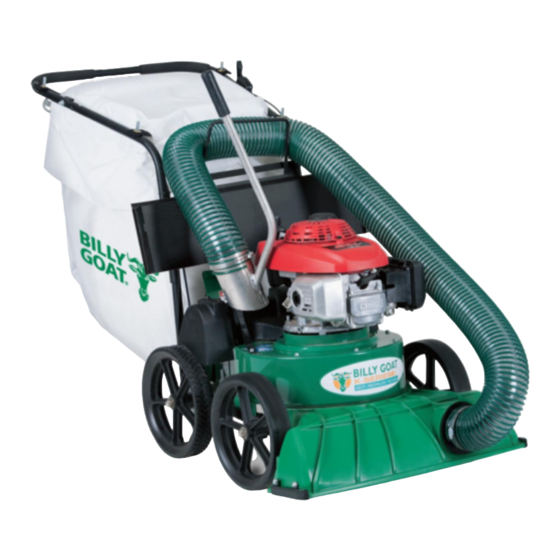

Billy Goat KV600 Owner's Manual
Kv vacuum
Hide thumbs
Also See for KV600:
- Owner's manual (16 pages) ,
- General safety and warranty (36 pages) ,
- Owner's manual (11 pages)
Table of Contents
Advertisement
Accessories
ON BOARD
OPTIONAL
VACUUM
FELT/MESH
HOSE KIT
DEBRIS BAG
4"(102mm) x
For use in leaves
7.5' (2.13m)
and grass in dusty
For
conditions.
vacuuming in
hard to reach
P/N 891126 FELT
areas.
BAG
P/N 891132
MESH BAG
P/N 891125
Part No 891203
KV Push Owner's Manual
Owner's Manual
KV600, KV650H, KV600FB, KV650HFB
NOZZLE
CASTER KIT
WEAR
GUARD KIT
For use in
To allow for
increasing the
easy rolling and
life of your
maneuverability
nozzle by
on smooth
protecting it
surfaces.
from damage
P/N 891127
P/N 891128
SHREDDER
KIT
Shreds
leaves,
reducing total
volume.
P/N 891153
1
KV LINER KIT
PROTECTIVE
COVER
Increases the
Protects the
life of the
machine from
housing by
the environment
protecting it from
when not in use.
damage.
P/N 891134
P/N 891137
Form No F081612B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Billy Goat KV600
Summary of Contents for Billy Goat KV600
- Page 1 KV Push Owner’s Manual Owner's Manual KV600, KV650H, KV600FB, KV650HFB Accessories ON BOARD OPTIONAL NOZZLE CASTER KIT SHREDDER KV LINER KIT PROTECTIVE VACUUM FELT/MESH WEAR COVER HOSE KIT DEBRIS BAG GUARD KIT 4"(102mm) x For use in leaves For use in...
- Page 2 KV Push Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/ VIBRATION INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE AND TROUBLESHOOTING ILLUSTRATED PARTS & PARTS LISTS Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits Part No 891203 Form No F081612B...
- Page 3 KV Push Owner’s Manual Specifications KV600 KV650H KV600FB KV650HFB Engine: HP 6.0 (4.47 kW) 6.5 (4.85kW) 6.0 (4.47 kW) 6.5 (4.85kW) Engine: Type B&S Quantum HONDA B&S Quantum HONDA Engine: Model 112K020124E1 GSV190AN1L 112K020124E1 GSV190AN1L Engine: Fuel Capacity 1.5 qt. (1.4 L) 1.6 qt.
-
Page 4: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT KV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown. -
Page 5: Packing Checklist
KV Push Owner’s Manual PACKING CHECKLIST Your Billy Goat KV Vacuum is shipped from the factory in one carton, completely assembled except for the upper handle, debris bag, and bag quick disconnect. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box the Handle Assembly is attached by... -
Page 6: Debris Bag
KV Push Owner’s Manual OPERATION VACUUMING OPERATION VACUUM NOZZLE HEIGHT ADJUSTMENT: Nozzle height is raised and lowered by rotating the red knob near the left rear wheel. Nozzle height should be adjusted based on the task being performed. FOR MAXIMUM PICKUP : Adjust nozzle close to debris, but without blocking airflow into the nozzle. -
Page 7: Maintenance
KV Push Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use (daily) Every 5 hrs (daily) Every 25 Hours Inspect for loose, worn or damaged parts. Clean Debris bag ... - Page 8 KV Push Owner’s Manual PARTS DRAWING KV Part No 891203 Form No F081612B...
-
Page 9: Parts List
KV Push Owner’s Manual PARTS LIST KV600/KV600FB KV650H/KV650HFB ITEM DESCRIPTION PART PART NUMBER NUMBER MAIN FRAME HOUSING NEW KD 891100-S 891100-S NOZZLE ASSEMBLY TKV 891110-S 891110-S AXLE W A KV MICRO 891138 891138 PLATE TOP ENGINE KV 891007-1-S 891007-1-S IMPELLER 12.75 W A PUSH VAC... - Page 10 KVSP/TKVSP Owner’s Manual Owner's Manual KV600SP, KV650SPH, TKV650SPH, KV600SPFB, KV650SPHFB, TKV650SPHFB Accessories ON BOARD OPTIONAL NOZZLE CASTER KIT SHREDDER KV LINER KIT PROTECTIVE VACUUM FELT/MESH WEAR COVER HOSE KIT DEBRIS BAG GUARD KIT 4"(102mm) x For use in leaves For use in To allow for Shreds Increases the...
-
Page 11: Specifications And Sound/Vibration
KVSP/TKVSP Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE _ 8-10 TROUBLESHOOTING ____________________________ ILLUSTRATED PARTS & PARTS LISTS 12-14 Go to http://www.billygoat.com for French-Canadian translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits Part No 891204 Form No F081612C... -
Page 12: Specifications
KVSP/TKVSP Owner’s Manual Specifications KV600SP KV650SPH TKV650SPH KV600SPFB KV650SPHFB TKV650SPHFB Engine: HP 6.0 (4.47kW) 6.5 (4.85kW) 6.5 (4.85 kW) 6.0 (4.47kW) 6.5 (4.85kW) 6.5 (4.85 kW) Engine: Type B&S Quantum HONDA HONDA B&S Quantum HONDA HONDA Engine: Model 112K020124E1 GSV190AN1L GSV190AN1L 112K020124E1 GSV190AN1L... - Page 13 INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT KV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
- Page 14 KVSP/TKVSP Owner’s Manual PACKING CHECKLIST Your Billy Goat KV Vacuum is shipped from the factory in one carton, completely assembled except for the upper handle, debris bag, and bag quick disconnect. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box the Handle Assembly is attached by...
- Page 15 KVSP/TKVSP Owner’s Manual OPERATION VACUUMING OPERATION VACUUM NOZZLE HEIGHT ADJUSTMENT : Nozzle height is raised and lowered by rotating the red knob near the left rear wheel. Nozzle height should be adjusted based on the task being performed. FOR MAXIMUM PICKUP : Adjust nozzle close to debris, but without blocking airflow into the nozzle.
- Page 16 KVSP/TKVSP Owner’s Manual COMPOST Vacuumed leaves, grass and other organic material from your own yard can be emptied into a pile or composter to provide enriched soil for later use as fertilizer in gardens and flower beds NOTE: Allow green chips to dry before spreading around living plants. MULCH Wood chips made from branches in your own yard make excellent mulch.
- Page 17 8. Lift impeller upward. If impeller slides freely, proceed to (step 10). 9. If the impeller does not loosen, obtain a 3/4-16x3” (Billy Goat part #440192) or longer bolt. Thread bolt by hand into nut until bolt rests against the shaft. Tighten the bolt slowly, which will pull the impeller away from the shaft, remove impeller from shaft.
-
Page 18: Belt Tension Adjustment
8. Lift impeller upward. If impeller slides freely, proceed to (step 10). 9. If the impeller does not loosen, obtain a 3/4-16x3” (Billy Goat part #440192) or longer bolt. Thread bolt by hand into nut until bolt rests against the shaft. Tighten the bolt slowly, which will pull the impeller away from the shaft, remove impeller from shaft. - Page 19 Note: The chipper blade gap is factory set and should be checked each time impeller is removed from engine crankshaft and reset if required. If reassembly requires a different quantity of shim washers, Billy Goat® shim washer must be used.
- Page 20 KVSP/TKVSP Owner’s Manual Troubleshooting Problem Possible Cause Solution Abnormal vibration. · Loose or out of balance impeller or · Check impeller and replace if required. loose engine Check engine Will not vacuum or has poor · dirty debris bag. Hose kit cap missing. ·...
- Page 21 KVSP/TKVSP Owner’s Manual PARTS DRAWING KVSP/TKVSP Part No 891204 Form No F081612C...
- Page 22 KVSP/TKVSP Owner’s Manual PARTS LIST KVSP/TKVSP ITEM KV600SP/KV600SPFB KV650SPH/KV650SPHFB TKV650SPH/TKV650SPHFB Description PART NUMBER PART NUMBER PART NUMBER MAIN FRAME HOUSING KV 891100-S 891100-S 891100-S NOZZLE ASSEMBLY TKV 891110-S 891110-S 891110-S AXLE WA KV MICRO 891138 891138 891138 PLATE TOP WA KVSP 891101-S 891101-S 891107-S...
- Page 23 KVSP/TKVSP Owner’s Manual KV600SP/KV600SPFB KV650SPH/KV650SPHFB TKV650SPH/TKV650SPHFB PART NUMBER PART NUMBER PART NUMBER SCREWCAP 1/4 - 20 x 5/8 HWH 890359 890359 890359 BOLT IDLER 3/8-16 X 1 1/2 800888 800888 800888 WASHER 1/4" SAE ZP 8172007 8172007 8172007 WASHER 5/16 FLATWASHER Z/P 8171003 8171003 8171003...
