Page 1: User Manual

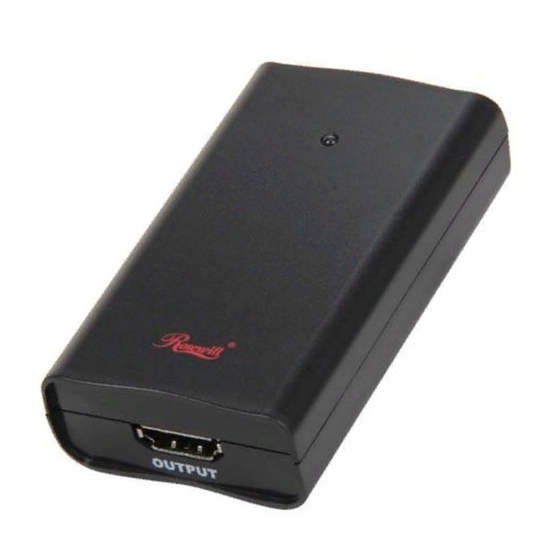

USB to HDMI Adapter RCAD-11002 User Manual Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product. - Page 2 User Manual Introduction The USB TO HDMI adapter(Rosewill USB to HDMI Adapter) is the perfect solution for connect your computer or notebook to your HDTV or monitor via an all in one HDMI connection. It can convert USB2.0 interface to HDMI, and allows you to add extra display (up to 6 displays for pc or 4 for Mac ) through your USB2.0 Port.
-
Page 3: Installation
3.Please wait for installation completed. b. Hardware Installation 1.Take out HDMI cable that comes with Rosewill USB to HDMI Adapter out and connect to your TV or monitor. 2.Connect the other side of HDMI cable to Rosewill USB to HDMI Adapter device. - Page 4 USB to HDMI Adapter RCAD-11002 User Manual Q&A If your HDPiX doesn’t turn on after being plugged in try the following. Ans : a. Turn of all Programs that are running (i.e. Internet Explorer, Microsoft Word) and reconnect the HDPiX b.
-
Page 5: Quick Installation Guide
USB to HDMI Adapter RCAD-11002 User Manual Quick Installation Guide Equipments • Computer or Notebook (with USB 2.0 port) • Monitor or TV (with HDMI port) • USB to HDMI Adapter • USB CABLE • HDMI CABLE... -
Page 6: Driver Installation
USB to HDMI Adapter RCAD-11002 User Manual Driver Installation Please double click the driver in the CD. Please select your language and then select “ I Agree ”. Please wait for installation completed. -
Page 7: Hardware Installation
User Manual Hardware Installation Step1 Prepare 1 HDMI cable and take Rosewill USB to HDMI Adapter out . Connect HDMI cable to your TV or monitor. Step2 Connect the other side of HDMI cable to Rosewill USB to HDMI Adapter device. - Page 8 USB to HDMI Adapter RCAD-11002 User Manual Installation After installation, bottom right corner will show you“ found new hardware ” in your computer. Please search control panel >system >hardware >device manager you can check if there is under “ DisplayLink Device ”...
- Page 9 USB to HDMI Adapter RCAD-11002 User Manual Operating Software Select “ Screen Resolution ” to choose resolution you need. In “ Screen Rotation ”, you may select screen to 90°,180°, 270° in different positions . You can also change screen to different directions.
- Page 10 USB to HDMI Adapter RCAD-11002 User Manual For example: “Extend” to “right” Main display Assistant display Set the secondary display as By choosing “ Mirror ” function, the main display. you can show your second monitor as the same monitor screen as first monitor.
- Page 11 USB to HDMI Adapter RCAD-11002 User Manual By selecting “Advanced...” You will direct access “Windows Display Settings”, it is a short cut for faster access. You can turn it off, so it will return to original status. Open a GUI to change the size of the Windows desktop so it fits on a TV screen.
