- Page 1 Wireless N Adapter RNX-N150UBE User Manual...
-
Page 2: Fcc Statement
Wireless N Adapter RNX-N150UBE FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. - Page 3 Wireless N Adapter RNX-N150UBE Luxembourg Norway Implemented Russian Federation Note: Please don’t use the product outdoors in France. required General authorization required for network and service supply(not for spectrum) This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Only for indoor applications User Manual...
-
Page 4: Table Of Contents
Wireless N Adapter RNX-N150UBE Table of Content Chapter 1 Overview ...5 Package Content...5 Overview of the Product...5 Features...6 System Requirement ...6 Chapter 2 Installation Guide ...8 Software Installation...8 Chapter 3 Install Wireless Adapter... 11 USB adapter Installation ... 11 Chapter 4 System Configuration...13 General ...13 Profile ...14 4.2.1 Add...15... -
Page 5: Chapter 1 Overview

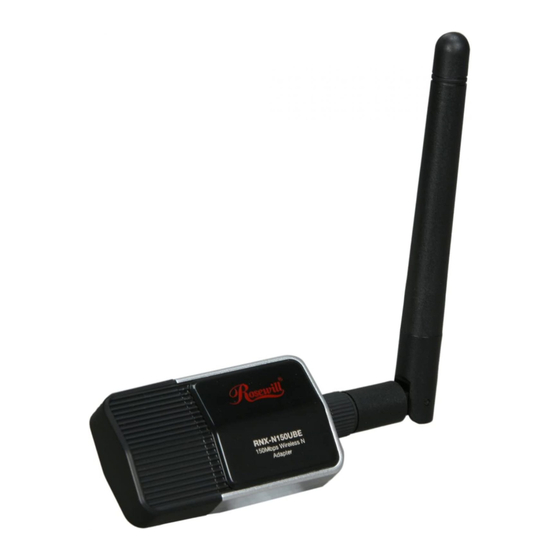

The adapter is easy to install and manage. The Quick Setup Wizard guides you step-by-step through the installation process; the Rosewill Wireless N Client Utility helps you create a wireless connection immediately. With unmatched wireless performance, reception, and security protection, the RNX-N150UBE is the best choice for easily adding or upgrading wireless connectivity to your notebook and computer. -
Page 6: Features
Wireless N Adapter RNX-N150UBE Features Complies with IEEE802.11n, IEEE802.11g, IEEE802.11b standards Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption, and 64/128 - bit WEP encryption Supports up to 150Mbps download speed for maximum throughput Ease to configure and provides monitoring information ... - Page 7 Wireless N Adapter RNX-N150UBE Windows OS for Win98SE, ME, 2000, XP, Vista, 7 A CD-ROM Drive USB controller properly installed and working in the computer A 802.11n 、802.11g or 802.11b Wireless Access Point/Router (for infrastructure Mode) or another 802.11n、802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode).
-
Page 8: Chapter 2 Installation Guide
Wireless N Adapter RNX-N150UBE Chapter 2 Installation Guide Software Installation Insert the Driver and Utility CD-ROM into the CD-ROM driver. The Wizard should run automatically, and Figure 2-1 should appear. If not, click the Start button and choose Run. In the field that appears, enter D:\autorun.exe (if ‘’D’’... - Page 9 Wireless N Adapter RNX-N150UBE Click Next Click Install to start installing Figure 2-2 Figure 2-3 User Manual...
- Page 10 Wireless N Adapter RNX-N150UBE Follow the InstallShield Wizard steps, and click Finish when done. Now your PC or notebook will restart automatically. Figure 2-4 Figure 2-5 User Manual...
-
Page 11: Chapter 3 Install Wireless Adapter
Wireless N Adapter RNX-N150UBE Chapter 3 Install Wireless Adapter The wireless USB Adapter supports up to 300 Mbps wireless connection. This USB adapter is fully compliant with the specifications defined in IEEE802.11n standard. It is designed to complement USB2.0 computers and supports Windows98SE/Me/2000/XP/Vista. - Page 12 Wireless N Adapter RNX-N150UBE User Manual Figure 3-2 Now you have completed the driver and hardware installation for the adapter.
-
Page 13: Chapter 4 System Configuration
Wireless N Adapter RNX-N150UBE Chapter 4 System Configuration Use the Wireless LAN Utility to check the link information, search for available wireless networks, or create profiles that hold different configuration settings. You can double-click the icon (Figure 4-1) on your desktop to run it. Another way to start the Configuration Utility is to click Start>Programs>... -
Page 14: Profile
Wireless N Adapter RNX-N150UBE Type: The type of the current wireless connection , Infrastructures or ad hoc Encryption: Current encryption. SSID: The unique name of the wireless network to which the wireless adapter is connecting. Signal Strength: The signal quality of the current connection. ... -
Page 15: Add
Wireless N Adapter RNX-N150UBE 4.2.1 Add Create a new Infrastructure mode profile If you want your wireless computers to communicate with other computers on your wired network via a wireless access point. Click the Add button to create a new infrastructure profile. -
Page 16: Remove
Wireless N Adapter RNX-N150UBE Choose the Network Authentication Mode and Data encryption from the drop-down menu. And import the network key. Then click OK button. You have successfully created a profile. 4.2.2 Remove Select a profile and click Remove button to delete this profile (Figure 4-7). Figure 4-6 Figure 4-7 User Manual... -
Page 17: Edit
Wireless N Adapter RNX-N150UBE 4.2.3 Edit Select a profile and click Edit button to edit this profile Modify the profile information according to your demand. 4.2.4 Duplicate Select a profile which you want to copy and then click Duplicate Figure 4-8 Figure 4-8 Figure 4-9 （Figure 4-10）... -
Page 18: Set Default
Wireless N Adapter RNX-N150UBE Import the new profile name in the popup window blank 4.2.5 Set default When you want to make one profile as a default wireless connection, you should select the profile and click Set default button. The wireless adapter will use this profile to connect to wireless network automatically when the utility running next time. -
Page 19: Available Network
Wireless N Adapter RNX-N150UBE 4.3 Available Network The Available Network tab displays a list of infrastructure and ad-hoc networks for available wireless connection Figure 4-12 (Figure 4-13) Figure 4-13 User Manual... -
Page 20: Status
Wireless N Adapter RNX-N150UBE User Manual Double-click the network to which you wish to connect. Figure 4-14 choose the Authorization modes and Encryption modes in the Refer to Figure 4-14 drop-down box. If the wireless network uses a Passphrase, enter the Passphrase in the Passphrase field. -
Page 21: Statistics
Wireless N Adapter RNX-N150UBE 4.5 Statistics The Statistics tab display the stat. value of current wireless connection Tx and Rx, you can click Reset button to reset value and restart to count. Figure 4-15 Figure 4-16 User Manual... -
Page 22: Wi-Fi Protect Setup
Wireless N Adapter RNX-N150UBE 4.6 Wi-Fi Protect Setup 4.6.1 Method 1 PIN Input Config (PIN) Input the wireless NIC’s PIN Code into AP and click Start PIN on the AP-Router WPS config page Figure 4-17 Figure 4-18 User Manual... - Page 23 Wireless N Adapter RNX-N150UBE Click Pin Input Config(PIN) Select one WPS AP which you want connect to and click Select button Please wait when the Figure 4-21 pop-up appear, the secure connection between AP and wireless NIC will be founded automatically. Figure 4-19 Figure 4-20 Figure 4-21...
-
Page 24: Method 2 Push Button
Wireless N Adapter RNX-N150UBE 4.6.2 Method 2 Push Button Click Push Button Config(PBC) on Wi-Fi Protect Setup page Click Start PBC on the AP-Router WPS config page Please wait when the Figure 4-21 pop-up appear, the secure connection between AP and wireless NIC will be founded automatically. Remark Figure 4-22 Figure 4-23... -
Page 25: Faq
Wireless N Adapter RNX-N150UBE If there is more than one AP on the PBC mode, there will be session overlap. Please using method 1 PIN Input Config(PIN) or wait for a while push the button again. This chapter provides solutions to problems that may occur during the installation and operation of the Wireless USB Adapter. - Page 26 If Security is enabled, make sure that the correct encryption keys are entered on both the Adapter and the access point. Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. User Manual...
