Summary of Contents for Rosewill RNX-N250UB

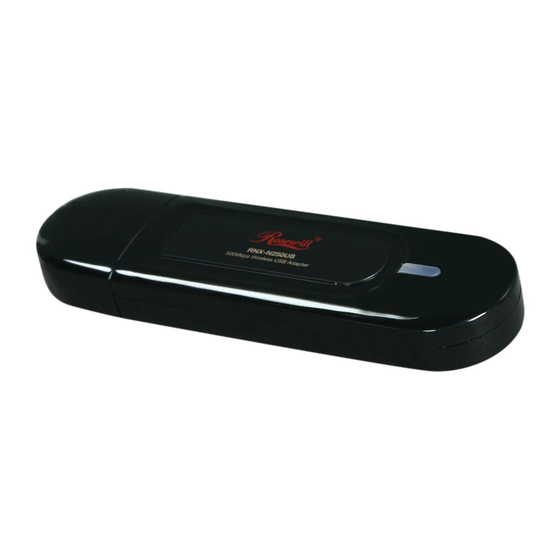

- Page 1 Wireless N Adapter RNX-N250UB Quick Installation Guide...
-
Page 2: About This Guide
Wireless N Adapter RNX-N250UB Quick Installation Guide About This Guide This Quick Installation Guide only provides you some basic configuration instructions. For more detailed information, please refer to the Wireless Network Adapter User Manual. Before you begin, you must check the following minimum system requirements ... -
Page 3: Before You Begin
Wireless N Adapter RNX-N250UB Quick Installation Guide Installation Guide Before You Begin Note: WiFi Alliance certification recommends WPA2 AES to be the security mechanism under 11N mode. System driver will automatically bring down wireless data rate to 54Mbps if other security method such as WEP or WPA is used under 11n mode. - Page 4 Quick Installation Guide Figure 2-1 2. Click on Windows Driver to start the install process. Once the setup begins you will see the InstallShield Wizard. Select Install driver and Rosewill WLAN Utility and then click on the Next> button. Figure 2-2...
-
Page 5: Installing The Drivers For Mac Os X
Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 2-3 4. The installation is complete. Click on the Finish button. 5. Carefully insert the USB adapter into the USB port. Windows will then detect and install the new hardware. Figure 2-4 6. - Page 6 Wireless N Adapter RNX-N250UB Quick Installation Guide 1. Insert the CD-ROM that was provided to you in this package. The setup should run automatically. If the setup does not run automatically, then you must manually select the setup file from the CD-ROM drive.
- Page 7 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 2-7 4. Click on the Continue button to configure the next step. Figure 2-8 5. The installation is complete. Click on the Restart button. 6. Carefully insert the USB adapter into the USB port. MAC OS X will then detect and install the new hardware.
-
Page 8: Uninstall The Drivers & Client Utility
USB adapter and its utility and repeat the installation procedure again. Follow the steps below in order to uninstall the client utility: 1. Click on Start > Rosewill Wireless > Uninstall Rosewill Wireless USB Adapter Figure 2-9 2. - Page 9 Wireless N Adapter RNX-N250UB Quick Installation Guide 4. The un-installation process is complete. Select Yes, I want to restart my computer now radio button and then click on the Finish button. Then remove the USB adapter. Figure 2-13...
-
Page 10: Connection Guide
Wireless N Adapter RNX-N250UB Quick Installation Guide Connection Guide Connecting with Microsoft Zero Configuration (XP only) After specifying the Microsoft Zero Configuration tool to configure your wireless network, right click on the icon on system tray as below. Select “View available wireless Networks” to specify your wireless network. - Page 11 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-3 If your wireless Network does not contains encryption, select the intended access point and click "Connect". Then click "Connect Anyway" like Figure Figure 3-4 Once completed, you should see like Figure 3-5 as your computer is now...
-
Page 12: Connecting Through Rosewill Utility
AP will be shown with a blue icon beside it, as shown in Figure 3-7. You can use the advanced tab to configure other advanced features provided by Rosewill's wireless NIC. For details on configuring the advanced features, please check with Chapter 5. - Page 13 Figure 3-7 Steps to add wireless signal with Rosewill Utility for one time use This section will lead you to link your wireless signal with your RNX-N250UB. Please follow the Figure 3-8 in adding the signal. Click“Rescan＂: Click on Rescan to search for all wireless signals near you.
- Page 14 Steps to add wireless signal into Profile and keep for future record Add to profile will help to store your wireless signal’s information with your RNX-N250UB. Please follow the Figure 3-9 to add the signal into your profile so you don’t have to enter them in the future.
- Page 15 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-9 In Auth.\Encry., First select Authentication of your wireless signal, Like Figure 3-10 Enter your Wireless Network’s password. Click OK to complete the process. Figure 3-10 Note: you could also add a new profile quickly by selecting an available network in the “Network”...
-
Page 16: Connecting With Mac Os
Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-11 In Auth.\Encry. Like Figure 3-12 First select Authentication of your wireless signal. This should automatically provided to you when select your desired SSID. Enter your password. Click OK to complete the process. - Page 17 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-13 Upon opening the Wireless Utility program, first click open “Site Survey” Select your desired AP signal under the AP List. You can further search the signal by clicking “RESCAN” After selecting the AP signal, you can select either “CONNECT” or “ADD PROFILE”...
- Page 18 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-14 Once click Profile, you will be prompt to ask for your personal settings such as “System Configuration” and “Authentication & Security”. You have the choice to select “Authentication & Security” and enter the password for connecting to the signal.
- Page 19 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-15 For WEP, Select Open or Shared from the Authentication Type‘s drop-down list. Then select WEP from Encryption’s drop-down list. WEP Key: Type a character string into the field. ...
- Page 20 Wireless N Adapter RNX-N250UB Quick Installation Guide Figure 3-16 For WPA or WPA2, please select from Authentication’s drop-down list. Select TKIP or AES from Encryption’s drop-down list. WPA Preshared key: Enter a pass phrase which is between 8 and 32 characters long.
