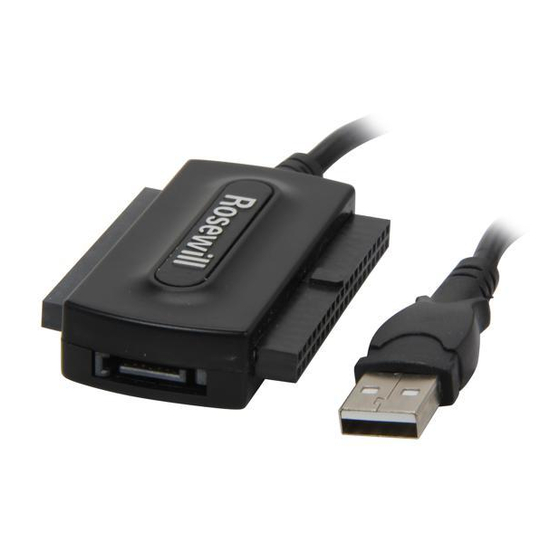

- Page 1 IDE 3-in-1 (5.25”, 3.5”, 2.5”) to USB 2.0 Cable Converter Adapter RCW607 User Manual...
-
Page 2: Included In The Kit
IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 IDE 3-in-1 (5.25”, 3.5”, 2.5”)to USB 2.0 Cable Converter Adapter Included in the Kit The USB to IDE Cable Adapter Complete Kit includes the items listed below. 1. USB to IDE Cable Adapter The Cable Adapter is powered from USB bus. - Page 3 IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 User Manual drive will automatically mount itself. That being said, this is not true for all Operating Systems and a good knowledge of how your OS works is needed. In some systems a drive utility is needed to format or partition the mechanism and or mount the drive.
-
Page 4: Using The Power Supply
IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 User Manual Using the Power Supply The IDE Drive Power connector plugs into any standard IDE, ATAPI, ATA, or SCSI type of drive mechanism. Power should only be supplied to the Drive Mechanism after the Data Cable has been connected to the Cable Adapter. -
Page 5: Package Contents
IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 Package Contents RCW-607 User manual X Power cord X Power adapter X Driver disc X Silicon protection case for 2.5” hard drive X Silicon protection case for 3.5” hard drive X Installation . - Page 6 IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 User Manual c. 5.25" ATAPI device ATAPI device 2. Connect the power adapter set. 3. Plug the power adapter to your ATA/ATAPI device. Please check a to d as below. a. 3.5" ATA...
- Page 7 IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 User Manual b. 2.5" ATA There is no additional power needed for 2.5” hard drive. c. 5.25" ATAPI 4. Plug the power adapter to power source and turn on the power...
-
Page 8: Troubleshooting
IDE 3-in-1 (5.25”,3.5”,2.5”)to USB 2.0 Cable Converter Adapter RCW607 5. Plug the USB2.0 cable to PC and wait for PC auto-detection. Driver is needed only in old system such as Windows 98. Please inset the driver disk when your system can’t complete the installation process. - Page 9 Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com/ for complete warranty information and future support for your product. If you have any question while using our products, please feel free to contact us at feedback@rosewill.com. User Manual...
- Page 10 www.rosewill.com...
