MyTek Stereo 192 ADC User Manual page 4

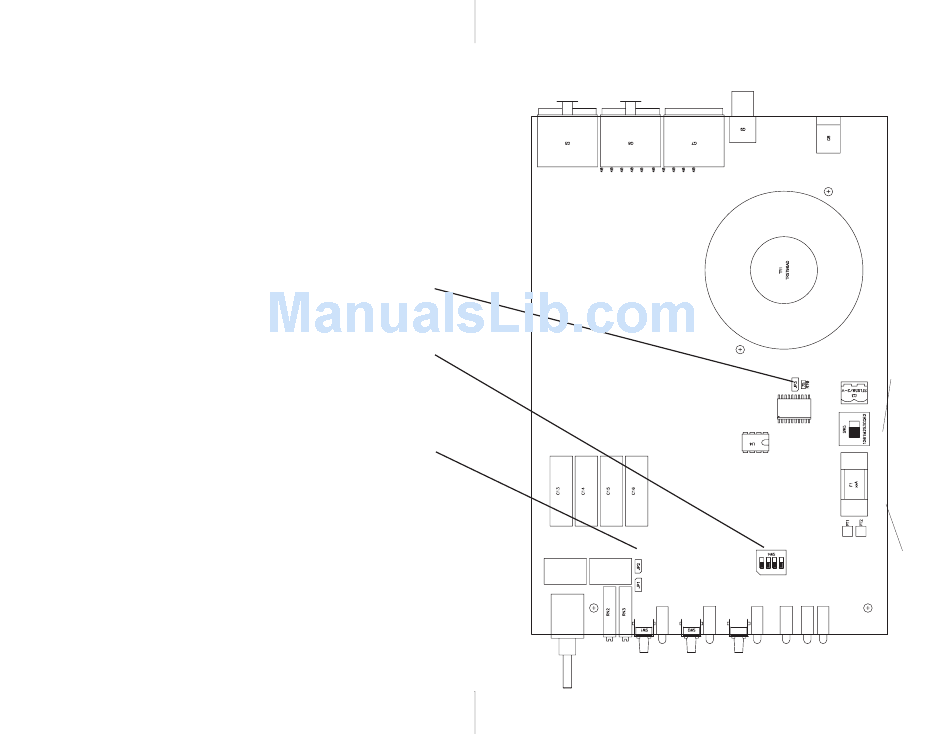

Stereo192ADC internal trimpots and jumper assignments
(remove top cover to access)
Jumper JP5: Wordclock input 75 Ohm termination.
Connect this jumper when Stereo96 ADC is the last destination in a chain fed
by external wordclock source and the cable is long (above 6ft). For short cables
and wordclock sources with unknown drive capability JP5 should be left
unconnected (unterminated) (retain the jumper on one pin only).
DIPSWITCH SW4 : Sets the clock mode on BNC in/out
SW1- "ON", wordclock =FS/2 for 88.2 and 96k (FS for 44.1 and 48k)
SW1- "OFF", wordclock =FS for all sampling rates
SW2- "ON", output and input becomes Superclock=256 x FS (for use with
Protools(R) Mix systems and 44.1 and 48k only)
Jumpers J1 and J2- Set the input to u
be fed between pin 2 (signal) and pin 1 (shield) of the input XLR. Pin 3 must be
left unconnected. You can use a standard RCA<>XLR adapter, but make sure
connection to pin 3 is cut inside the adapter. In this mode the sensitivity of the
input stage is fixed and cannot be adjusted within the converter (adjust level
prior to feeding the converter). This mode is recommended only in situations
when no professional balanced signal source is available. This also works with
-10dBV (consumer level).
nbalanced. The unbalanced signal should
Stereo192ADC internal trimpots and jumper assignments
5
(remove top cover to access)
115VAC/230VAC
power switch
T1 Amp 20mm
Slow Blow fuse
6
