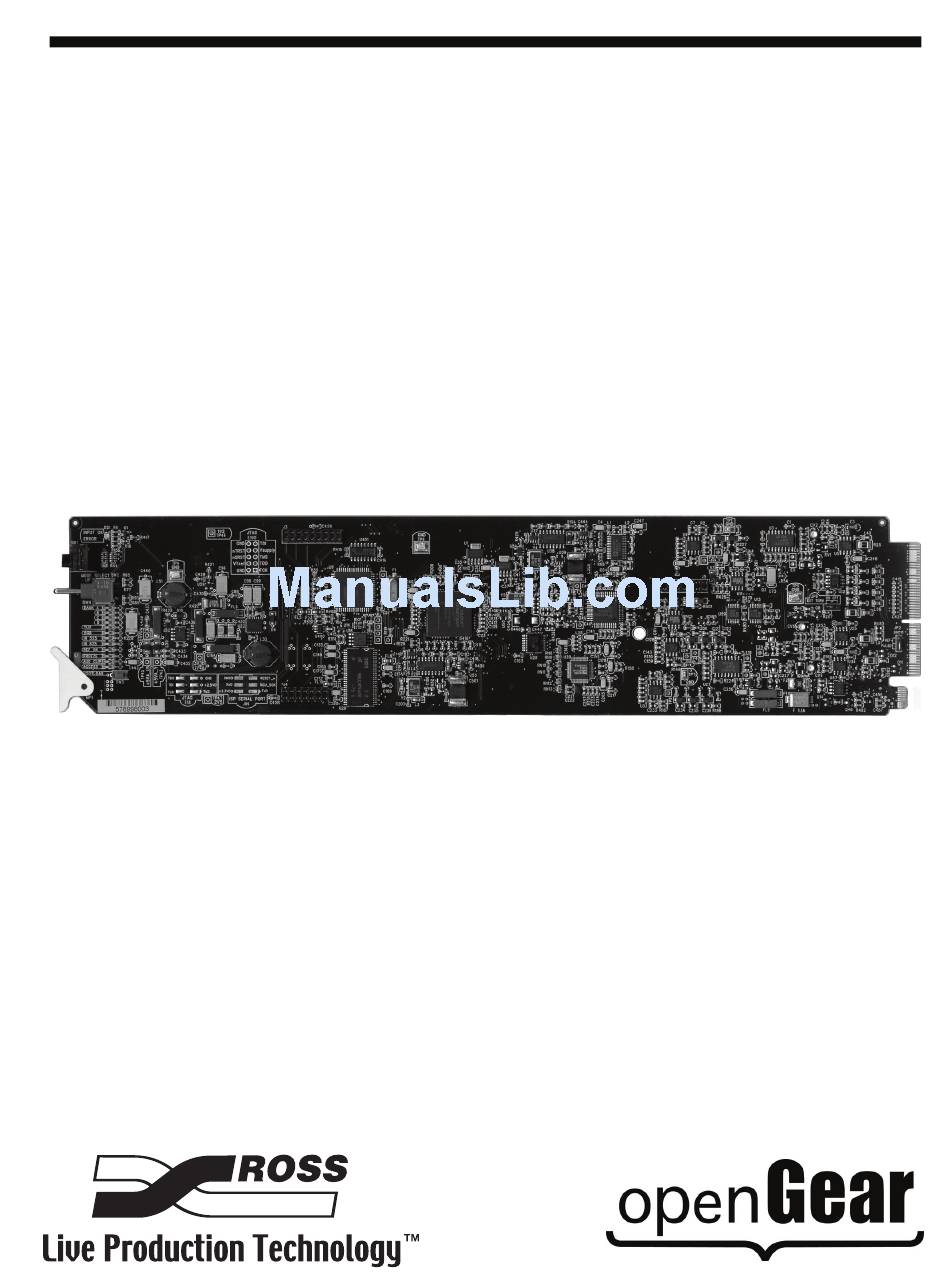

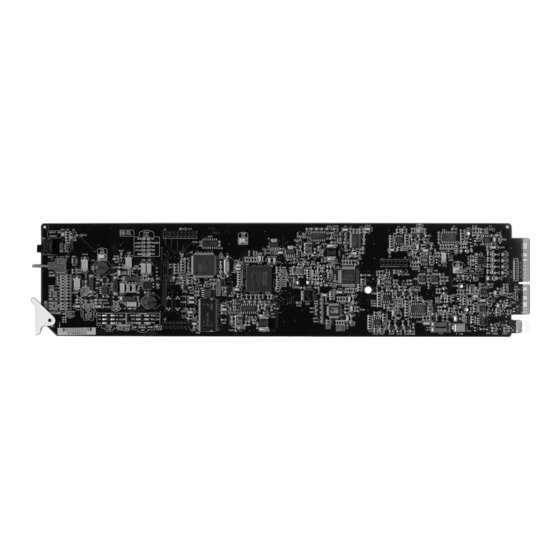

- Page 1 Ross Video Limited ADC-8733A (-S, -C) Analog Component to SDI Video Converter User Manual...
- Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Important Safety Instructions
Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Products may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. - Page 4 Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003.
- Page 5 The crossed-out wheeled bin symbol invites you to use these systems. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You can also contact Ross Video for more information on the environmental performances of our products.
- Page 6 Company Address Ross Video Limited Ross Video Incorporated 8 John Street P.O. Box 880 Iroquois, Ontario Ogdensburg, New York Canada, K0E 1K0 USA 13669-0880 General Business Office: (+1) 613 • 652 • 4886 Fax: (+1) 613 • 652 • 4425 Technical Support: (+1) 613 •...
-
Page 7: Table Of Contents
Contents Introduction Overview..........................1-2 Features........................1-3 Functional Block Diagram....................1-4 Documentation Terms and Conventions................1-5 Installation Before You Begin ........................ 2-2 Static Discharge..................... 2-2 Unpacking......................2-2 Installing the ADC-8733A....................2-3 Rear Modules for the DFR-8310 Series Frames ........... 2-3 Rear Modules for the DFR-8321 Series Frames ........... 2-3 Installing a Rear Module .................. - Page 8 Audio Menus ......................4-8 Alarms Menus......................4-9 Heads-up Display Menus ....................4-10 Overview......................4-10 Bank A Menus ..................... 4-11 Bank A Menu Parameters ..................4-12 Bank B Menus ..................... 4-13 Bank B Menu Parameters ..................4-14 Bank C Menus ..................... 4-15 Bank C Menu Parameters ..................
-
Page 9: Introduction
Congratulations on choosing an openGear ADC-8733A Analog Component to SDI Video Converter. Your ADC-8733A is part of a full line of Digital Products within the openGear Terminal Equipment family of products, backed by Ross Video’s experience in engineering and design expertise since 1974. -
Page 10: Overview
Overview The ADC-8733A is the perfect solution for converting analog component (YUV/RGB) sources such as VTRs, cameras, and character generators for use in the digital realm. The component YUV/RGB video signal, with or without setup, is converted to four SD-SDI (SMPTE-259M) outputs with the highest level of precision. -
Page 11: Features
Features The following features make the ADC-8733A the most flexible, high-quality decoding card for your analog to digital conversion requirements: • YUV input from Betacam, MII and SMPTE/EBU formats • RGB input from NTSC-related, MII and SMPTE EBU supported • Four serial digital outputs •... -
Page 12: Functional Block Diagram
Functional Block Diagram This section provides a functional block diagram that outlines the workflow of the ADC-8733A. Figure 1.1 ADC-8733A-A — Simplified Block Diagram 1–4 • Introduction ADC-8733A User Manual (Iss. 02B) -
Page 13: Documentation Terms And Conventions
Documentation Terms and Conventions The following terms and conventions are used throughout this manual: • “Frame” refers to DFR-8300 series frame that houses the ADC-8733A card, as well as any openGear frames. • All references to the DFR-8300 series frame also includes all version of the 10-slot (DFR-8310 series) and 20-slot (DFR-8321 series) frames and any available options unless otherwise noted. - Page 14 1–6 • Introduction ADC-8733A User Manual (Iss. 02B)
-
Page 15: Installation
Installation In This Chapter This chapter provides instructions for installing the Rear Module(s) for the ADC-8733A, installing the card into the frame, cabling details, and updating the card software. The following topics are discussed: • Before You Begin • Installing the ADC-8733A •... -
Page 16: Before You Begin
Unpacking Unpack each ADC-8733A you received from the shipping container and ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. 2–2 • Installation... -
Page 17: Installing The Adc-8733A
Installing the ADC-8733A This section outlines how to install a Rear Module in a DFR-8300 series frame. The same procedure applies regardless of the frame or card type. However, the specific Rear Module you need to install depends on the frame you are using. Note —... -
Page 18: Installing The Adc-8733A
Installing the ADC-8733A This section outlines how to install the ADC-8733A in a DFR-8300 series frame. If the ADC-8733A is to be installed in any compatible frame other than a Ross Video product, refer to the frame manufacturer’s manual for specific instructions. -
Page 19: Cabling For The Adc-8733A
Cabling for the ADC-8733A This section provides information for connecting cables to the installed Rear Modules on the DFR-8300 series frames. Connect the input and output cables according to the following sections. DFR-8310 Series Frame Cabling Overview In the DFR-8310 series frames, the ADC-8733A is used with the following Rear Modules: •... -
Page 20: Video Cabling For The Adc-8733A
Figure 2.4 Cable Connections for the R2S-8733 Rear Module Video Cabling for the ADC-8733A Use the following procedure to connect the video signal cables to the ADC-8733A: 1. Connect the input signal BNC 1 (G/Y In), BNC 7 (B/U In) and BNC 9 (R/V In). If you are using the R2S-8733 Split Rear Module, BNC 2 can be used depending on the positioning of the ADC-8733A in the DFR-8321 series frame. -
Page 21: Audio Cabling For The Adc-8733A
Audio Cabling for the ADC-8733A The R1C-8733 and R2C-8733 Rear Modules provide four audio terminal blocks with removable connectors for Audio In 1, 2, 3, and 4. Figure 2.3 Each connector has locations for the positive, negative, and grounded wires of a balanced analog audio cable. Use the following procedure to wire the analog audio for the R1C-8733 and R2C-8733: 1. -
Page 22: Software Upgrades For The Adc-8733A
3. Select the Setup tab in the Device View to display the setup information. 4. Make a note of the Request Code in the License Key field. 5. Contact Ross Video Technical Support using the information found in the section “Contact Us”. - Page 23 5. Click Open to display a confirmation dialog box. This dialog box displays the selected upload file name, type, size, and the file creation date. 6. From the Confirmation dialog box, select one of the following: Cancel — Select this option to cancel the upload of the file and return to the •...
- Page 24 2–10 • Installation ADC-8733A User Manual (Iss. 02B)
-
Page 25: User Controls
User Controls In This Chapter This chapter provides a general overview of the user controls available on the ADC-8733A. The following topics are discussed: • Card Overview • Control and Monitoring Features ADC-8733A User Manual (Iss. 02B) User Controls • 3–1... -
Page 26: Card Overview
Card Overview This section provides a general overview of the ADC-8733A components and how to set up the jumpers on the card. This setup is performed before installing the card in the frame, but may be repeated as required. For information on the LEDs available on the card-edge, refer to the section ““Control and Monitoring Features”... -
Page 27: Control And Monitoring Features
Control and Monitoring Features This section provides information on the jumpers, buttons and LEDs for the ADC-8733A. Refer to Figure 3.2 for the location of the LEDs. Figure 3.2 ADC-8733A Card-edge Controls Status and Selection LEDs on the ADC-8733A The front-edge of the ADC-8733A has LED indicators for the cooling module fan, alarm, and communication activity. -
Page 28: Tracking Pulse Output
Table 3.1 LEDs on the ADC-8733A Color Display and Description When lit red, this LED indicates one of the following errors: • a valid input signal is not present • the input signal does not match the forced input standard OK/ERROR •... -
Page 29: Notes On Timing Modes
Notes on Timing Modes This section briefly summarizes the Timing Modes available on the ADC-8733A. Line Delay (ADC-8733A and ADC-8733A) This mode uses the input timing signal to generate the output timing. There is a constant delay between the input and the output. The reference is not used. This is useful in applications where a constant delay through the card is required. -
Page 30: Frame Delay (Adc-8733A-S Only)
Frame Delay (ADC-8733A-S only) The Frame Delay mode is identical to the Line Delay mode, except that the output timing can be delayed by up to a full frame of video. By using almost a full frame of delay, it is possible to set apparent negative timing, making it look like the output occurs before the input. -
Page 31: Menus
Menus In This Chapter This chapter provides a summary of the menus available for the ADC-8733A. The following topics are discussed: • SNMP Monitoring and Control • DashBoard Menus for the ADC-8733A • Heads-up Display Menus Note — For each supported line standard (525 and 625), the ADC-8733A stores the default and user-adjusted video settings independently in non-volatile memory. -
Page 32: Snmp Monitoring And Control
SNMP Monitoring and Control The Network Controller Card in the DFR-8300 series frame provides optional support for remote monitoring of your frame and the using Simple Network Management Protocol (SNMP), which is compatible with many third-party monitoring and control tools. Refer to your ADC-8733A Management Information Base (MIB) file for a breakdown of SNMP controls on this card. -
Page 33: Dashboard Menus For The Adc-8733A
The Status tabs provide read-only information such as software revision issue, fan door status, and power consumption. Table 4.1 Status Tab Items Tab Title Item Parameters Description Product ADC-8733A Supplier Ross Video Ltd. Board Rev Indicates the board revision level Product (Read-only) Serial Number ###### Indicates the card serial number Software Rev ##.##... -
Page 34: Setup Menus
Table 4.1 Status Tab Items Tab Title Item Parameters Description Indicates that the card is functioning Green normally and no anomalies are detected. Refer to the section “Signal Status” Signal Status The reference does not match the input standard or an error has occurred. Refer to the section “Signal Status”... -
Page 35: Timing Menus
Table 4.2 Setup Menu Items Tab Title Item Parameters Description Disables the NTSC setup removal Setup Enables the NTSC setup removal All menu options are unlocked and can be Unlocked edited. Edit Permission Setup All menu items, except this one, are Locked locked and read-only. -
Page 36: Output Menus
Table 4.3 Timing Menu Items Tab Title Item Parameters Description 0 to 524 Adjusts the vertical delay Vertical Delay Timing 0 to 624 Reset Resets the delay Minimum Delay This option is only available for the ADC-8733A-S. This value range is available when using a 525-line standard. This value range is available when using a 625-line standard. -
Page 37: Framing Menus
Framing Menus Table 4.6 summarizes the Framing Menu options available in DashBoard for the ADC-8733A. Table 4.5 Framing Menu Items Tab Title Item Parameters Description Pass Through Pass the vertical interval Vertical Interval Blanking Blank Blank the vertical interval 19 to 21 Selects the line on which the vertical Vertical Interval End interval ends... -
Page 38: Audio Menus
Audio Menus Table 4.7 summarizes the Proc Amp Menu options available in DashBoard for the ADC-8733A. Table 4.7 Audio Menu Items Tab Title Item Parameters Description Audio Input Gain Adjusts the Audio Gain for each input of -10.0 to +10.0 the AAM-8581 (dB) Indicates that audio is present above the... -
Page 39: Alarms Menus
Alarms Menus Table 4.8 summarizes the Alarms Menu options available in DashBoard for the ADC-8733A. Table 4.8 Alarms Menu Items Tab Title Item Parameters Description Signal Status parameter in the Signal tab Ignore ignores loss of reference Loss of Input Timing Signal Status parameter in the Signal tab Notify reports loss of reference when they occur... -
Page 40: Heads-Up Display Menus
Heads-up Display Menus This section summarizes the Bank Menu system of the Heads-Up Display and how to navigate the menus and options using the SW1 and SW2 switches on the ADC-8733A card-edge. A list of the available menus and parameters is provided in the following tables. Note that the tables list the functions in numerical order based on the value selected using SW1. -
Page 41: Bank A Menus
Bank A Menus This section summarizes the functions available on Bank A. Table 4.9 Bank A Menu and Parameters Table Menu Menu Parameters HUD Values Select – Bank Select BANK – – + (h) Heads-Up Display HEADS UP – YUV BETA YUV BETA YUV MII YUV MII... -
Page 42: Bank A Menu Parameters
Table 4.9 Bank A Menu and Parameters Table Menu Menu Parameters HUD Values Select + (h) Locked LOCKED Switch Access ACCESS – (h) Unlocked UNLOCKED This value is only available when using a 525-line standard. Bank A Menu Parameters This section briefly summarizes the menu parameters available in Bank A. 1- Heads-Up Display The Heads-Up Display (HUD) is used to provide visual feedback to the user while altering parameters with the card-edge controls. -
Page 43: Bank B Menus
A - Chroma Gain This menu allows you to adjust the Chroma (CR and CB) portion of the output signal. The range is 50% to 150%. This menu uses ballistics. C - C Gain Use this menu to adjust the CB portion of the output signal. The range is 50% to 150%. This menu uses ballistics. -
Page 44: Bank B Menu Parameters
Table 4.10 Bank B Menu and Parameters Table Menu Menu Parameters HUD Values Select Clip CLIP SUPER BLK SuperBlack – Pass Through PASS Line 20 V BIT LOCK Vertical Bit Lock – Line 10 H CROP Horizontal Crop – Increase CROP LEFT (##) Crop Left... -
Page 45: Bank C Menus
5 - SuperBlack Use this menu to clip SuperBlack values from the input video signal as follows: • Allow the input’s active video signal to pass through unaltered • Clip any value below black 6 - Vertical Bit Lock Some types of equipment require that the transition from vertical interval to active video to be locked to either line 10 or line 20. -
Page 46: Bank C Menu Parameters
Table 4.11 Bank C Menu and Parameters Table Menu Menu Parameters HUD Values Select Increase V DELAY Vertical Delay – Decrease Zero Vertical Reset V RESET ZERO – No Action Zero Minimum Delay MIN DEL ZERO – No Action Frame FRAME Field 2 FRZ MODE... -
Page 47: Freeze Mode
• If you cross over the maximum Horizontal Delay, the value returns to 0 (zero) and the Vertical Delay value increments by 1. • Crossing the minimum delay returns the Horizontal Delay value to 1715 (525-line standard) or 1725 (625-line standard) and decrements the Vertical Delay value by 1. •... -
Page 48: Bank D Menus
The following options are available: • Black — The output is set to SD-SDI black. The Timing Mode must be set to Frame Sync and the reference must be valid. • No Output —No signal is present on the output. •... -
Page 49: Bank D Menu Parameters
Table 4.12 Bank D Menu and Parameters Table Menu Menu Parameters HUD Values Select MUTE Increase CHANNEL 2 Channel 2 Source – Decrease MUTE Increase CHANNEL 3 Channel 3 Source – Decrease MUTE Increase CHANNEL 4 Channel 4 Source – Decrease Increase IN 1 GAIN... -
Page 50: Audio Delay
• OFF — The audio embedding feature is disabled. 2 - Embed Group Select Use this menu to specify which group to embed the audio into (Group 1 to 4). 3 - Audio Delay This menu controls the amount of additional delay to be added to the input audio before it is embedded. -
Page 51: Specifications
Specifications In This Chapter This chapter provides technical specifications on the ADC-8733A. Note that specifications are subject to change without notice. The following topics are discussed: • ADC-8733A Technical Specifications ADC-8733A User Manual (Iss. 02B) Specifications • 5–1... -
Page 52: Adc-8733A Technical Specifications
ADC-8733A Technical Specifications This section provides the technical specifications for the ADC-8733A. Table 5.1 ADC-8733A Technical Specifications Category Parameter Specification Signal Standards Accepted YUV (SMPTE, BETA, and MII) RGB (SMPTE, NTSC-Rel, MII) Number of Inputs Component Video Input Component Video 1V p-p nominal Impedance 75ohm terminating... - Page 53 Table 5.1 ADC-8733A Technical Specifications Category Parameter Specification Minimum Delay in 525-line standard: 1 Line + 3.3µs Minimum Delay Line/Frame Delay 625-line standard: 1 Line + 3.6µs Mode ADC-8733A up to 2 video lines Tracking Delay Pulse ADC-8733A-S up to 2 video frames Total without Audio Option 4.5W Power...
- Page 54 5–4 • Specifications ADC-8733A User Manual (Iss. 02B)
-
Page 55: Service Information
Service Information In This Chapter This chapter contains the following sections: • Troubleshooting Checklist • Warranty and Repair Policy ADC-8733A User Manual (Iss. 02B) Service Information • 6–1... -
Page 56: Troubleshooting Checklist
Bootload Button In the unlikely event of a complete card failure, you may be instructed by a Ross Technical Support specialist to perform a complete software reload on the ADC-8733A. -
Page 57: Warranty And Repair Policy
In the event that your ADC-8733A proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics. - Page 58 6–4 • Service Information ADC-8733A User Manual (Iss. 02B)
- Page 59 Notes:...
- Page 60 P.O. Box 880, Ross Video Incorporated Ogdensburg, New York, USA 13669-0880 Visit Us Please visit us at our website for: • Company information • Related products and full product lines • On-line catalog • News • Testimonials Ross Video Part Number: 8733ADR-004-02B...
