Ross ADC-8032A User Manual

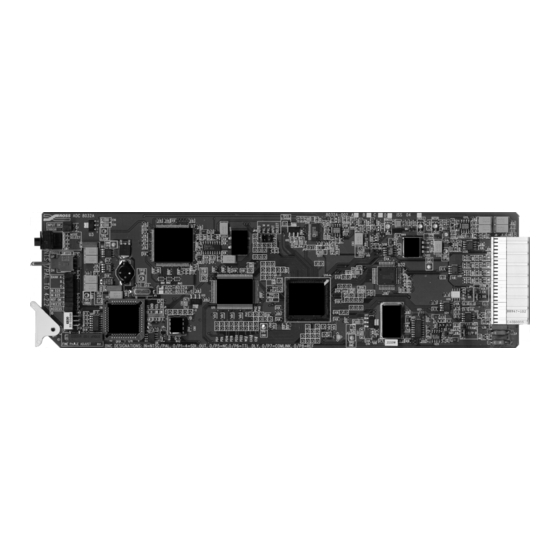

Analog composite to sdi decoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

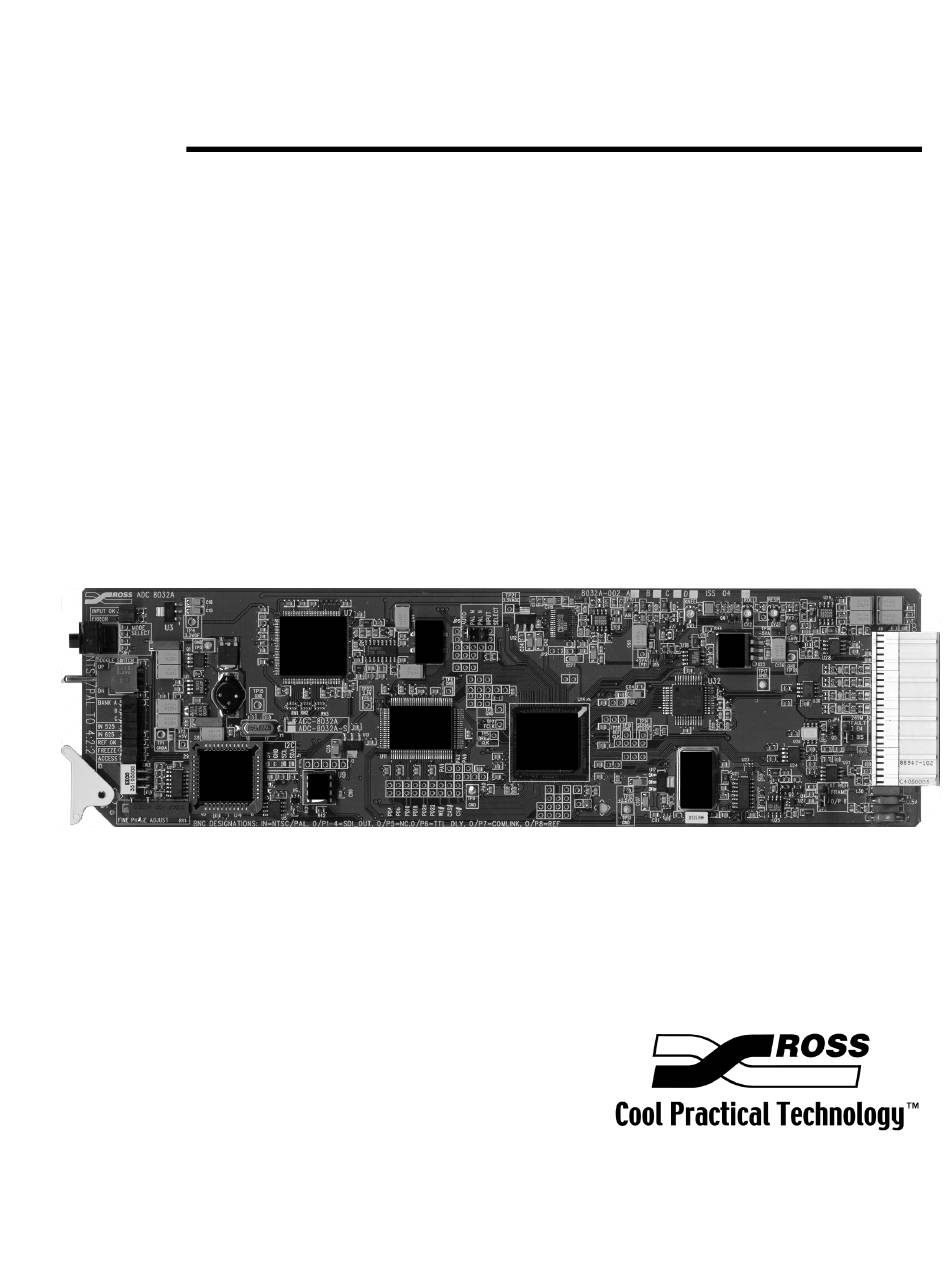

Ross Video Limited
ADC-8032A
ADC-8032A-S
Analog Composite
to SDI Decoder
User Manual
Ross Part Number: 8032AD-004
Issue: 04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADC-8032A and is the answer not in the manual?

Questions and answers

Related Manuals for Ross ADC-8032A

Summary of Contents for Ross ADC-8032A

  • Page 1 Ross Video Limited ADC-8032A ADC-8032A-S Analog Composite to SDI Decoder User Manual Ross Part Number: 8032AD-004 Issue: 04...
  • Page 2 The information contained in this User Manual is subject to change without notice or obligation. Copyright © 2003 Ross Video Limited. All rights reserved. Contents of this publication may not be reproduced in any form without the written permission of Ross Video Limited. Reproduction or reverse engineering of copyrighted software is prohibited. Notice The material in this manual is furnished for informational use only.
  • Page 3 Important Regulatory and Safety Notices to Service Personnel Please review the following material to avoid injury to personnel and to prevent product damage. • All product servicing should be carried out by qualified service personnel. • This product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
  • Page 4 Power Cord and Supply Grounding Requirements The safe operation of this product requires that a protective earth connection be provided. This protective earth is provided by the grounding conductor in the equipment’s supply cord. To reduce the risk of electrical shock to operator and service personnel, this ground conductor must be connected to an earthed ground.

  • Page 5: Table Of Contents

    Using Bank B Functions..................4-11 Using Bank C Functions..................4-13 Timing Modes ......................4-15 SMPTE 269M Fault Reporting In This Chapter ........................5-1 Overview ........................5-1 Jumper Setup ......................5-2 Frame Connections....................5-2 Details........................5-2 Comlink In This Chapter ........................6-1 Contents • i ADC-8032A User Manual (Iss. 04)
  • Page 6 Connection and Configuration ................6-3 Specifications In This Chapter ........................7-1 Technical Specifications..................7-2 Ordering Information In This Chapter ........................8-1 ADC-8032A and Related Products ................. 8-1 Warranty and Repair Policy ..................8-2 ii • Contents ADC-8032A User Manual (Iss. 04)

  • Page 7: Introduction

    Congratulations on choosing the Ross Video ADC-8032A Analog Composite to SDI Decoder. You have purchased a powerful, versatile, and advanced decoder. The ADC-8032A is part of a full line of Digital Conversion Products within the RossGear Terminal Equipment family of products, backed by Ross Video’s experience in engineering and design expertise since 1974.

  • Page 8: Functional Block Diagram

    The decoder uses a very sophisticated 5-line comb filter with advanced adaptive control algorithms. To make configuration simple and easy, the ADC-8032A offers a Heads-Up Display mode for most board-level adjustments. This display is especially convenient during setup, and for programming several ADC-8032A cards with identical configurations.

  • Page 9: Features

    Features The following features make the ADC-8032A Analog Composite to SDI Decoder the most flexible, high-quality decoding card for your analog to digital conversion requirements: • 10-bit decoding with 5-line adaptive comb filter • 12-bit analog to digital conversion •...

  • Page 10: Documentation Terms

    DFR-8104A-C and DFR-8110A-C versions with the cooling fan option. See the respective User Manuals for details. • “Operator” and “User” both refer to the person who uses the ADC-8032A. • “Board”, “Card”, and “Module” all refer to the ADC-8032A decoder board itself, including all components and switches.

  • Page 11: Installation And Setup

    Unpacking Unpack each ADC-8032A you received from the shipping container, and check the contents against the packing list to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly.

  • Page 12: Jumper Setup

    Jumper Setup Use the following steps to set up ADC-8032A jumpers. These steps are performed before installing the unit in the frame, but may be repeated as required. Refer to Figure 2 for card jumper locations. Figure 2. ADC-8032A Jumper Locations 1.

  • Page 13: Board Installation

    Board Installation Use the following steps to install the ADC-8032A in a RossGear 8000 series digital distribution frame: 1. Refer to the User Manual of the RossGear 8000 series frame, to ensure that the frame is properly installed according to instructions. If this module is to be installed in any compatible frame other than a Ross Video product, refer to the frame manufacturer’s manual for specific instructions.
  • Page 14 REF BNC on the frame (see Figure 6 in chapter 5). Be sure that Jumper JP3 is set to pins 1-2 (Frame). 2-4 • Installation and Setup ADC-8032A User Manual (Iss. 04)

  • Page 15: User Controls

    • Troubleshooting Checklist Note The ADC-8032A uses card edge controls for changing operational parameters. The card defaults with switch access set to the locked position. Refer to the “Bank A - F: Lock/Unlock Switch Access” section in Chapter 4, “Using Banks”, before attempting to make any adjustments.
  • Page 16 See Chapter 4, “Using Banks” for complete details. SW2 – Mode Select Switch The SW2 Mode Select switch is used to enable, disable, and select specific ADC-8032A functional modes, or configurations, within the operational function menu (selected first with the SW1 Function Select switch).
  • Page 17 When lit, this LED indicates that any freeze mode is enabled (both models). When lit, this LED indicates that Switch Access is unlocked. See Bank A Functions, ACCESS Yellow Mode Select position F. All changes made with Mode Select will affect ADC-8032A operation. User Controls • 3-3 ADC-8032A User Manual (Iss. 04)

  • Page 18: Troubleshooting Checklist

    Routine maintenance to this RossGear product is not required. In the event of problems with your ADC-8032A, the following basic troubleshooting checklist may help identify the source of the problem. If the module still does not appear to be working properly after checking all possible causes, please contact your Ross Video products distributor, or the Ross Video Technical Support department at the numbers listed under the “Contact Us”...

  • Page 19: Using Banks

    Using Bank C Functions • Timing Modes General Operating Rules Please note the following important operating rules for the ADC-8032A: • Whenever the card is powered up, it defaults to Bank A, and the Bank A LED is lit. Note The card defaults with switch access set to the locked position.

  • Page 20: Selecting Banks

    Select switches in conjunction with the Heads-Up Display. Ensure that the Heads-Up Display is enabled (Bank A, Position 1). Note that the display is superimposed over all ADC-8032A video outputs. 3. Terminal Display - Adjustments are made using Function Select and Mode Select switches in conjunction with the Comlink Display.
  • Page 21 Bank A, B, and C Function Tables This section presents a detailed charting of all board-level ADC-8032A functions in the following three tables. The operational usage is explained in the next section. Table 3. Function Select: Bank A Function Table...
  • Page 22 Note: Functions, as listed in the Function column as being stored in memory, always power up in the last known state. All other items, however, power up in the default state, regardless of their previous state. Indicates default PAL/PAL-N setting. ** Indicates default NTSC/PAL-M setting. Stored in memory 4-4 • Using Banks ADC-8032A User Manual (Iss. 04)
  • Page 23 All other items, however, power up in the default state, regardless of their previous state. Only available on ADC-8032A-S. ** When Freeze mode is activated the freeze will affect either field 1, field 2, or the entire frame. Stored in memory Using Banks • 4-5 ADC-8032A User Manual (Iss. 04)

  • Page 24: Using Bank A Functions

    SW1 Function Select SW2 Mode Select Heads-Up Display Label Default + (h) HEADS UP Note The display is superimposed over all ADC-8032A video outputs. Do not use this feature with “on-air” signals. 4-6 • Using Banks ADC-8032A User Manual (Iss. 04)
  • Page 25 Bank A-8: Video Gain Use the following steps to adjust the ADC-8032A’s output video gain: 1. Select Bank A, and rotate Function Select to position 8. 2. Adjust video gain up or down as required: • Toggle Mode Select up to increase video gain.
  • Page 26 Bank A-A: Chroma Gain Use the following steps to adjust the ADC-8032A’s output chroma gain: 1. Select Bank A, and rotate Function Select to position A. 2. Adjust chroma gain up or down as required: • Toggle Mode Select up to increase chroma gain.
  • Page 27 Bank A-C: C Gain Use the following steps to adjust the ADC-8032A’s output C gain: 1. Select Bank A, and rotate Function Select to position C. 2. Adjust C Gain up or down as required: • Toggle Mode Select up to increase C gain.
  • Page 28 Hold Mode Select down for one second to unlock switch access. Adjustments can now be made. The ACCESS LED is on. Bank SW1 Function Select SW2 Mode Select Heads-Up Display Label Default Locked ACCESS LOCKED LOCKED - (h) Unlocked UNLOCKED 4-10 • Using Banks ADC-8032A User Manual (Iss. 04)

  • Page 29: Using Bank B Functions

    Toggle Mode Select up to blank the vertical interval. • Toggle Mode Select down to pass the vertical interval. Bank SW1 Function Select SW2 Mode Select Heads-Up Display Label Default Blank VI BLANK BLANK PASS Pass Through PASS Using Banks • 4-11 ADC-8032A User Manual (Iss. 04)
  • Page 30 Bank B-4: VI End The ADC-8032A has a programmable Vertical Interval function that allows you to set where the VI ends and the first line of active video begins. Everything up to (but not including) the first line of active video is considered part of the Vertical Interval and will be affected by this function. In 525- line mode, signals in the vertical interval are passed without setup even if setup is enabled.

  • Page 31: Using Bank C Functions

    There are two versions of the ADC-8032A available. The standard ADC-8032A can be timed within one line in 37ns increments. The ADC-8032A-S with the frame synchronizer can be timed within one video frame in 37ns increments. The fine phase potentiometer (RV1) is provided for sub-pixel adjustment.
  • Page 32 This is very useful in that all sources to the ADC-8032A (for example, from a routing switcher) only need to be lined up to the same line.

  • Page 33: Timing Modes

    • Output phasing is infinite over a full frame, and the delay through the card varies from the minimum processing delay up to the minimum processing delay plus a full frame. Using Banks • 4-15 ADC-8032A User Manual (Iss. 04)
  • Page 34 Turning the pot clockwise increases delay, whereas turning it counter-clockwise decreases the delay. The range is approximately 45 ns, which is slightly longer than the step size of the H Delay function. 4-16 • Using Banks ADC-8032A User Manual (Iss. 04)
  • Page 35 2. Reset V Delay as required: • Toggle Mode Select up to reset V Delay to 0. Bank SW1 Function Select SW2 Mode Select Heads-Up Display Label Default Zero V RESET ZERO No action Using Banks • 4-17 ADC-8032A User Manual (Iss. 04)
  • Page 36 Hotswitch Mode. Timebase error-prone signals such as from a VCR will falsely trigger the hotswitch detector. Thus, an Input Mode selection of VTR will force the Hotswitch Mode to OFF. 4-18 • Using Banks ADC-8032A User Manual (Iss. 04)
  • Page 37 Bank C-8: Freeze Mode The input image can be frozen (ADC-8032A-S only) if any of the following conditions occur: • The user selects Manual Freeze (Forced Freeze, Bank C, Position 9) • There is a loss of input signal (Input Loss Mode, Bank C, Position A) •...
  • Page 38 Bank C-B: Hotswitch Mode The ADC-8032A uses a phase-locked-loop (PLL) to synchronize its pixel clock to the incoming signal’s line rate. Because of this, any disturbance to the incoming line rate, such as an untimed switch outside the lock window of the PLL, will cause the PLL to lose lock.
  • Page 39 In all other cases, the output timing will be disturbed any time an untimed switch is made at the input of the ADC-8032A. This function sets the mode or disables it. Three choices are available: •...
  • Page 40 Toggle Mode Select up and hold for one second to force the output to monochrome. • Toggle Mode Select down to disable the Forced Monochrome mode. Bank SW1 Function Select SW2 Mode Select Heads-Up Display Label Default + (h) FRCD MONO 4-22 • Using Banks ADC-8032A User Manual (Iss. 04)

  • Page 41: Smpte 269M Fault Reporting

    The SMPTE 269M Fault Reporting system, also known as an SMPTE “alarm”, provides indication if one or more frame modules encounter a fault or an abnormal condition. The ADC-8032A module provides a jumper to enable SMPTE-269M fault reporting. The card connects by means of an internal interface circuit to an auxiliary telco connector on RossGear 8000 series frames.

  • Page 42: Jumper Setup

    Jumper Setup If fault reporting for the ADC-8032A is desired, use jumper JP4 - 269M Fault Report to set up the card. 1. To access the jumper, remove the card from the frame by pressing down the white card ejector tab and pulling the card from the frame slot.

  • Page 43: Comlink

    PC COM ports. To connect the Comlink between the ADC-8032A and your PC, you require a coax adapter cable with a BNC connector at one end, and either a 9-pin or 25-pin RS-422 or RS-232 connector at the other end.

  • Page 44: Cable Construction

    1. Connect the center conductor of the coax to the pin 3 (RX) on your serial port connector. 2. Connect the shield of the coax to the ground pin 7 (GND) on your serial port connector. 6-2 • Comlink ADC-8032A User Manual (Iss. 04)

  • Page 45: Connection And Configuration

    No flow control 3. On your PC, run a program that uses VT-100 terminal emulation, such as Terminal.exe or HyperTerminal. With the ADC-8032A powered up, you should now have all setup parameters visible on the PC, as illustrated in the sample screen below.
  • Page 46 6-4 • Comlink ADC-8032A User Manual (Iss. 04)

  • Page 47: Specifications

    Specifications In This Chapter This chapter contains the Technical Specifications table. Specifications • 7-1 ADC-8032A User Manual (Iss. 04)

  • Page 48: Technical Specifications

    Technical Specifications Table 6. ADC-8032A - Technical Specifications Category Parameter Specification Signal Standards Accepted NTSC, PAL, PAL-M, PAL-N Number of Inputs Composite Composite Video 1V p-p nominal Video Input Input Impedance 75Ω terminating Return Loss >48dB to 6MHz Common Mode Rejection >52dB @ 50/60Hz...

  • Page 49: Ordering Information

    Warranty and Repair Policy ADC-8032A and Related Products Standard Equipment • ADC-8032A Analog Composite to SDI Decoder* • ADC-8032A-S Analog Composite to SDI Decoder with Frame Synchronizer* Optional Equipment • 8032AD-004 Analog Composite to SDI Decoder User Manual (additional User Manual) •...

  • Page 50: Warranty And Repair Policy

    FIVE (5) years from the date of shipment from our factory. In the event that your RossGear ADC-8032A proves to be defective in any way during this warranty period, Ross Video Limited reserves the right to repair or replace this piece of equipment with a unit of equal or superior performance characteristics.
  • Page 51 Notes: Ordering Information • 8-3 ADC-8032A User Manual (Iss. 04)
  • Page 52 XML formatted set of suggested templates, to make it easier for engineers to find the technical information they need to plan a smooth project. Ross Video Limited is proud to support our broadcast industry engineers by participating in this important initiative.)
