- Page 1 ADR-9039 Analog Composite to SDI Reference Converter User Manual...
- Page 2 Notice The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Ross Video Limited. Ross Video Limited assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.
-
Page 3: Symbol Meanings
Important Regulatory and Safety Notices to Service Personnel Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Product may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements. -
Page 4: Important Safety Instructions
Important Safety Instructions Warning – Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. The safe operation of this product requires that a protective earth connection be provided. A grounding conductor in the equipment's supply cord provides this protective earth. To reduce the risk of electrical shock to the operator and service personnel, this ground conductor must be connected to an earthed ground. -
Page 5: Emc Notices
Notice — Changes or modifications to this equipment not expressly approved by Ross Video Limited could void the user’s authority to operate this equipment. CANADA This Class “A” digital apparatus complies with Canadian ICES-003. -
Page 6: Environmental Information
To avoid the potential release of those substances into the environment and to diminish the need for the extraction of natural resources, Ross Video encourages you to use the appropriate take-back systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in an environmentally friendly and health conscious manner. -
Page 7: Simplified Block Diagram

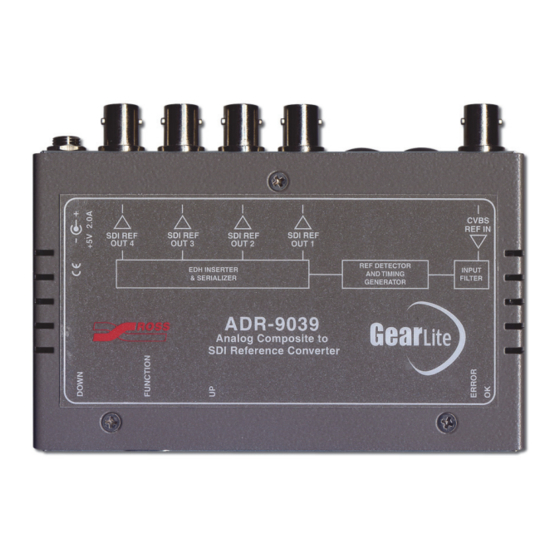

Introduction Overview The ADR-9039 Analog Composite to SDI Reference Converter is a high-quality reference conversion solution within the growing family of GearLite compact, self-contained modular products. Supporting 525 and 625 analog composite video reference, the ADR-9039 is the ideal analog to SDI reference converter for virtually all composite reference to digital reference conversion requirements. -
Page 8: Static Discharge
Unpack each ADR-9039 module you received from the shipping container and check the contents to ensure that all items are included. If any items are missing or damaged, contact your sales representative or Ross Video directly. Mounting and Installation The ADR-9039 can be mounted in any convenient location. However, to ensure... -
Page 9: Optional Mounting Accessories
Optional Mounting Accessories Ross Video is committed to providing practical solutions for the needs of your high-quality broadcast facility. Installation (Iss. 05) • 8... - Page 10 Step 1. Figure 3 Flat Metal Plate Installation Option Install the chassis in the desired location using the Mounting Holes on the Flat Metal Plate. Mounting screws are not provided by Ross Video. Angle Mounting Bracket The Angle Mounting Bracket (Figure 4) allows a single GearLite module to be installed in positions not possible with the flat metal plate.
- Page 11 Figure 4 Angle Mounting Bracket Installation (Iss. 05) • 10...
- Page 12 Setup Power Adapter and Supply Connect the PS-9000 power adaptor to the power supply connector. The PS-9000 provides up to 2A of regulated +5V DC (5%). The DC power cord has a locking connector that securely fastens into the power supply DC jack on the ADR-9039.
-
Page 13: Status Leds
Status LEDs The front edge of the ADR-9039 has four LED indicators that display the status of the input signals, and indicate menu function and configuration selections. (Figure 6) ERROR LED DOWN LED UP LED OK LED Figure 6 ADR-9039 Front Edge Status Indicator LEDs Table 1 describes the status LEDs available on the ADR-9039. -
Page 14: General Operating Rules
Configuration Use the Function Select switch and the Down and Up buttons to configure the ADR-9039 to convert analog video signals to SDI. Settings are described in the section “Function Setup and Configuration Menus” on page 14. Refer to Figure 7 for switch and button locations. Function Down Button Select... -
Page 15: Led Display
Function Setup and Configuration Menus A single press of the Down and Up buttons is a “momentary” click of the button unless indicated by “(h)”. Table Legend Press the Up button from the default position – Press the Down button from the default position Hold Up or Down button for 2-3 seconds for faster adjustment or special function Factory default state... -
Page 16: Function Menu Notes
Table 2 Function Setup and Configuration Menu Function LED Display Selection Function Up/Down Buttons Mode Switch Menu Selection Menu DOWN Position Max. Delay +(h) Delay between Mid-point +(h) and Max. Mid-point V Delay Delay between Min. and ... - Page 17 Format Display This read-only menu indicates the reference system standard currently in operation. H Delay Use this menu to adjust the output horizontal delay from 0 (zero) to one full line, one pixel clock at a time. Note the following important points regarding H Delay: •...
-
Page 18: Specification
Specifications Specifications are subject to change without notification. Table 3 ADR-9039 — Technical Specifications Category Parameter Specification Number of Inputs Composite Black (NTSC or Signal Standards Analog Video PAL-B/-G) Input Input Impedance 75ohm terminating Return Loss >41dB to 5MHz Number of Outputs SMPTE 259M (270Mbps, 525/ Standard 625 lines) -
Page 19: Service Information
Service Information Warranty and Repair Policy The GearLite ADR-9039 is warranted to be free of any defect with respect to performance, quality, reliability, and workmanship for a period of THREE (3) years from the date of delivery to the customer. In the event that your GearLite... -
Page 20: Technical Support
Contact Us Contact our friendly and professional support representatives for the following: • Name and address of your local dealer • Product information and pricing • Technical support • Upcoming trade show information Telephone: +1 613 • 652 • 4886 Technical After Hours Emergency: +1 613 •...
