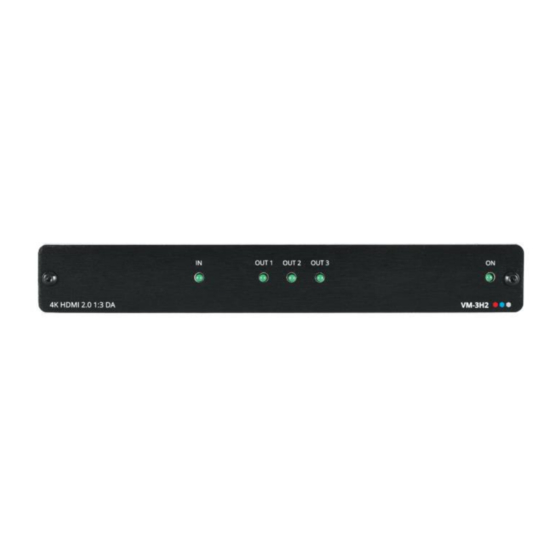

USER MANUAL
MODEL:
VM-3H2
1:3 4K HDR HDMI DA
P/N: 2900-300603 Rev 4
www.kramerAV.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM-3H2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kramer VM-3H2

  • Page 1 USER MANUAL MODEL: VM-3H2 1:3 4K HDR HDMI DA P/N: 2900-300603 Rev 4 www.kramerAV.com...
  • Page 2: Table Of Contents

    Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining the VM-3H2 1:3 4K HDR HDMI DA Setting the DIP-Switches LED Indications Mounting VM-3H2 Connecting the VM-3H2 EDID Acquisition Policy Upgrading the Firmware Default EDID Technical Specifications VM-3H2 – Contents...
  • Page 3: Introduction

    Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have...
  • Page 4 European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.
  • Page 5: Overview

    HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D as specified in HDMI 2.0. • Kramer Equalization & re-Klocking™ Technology that rebuilds the digital signal integrity to travel longer distances. •...
  • Page 6: Defining The Vm-3H2 1:3 4K Hdr Hdmi Da

    • Lock default EDID – locked, not locked. Any time the DIP-switch settings are changed, the device must be powered off and on for the new settings to take effect. VM-3H2 – Defining the VM-3H2 1:3 4K HDR HDMI DA...
  • Page 7: Led Indications

    Flashes slowly, repeatedly Input signal detected. Output device has invalid EDID Flashes twice quickly then twice slowly, HDCP signal on input. repeatedly Output device does not support HDCP and has invalid EDID VM-3H2 – Defining the VM-3H2 1:3 4K HDR HDMI DA...
  • Page 8: Mounting Vm-3H2

    Kramer Electronics Ltd. Mounting VM-3H2 This section provides instructions for mounting VM-3H2. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F).
  • Page 9: Connecting The Vm-3H2

    Kramer Electronics Ltd. Connecting the VM-3H2 Always switch off the power to each device before connecting it to your VM-3H2. After connecting your VM-3H2, connect its power and then switch on the power to each device. You do not have to connect all the inputs and outputs, connect only those that are required.
  • Page 10: Edid Acquisition Policy

    When set to OFF (up): • If no outputs are connected when powering on the VM-3H2, the default EDID is set on the input. The EDID of the first output that is connected after powering the device is set to the input. This EDID is replaced by the default EDID only when all outputs are disconnected.
  • Page 11: Upgrading The Firmware

    2. Download and install the EPConsole application from the Koryo (Taiwan) Web site. 3. Download and extract the latest version of the firmware from the Kramer Web site to a disk location on your PC. The firmware includes three files with names ending in .h00, .h01, .h02.
  • Page 12: Default Edid

    Detailed timing #3..1366x768p at 50Hz (16:9) Modeline...."1366x768" 84.650 1366 1894 1938 2086 768 772 777 813 +hsync +vsync Detailed timing #4..1366x768p at 60Hz (16:9) Modeline...."1366x768" 101.610 1366 1894 1938 2086 768 772 777 813 +hsync +vsync VM-3H2 – Default EDID...
  • Page 13 IEEE registration number. 0x000C03 CEC physical address..1.0.0.0 Maximum TMDS clock..165MHz Report information Date generated... 4/17/2016 Software revision..2.90.0.1002 Data source....File Operating system..6.1.7601.2.Service Pack 1 Raw data 00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,00,00,00,00,0E,1A,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26, 10,50,54,2D,CF,00,A9,C0,81,00,A9,40,61,59,45,59,31,59,71,4F,81,40,02,3A,80,18,71,38,2D,40,58,2C, 45,00,0F,24,21,00,00,1E,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,00,00,FC,00,56, 4D,2D,34,48,32,0A,20,20,20,20,20,20,00,00,00,F7,00,00,08,42,A2,20,00,00,00,00,00,00,00,00,01,B4, 02,03,23,F0,50,90,05,02,14,1F,20,22,5D,5F,61,62,64,66,67,69,6B,23,09,07,07,83,01,00,00,65,03,0C, 00,10,00,51,03,D0,18,21,F0,2D,00,58,2C,45,00,0F,1A,21,00,00,9E,51,13,54,D0,32,E0,2D,10,10,2C,45, 80,BA,88,21,00,00,1E,11,21,56,D0,52,00,2D,30,10,2C,45,80,BA,88,21,00,00,1E,B1,27,56,D0,52,00,2D, 30,10,2C,45,80,BA,88,21,00,00,1E,B1,0A,D0,A0,20,40,2D,20,08,60,22,01,80,E0,21,00,00,00,00,F1,B5 VM-3H2 – Default EDID...
  • Page 14: Technical Specifications

    35.1cm x 21.2cm x 7.2cm (13.8" x 8.4" x 2.8") W, D, H SHIPPING WEIGHT: 0.67kg (0.67lb) INCLUDED Power supply ACCESSORIES: Specifications are subject to change without notice For the most updated resolution list, go to our Web site at www.kramerav.com VM-3H2 – Technical Specifications...
  • Page 15 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
  • Page 16 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
