Unit For Air Pressure, C18 (Unit Hpa); Unit For Wind Speed, C19 (Unit M/S); Adjustment Of Wind Angle, C20 (000° Adj); Damping Of Wind Readings, C21 (Sea Low) - Nexus NX Sea Data Installation And Operation Manual

English
8.1.9
Unit for air pressure. Hecto Pascal (hPa) or Inch HG (INH).
8.1.10
Unit for wind speed. Metre/second (m/s), knots (KTS) or Beaufort
(BF).
8.1.11
Mast top unit misalignment adjust value or the so called "A-fault",
makes it possible to choose any horizontal mounting angle.
Example 1: If the wind angle is +4° (from Starboard) when you
sail/drive the boat straight into the wind. Set the calibration
channel C20 to 356°.
Example 2: If the wind angle is -4° (from port) when you sail/drive
the boat straight into the wind. Set the calibration channel C20 to
004°.
8.1.12
Damping of wind information. Controls the response time of wind
changes. To change damping, press SET. To select damping
level, press PLUS and select from: LOW) 1 sec, (MED) 5 sec and
(MAX) 22 sec. To store the selected value, press SET.
Factory value is (LOW), for use in calm sea. But if the sea is
rough, you may want to "stabilise" the readout on the display, then
select MID or (MAX). Damping is set separately for each
instrument.
8.1.13
(On) = Sound when push buttons are pressed. (OFF) = no sound.

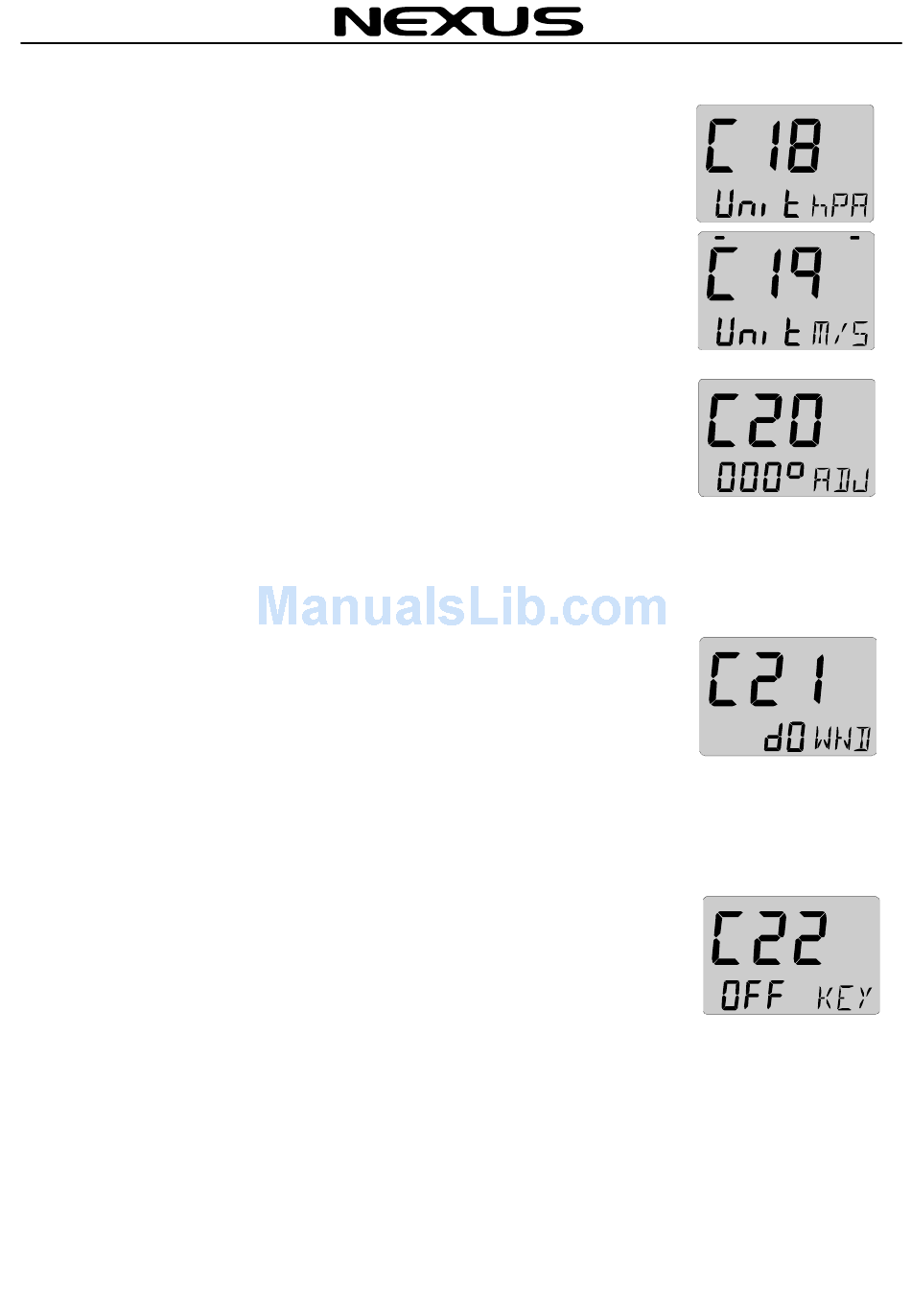

Unit for Air Pressure, C18 (Unit hPA)

Unit for Wind Speed, C19 (Unit m/s)

Adjustment of Wind Angle, C20 (000° ADJ)

Damping of Wind Readings, C21 (SEA LOW)

Key beep setting, C22 (OFF KEY)

22
SEA DATA
