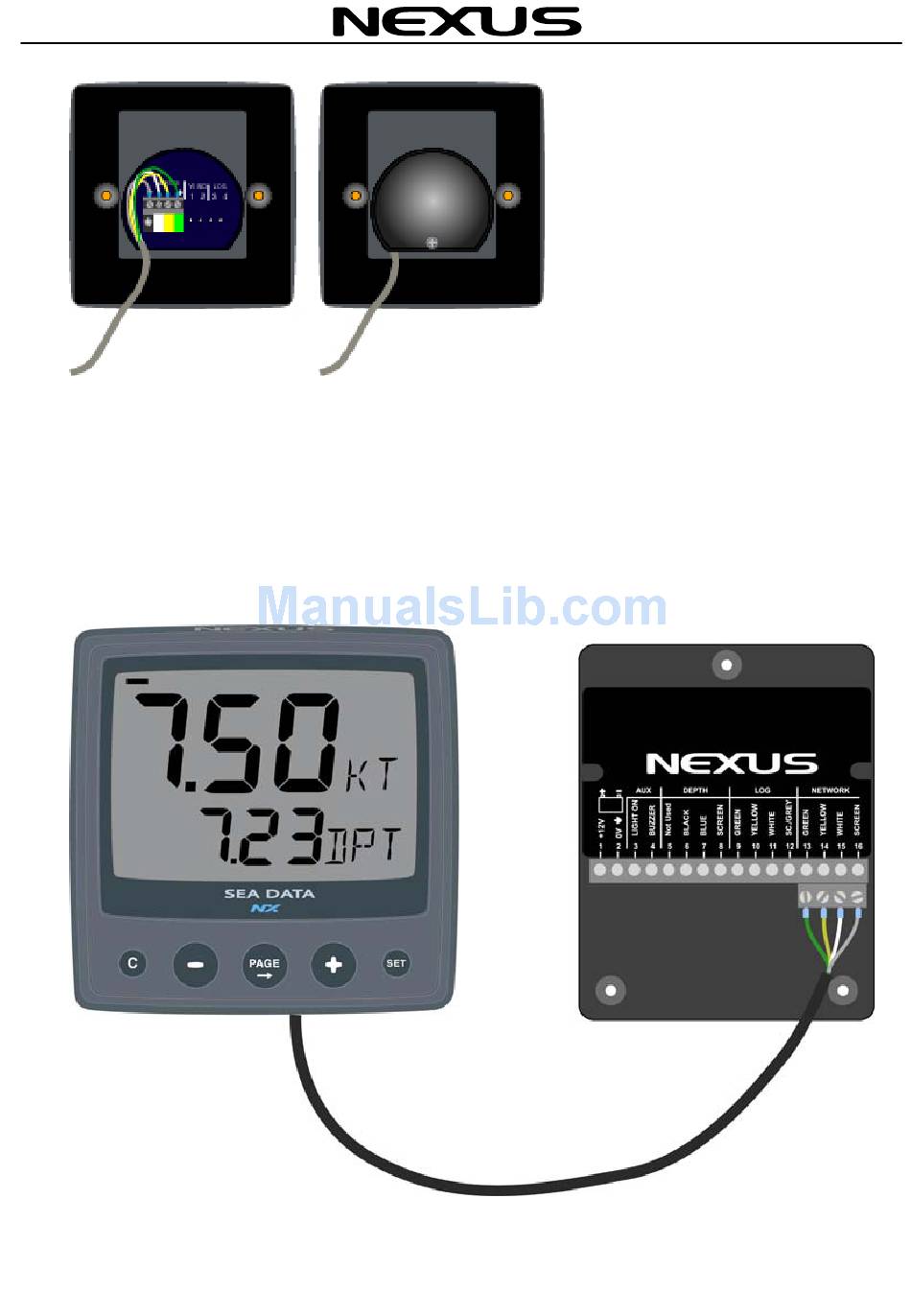

Apply silicon paste to the instrument connection pins at the back of the instrument.
Press the jack plug onto the instrument pins. Press the cable in to the cable leads.
•
Mount the connection back cover with the screw.

2.1.1 Installing instrument to the WSI-box

All NX2 instruments are connected directly to the Nexus Network
in a daisy chain. They all use the same colour coded 4-pole jack
plugs. (For instrument installation, see 2.2).
