SEA DATA
8.1.4
Damping of indicated boat speed through the water. Controls the
response time of speed changes.
To change damping, press SET.
To select damping level, press PLUS and select from:
(LOW) 1 sec, (MED) 5 sec and (MAX) 22 sec.
To store the value, press SET.
Default value is (LOW), for use in calm sea. But if the sea is
rough, you may want to "stabilise" the readout on the display, then
select (MID) or (MAX). Damping is set separately for each
instrument.
8.1.5
Unit for depth. Metre (m), feet (Ft) or fathoms (FA).
8.1.6
Calibration of the depth transducer position.
This option is used to select whether the displayed water depth is
measured from the water level or the keel.
To measure from the keel, use the minus ( - ) sign.
Example: ( - 01.2 ADJ). The distance from the transducer to the
keel is 1.2 m
To measure from the water surface, use the underlining character
( _ ) sign.
Example: ( _ 00.4 ADJ). The distance from the transducer to the
water surface is 0.4 m.
The selected value will be subtracted or added from the measured
depth.
8.1.7
Unit for temperature. Celsius (C) or Fahrenheit (F).
8.1.8
Value to adjust the temperature.
To add, use underlining character ( _ ) ahead of the digit ( _1
TMP).
To subtract, use minus character ( - ) ahead of the digit (-1 TMP).

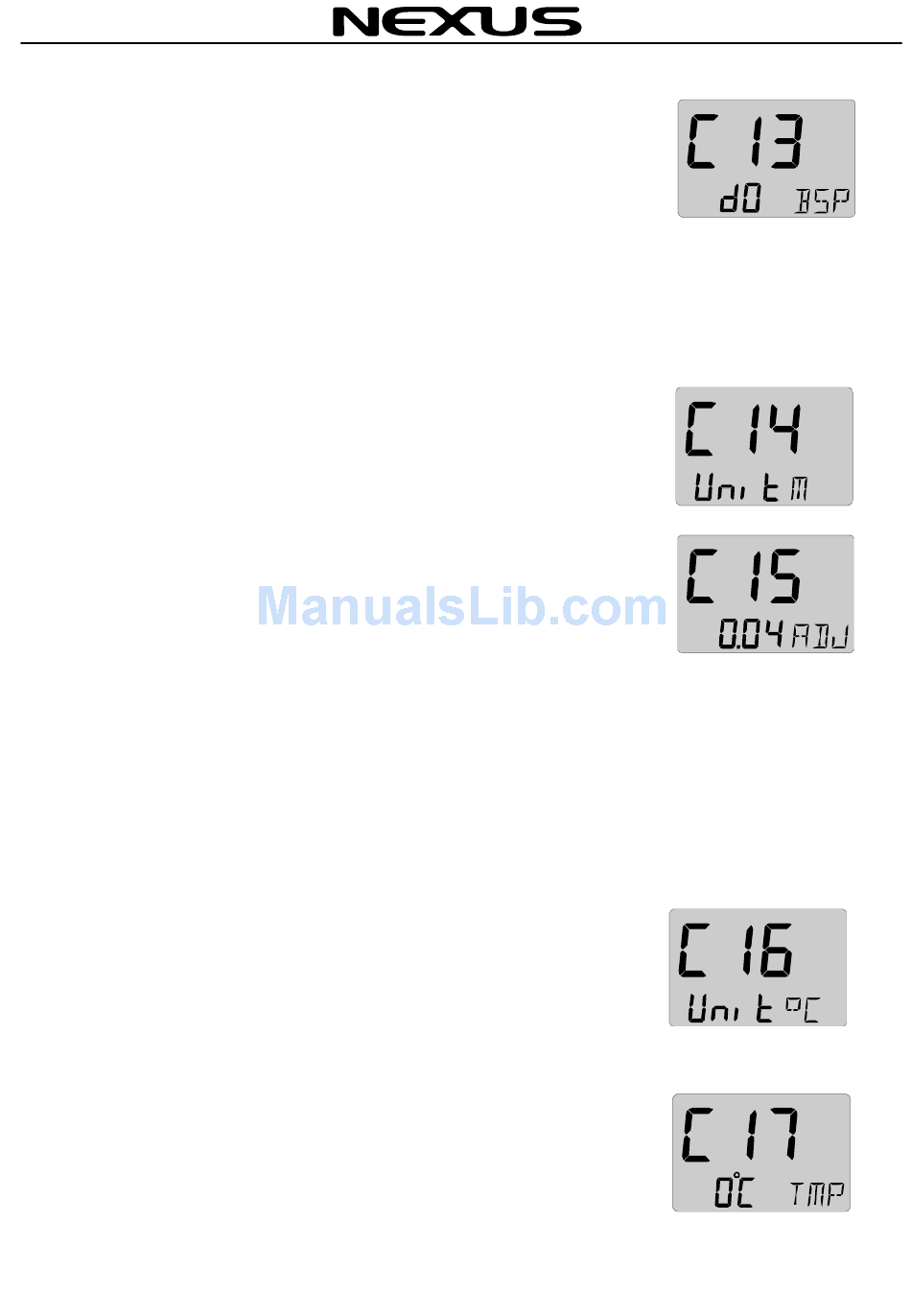

Damping of Speed, C13 (SEA)

Unit for Depth readings, C14 (Unit m)

Adjust Depth readings, C15 ( - 00.0 ADJ)

Unit for Temp readings, C16 (Unit°C)
Adjustment of Temp reading,C17 (0°C TMP)
21
English
