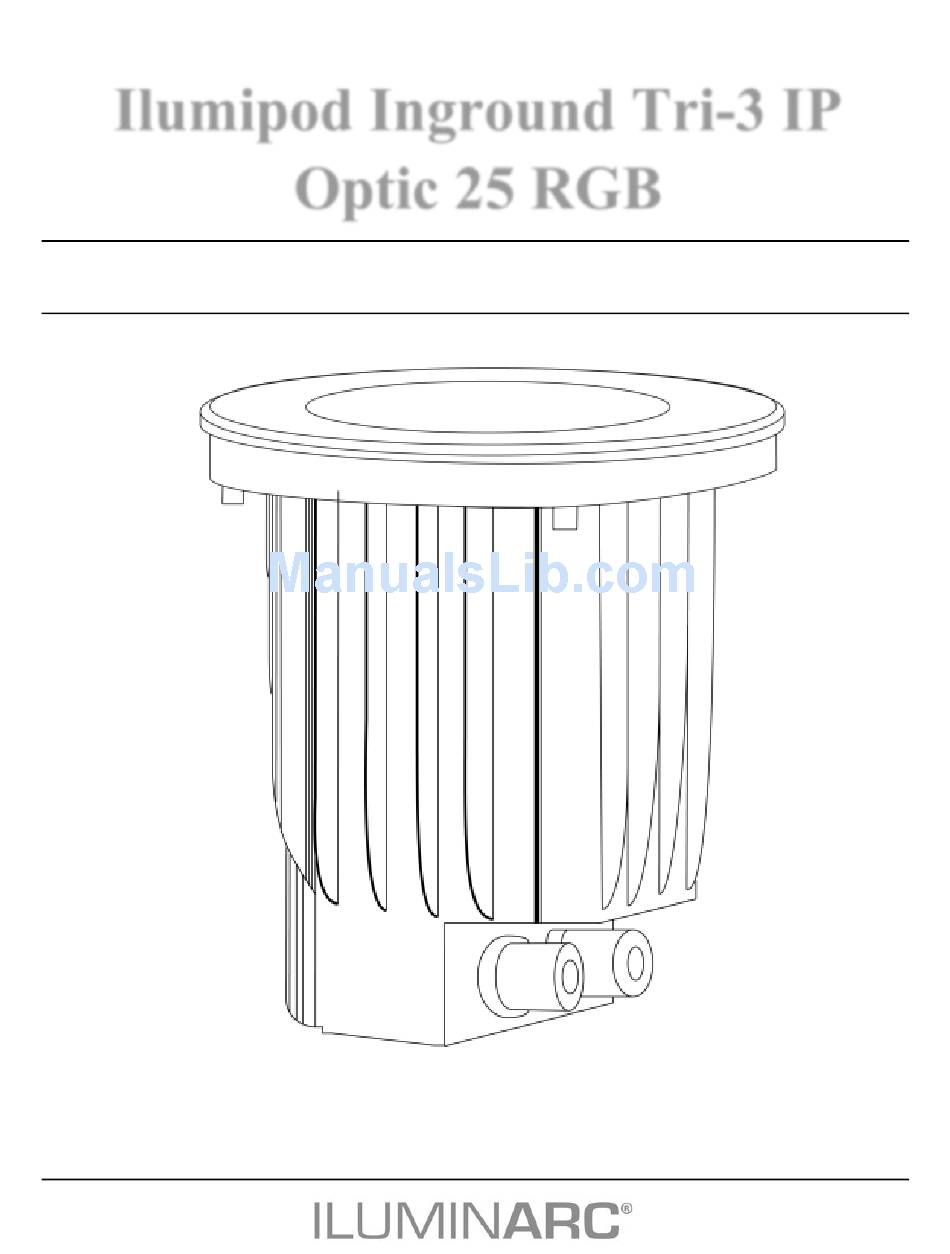

- Page 1 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual...
- Page 2 Edition Notes Edition Notes The Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 covers the description, safety precautions, installation, programming, operation, and maintenance of the Ilumipod Inground ® Tri-3 IP Optic 25 RGB. ILUMINARC released this edition of the Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev.
-
Page 3: Table Of Contents
Dimmer ..........................12 Reset ..........................12 Menu Map ........................13 DMX Values ....................... 14 ARC 1 ..........................14 ARC 1 + D ......................... 14 SOLID ..........................14 ARC FULL ......................... 15 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... - Page 4 LED Disclaimer ......................19 LED Life ..........................19 LED Binning........................19 Color Rendering Index (CRI) ..................... 19 Returns Procedure ..................... 20 Contact Us ........................20 Technical Specifications ..................... 21 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5...
-
Page 5: Introduction
A range of menu values from which to choose in a menu Yes/No A set of two mutually exclusive menu options in a menu A unique value to enter or select in a menu Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 6: Safety Notes
· In case of a serious operating problem, stop using this product immediately! manual. In the unlikely event that your Ilumipod Inground Tri-3 IP Optic 25 RGB may require service, please contact ILUMINARC ® Technical Support. Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 7: Product Description
Product Description 2. Product Description The Ilumipod Inground Tri-3 IP Optic 25 RGB is a tri-color wash light intended for inground installation. The product consists of a cast aluminum body containing a power supply, control unit, drive-over-rated glass lens cover, and tri-color LEDs. -
Page 8: Product Overview
Product Description Product Overview Installation Sleeve 316 Stainless Steel Gland Nuts Tri-color LEDs Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 9: Product Dimensions
Product Description Product Dimensions 0.2 in (4 mm) 5.6 in 7 in (141 mm) (178 mm) 4.2 in (107 mm) 6.0 in (153 mm) Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 10: Installation
3. Installation Installation Notes The Ilumipod Inground Tri-3 IP Optic 25 RGB consists of two parts, the product housing and the concrete installation sleeve. The product housing is IP67-rated. The installation sleeve is not. Read the Installation Sleeve Setup instructions carefully. -
Page 11: Ac Power
AC Power Always connect the Ilumipod The Ilumipod Inground Tri-3 IP Optic 25 RGB has an auto-ranging power supply that can work Inground Tri-3 IP with an input voltage range of 100~240 VAC, 50/60 Hz. Optic 25 RGB to a... -
Page 12: Dmx Linking
DMX Linking The Ilumipod Inground Tri-3 IP You may link the Ilumipod Inground Tri-3 IP Optic 25 RGB to a DMX controller using a Optic 25 RGB standard DMX serial connection. If using other DMX products compatible with the Ilumipod... -
Page 13: Controllers
Installation Controllers The Ilumipod Inground Tri-3 IP Optic 25 RGB can operate with a standard DMX controller or the Ilumicode addresser. The sections below will show you how to connect these products to the corresponding controllers. The instructions to operate these products with each of the above... -
Page 14: Ilumicode
The Ilumicode addresser (“Ilumicode”) is required to program the settings on the ILUMINARC® suggests that you Ilumipod Inground Tri-3 IP Optic 25 RGB. The diagram below shows how to connect connect no more the Ilumicode addresser to this product. than 20 products... -
Page 15: Operation
30 seconds of inactivity. Control Options You can set the Ilumipod Inground Tri-3 IP Optic 25 RGB start address in the 001–512 DMX range. This allows for the control of up to 73 fixtures in the 7-channel ARC FULL personality. -
Page 16: Static Colors
Non-linear (slow) Non-linear (slowest) DIM4 Reset This option resets the Ilumipod Inground Tri-3 IP Optic 25 RGB to the factory default settings. Go to SETTINGS > RESET. Select YES or NO. Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 17: Menu Map
Maximum output, unbalanced white COLOR RGBTOW White output is as per CALIB > RGBTOW settings SETTINGS Output matches that of product’s previous versions RESET Resets product to factory default settings Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 18: Dmx Values
000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue SOLID Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 19: Arc Full
010 ó 029 OFF (dimmer is linear) 030 ó 069 DIM1 (fastest dimmer curve) Dimming Speed 070 ó 129 DIM2 130 ó 189 DIM3 190 ó 255 DIM4 (slowest dimmer curve) Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 20: Technical Information
Troubleshooting Table as a guide Technical Support. only. In most cases, opening the product’s housing will invalidate its warranty, unless there is a written indication to the contrary. Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 21: Troubleshooting Guide
Install an optically coupled DMX splitter Too many products after product #32 or before Keep DMX cables separated from power Interference from AC wires cables or fluorescent/black lights Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 22: Photometrics
Beam (50%): 21.4% 96.3 17.5 18.4 Total: 47.8% 215.3 Photometics Pro 1.3.2 copyright 2003-2008 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 23: Led Disclaimer
CRIs as low as 25 still produce visually pleasing white light. Evaluate LED systems in person and, if possible, on-site when color fidelity or color appearance are important issues. Source: DOE publication: PNNL-SA-56891, January 2008 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 24: Returns Procedure
5200 NW 108 Avenue ® ILUMINARC Sunrise, FL 33351 Voice: (954) 923-3680 Fax: (954) 544-4898 Email: info@iluminarc.com Tech Support Voice: (800) 762-1084 Email: support@iluminarc.com www.iluminarc.com World Wide Web Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... -
Page 25: Technical Specifications
Cooling System Thermal 113 °F (45 °C) Convection I/O Connectors Connector Type Channel Range Open Wire Hard-wired 1, 3, 4 or 7 Ilumipod Inground Tri-3 Ordering Optic 25 RGB 11003001 Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5... - Page 26 ILUMINARC® 5200 NW 108 Avenue Sunrise, FL 33351 U.S.A. Tel.: (954) 923-3680 www.iluminarc.com Ilumipod Inground Tri-3 IP Optic 25 RGB User Manual Rev. 5 December 2013...
