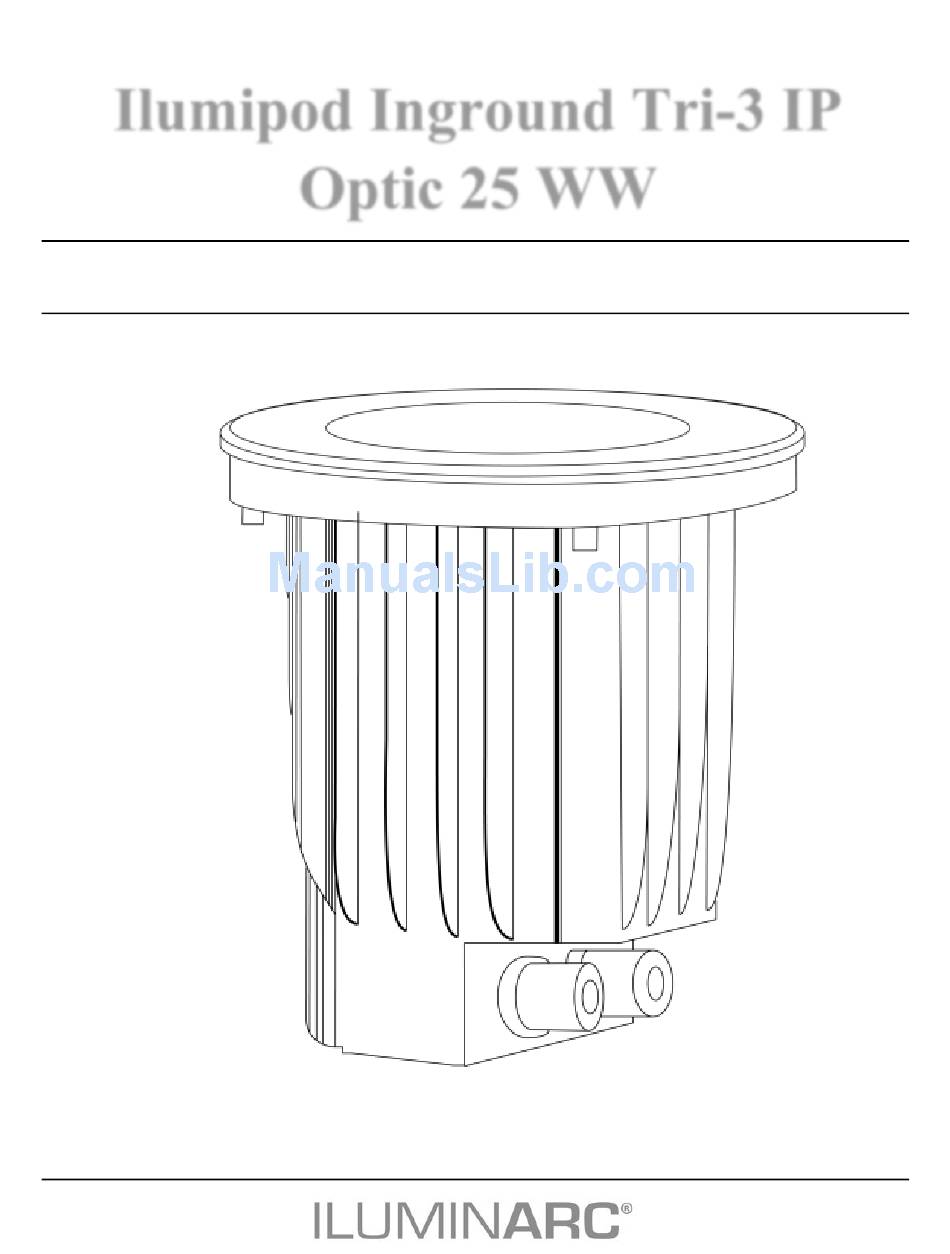

- Page 1 Ilumipod Inground Tri-3 IP Optic 25 WW User Manual...
- Page 2 Edition Notes The Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3 covers the description, Edition Notes safety precautions, installation, programming, operation, and maintenance of the Ilumipod Inground Tri-3 IP Optic 25 WW. ILUMINARC® released this edition of the Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev.
-
Page 3: Table Of Contents
DMX Starting Address ............................ 11 Static Colors ..............................12 Dimmer ................................12 Reset to Factory Settings ..........................12 Menu Map .............................. 12 DMX Values ............................12 SOLID ................................12 Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... - Page 4 LED Disclaimer ............................16 LED Life ................................. 16 LED Binning ..............................16 Color Rendering Index (CRI) .......................... 16 Returns Procedure ..........................17 Contact Us ............................. 17 Technical Specifications ........................18 Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3...
-
Page 5: Introduction
ILUMINARC®. The customer must submit the report upon receipt of the damaged merchandise. Failure to do so in a timely Useful manner may invalidate the customer’s claim with the carrier. -
Page 6: Safety Notes
· In case of a serious operating problem, stop using this product immediately! In the unlikely event that your Ilumipod Inground Tri-3 IP Optic 25 WW may require service, please contact ILUMINARC® Technical Support. Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... -
Page 7: Product Description
Product Description 2. Product Description The Ilumipod Inground Tri-3 IP Optic 25 WW is a wash light intended for in-ground installation. The product consists of a cast aluminum body containing a power supply, control unit, drive-over-rated glass lens cover, and tri-emitter LEDs. -
Page 8: Overview
Product Description Overview Installation Sleeve 316 Stainless Steel Gland Nuts Tri-emitter LEDs Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... -
Page 9: Dimensions
Product Description Dimensions 0.2 in (4 mm) 5.6 in 7 in (141 mm) (178 mm) 4.2 in (107 mm) 6.0 in (153 mm) Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... -
Page 10: Installation
Installation 3. Installation Installation Notes The Ilumipod Inground Tri-3 IP Optic 25 WW consists of two parts: the product housing and the concrete installation sleeve. The product housing is IP67-rated. The installation sleeve is not. Read the Installation Sleeve Setup instructions carefully. -
Page 11: Ac Power
0 to 100% switch. The Ilumipod Inground Tri-3 IP Optic 25 WW comes with a bare-ended power input cord for Make sure to hardwired installation. Use the table and the illustration below to wire a plug. -
Page 12: Dmx Linking
Inground Tri-3 IP Optic 25 WW You may link the Ilumipod Inground Tri-3 IP Optic 25 WW to a DMX controller using a must be linked using DMX standard DMX serial connection. If using other DMX products compatible with the Ilumipod... -
Page 13: Controllers
Installation Controllers If you have not The Ilumipod Inground Tri-3 IP Optic 25 WW can operate with a standard DMX controller or configured the the ILUMICODE addresser. The sections below provide information on how to connect these DMX starting address and products to the corresponding controllers. -
Page 14: Ilumicode Addresser
Installation Ilumicode Addresser To assign individual The Ilumipod Inground Tri-3 IP Optic 25 WW uses the Ilumicode addresser (“Ilumicode”) for DMX addresses to each product, you configuration purposes. The diagram below shows how to connect the Ilumicode to this product. -
Page 15: Operation
30 seconds of inactivity. Control Options You can set the Ilumipod Inground Tri-3 IP Optic 25 WW start address in the 001–512 DMX range. This allows for the control of up to 512 products in the 1-channel SOLID personality. -
Page 16: Static Colors
DIM3 DIM4 Configures the static color 000–255 STATIC SOLD Resets unit to factory default settings SETTINGS RESET DMX Values SOLID Channel Function Value Percent/Setting 000 ó 255 Dimmer 0–100% Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... -
Page 17: Technical Information
® lint. Technical Support. Product Repairs ILUMINARC® strongly advises you against attempting any repairs to this product unless you are an authorized ILUMINARC® technician. ILUMINARC® presents the information contained in the Troubleshooting Guide as potential solutions only. In most cases, opening the product’s housing will invalidate its warranty. -
Page 18: Troubleshooting Guide
Install an optically coupled DMX splitter Too many products after product #32 or before Keep DMX cables separated from power Interference from AC wires cables or fluorescent/black lights Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... -
Page 19: Photometrics
Beam (50%): 23.7% 94.9 15.2 14.5 Total: 62.5% 250.0 Photometrics Pro 1.3.21 copyright 2003-2012 by jSolutions, Inc. Reported data calculated from manufacturer's data file, based on IES recommended methods. Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... -
Page 20: Led Disclaimer
LED Disclaimer LED Life ILUMINARC® rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC®. When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 21: Returns Procedure
Be prepared to provide the model number, serial number, and a brief description of the cause for the return. The user must clearly label the package with an RMA #. ILUMINARC® will refuse any product returned without an RMA #. DO NOT write the RMA # directly on the box. -
Page 22: Technical Specifications
113 °F (45 °C) Convection I/O Connectors Connector Type Channel Range Open Wire Open Wire Ordering Product Name Item Code UPC Number Ilumipod Inground Tri-3 IP 01630585 781462209339 Optic 25 WW Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3... - Page 23 ILUMINARC® 5200 NW 108 Avenue Sunrise, FL 33351 U.S.A. Voice: (954) 923-3680 www.iluminarc.com Ilumipod Inground Tri-3 IP Optic 25 WW User Manual Rev. 3 December 2013...
