Iluminarc Ilumipod 42 IP Series Quick Reference Manual

Hide thumbs Also See for Ilumipod 42 IP Series:

Advertisement

Quick Links

Download this manual See also: User Manual
I
l
u
m
i
p
o
d
4
2
I
P
S
e
r
i
e
s
I
l
u
m
i
p
o
d
4
2
I
P
S
e
r
i
e
s
Quick Reference Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ilumipod 42 IP Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Iluminarc Ilumipod 42 IP Series

Summary of Contents for Iluminarc Ilumipod 42 IP Series

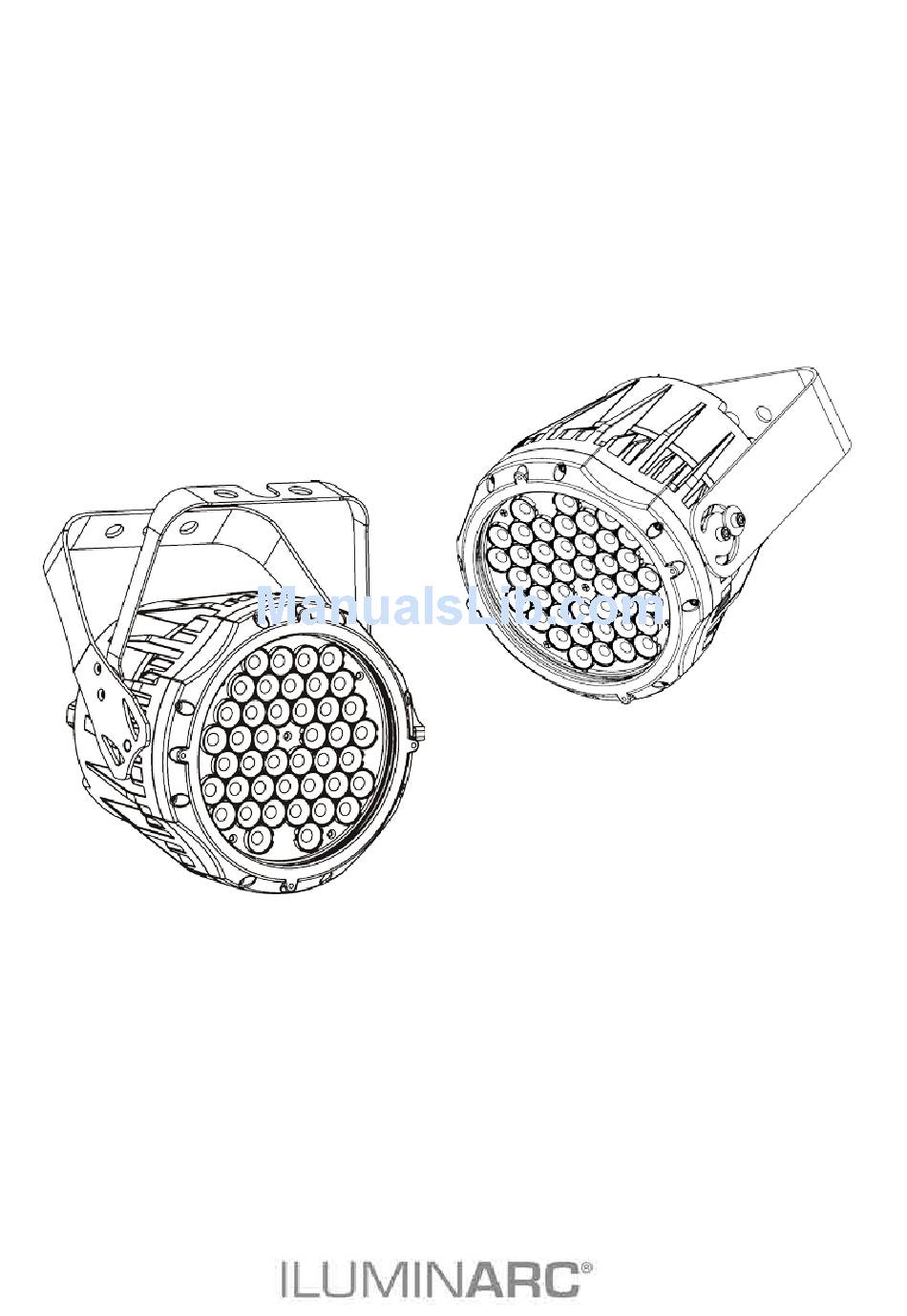

  • Page 1 Quick Reference Guide...

  • Page 2: About This

    Ilumipod 42 IP Series QRG The Ilumipod 42 IP Series Quick Reference Guide (QRG) only contains the About this product’s connection and mounting information as well as the menu options Guide and the DMX values. This QRG does not replace the product’s user manual. You must download the corresponding user manual from the ILUMINARC®...
  • Page 3 Ilumipod 42 IP Series QRG · Common White or gray cast aluminum housing · Single or double bracket yoke Features · IP66 ingress protection rating · IP66 stainless steel gland nuts for cable entry · Bare ended IP66 power input cable ·...
  • Page 4 Ilumipod 42 IP Series QRG Dimensions...

  • Page 5: Power Wiring

    Ilumipod 42 IP Series QRG This product has an auto-ranging power supply that can work with an input AC Power voltage range of 100~240 VAC, 50/60 Hz. Power Linking This product does not support power linking. AC Plug The IP66 power input cable in this product comes bare ended. Use the table below to wire a plug for this product or see the connection diagram.
  • Page 6 Ilumipod 42 IP Series QRG You can connect the bare-ended IP67 rated signal cable from the fixture to two IP66 rated signal connectors (DMX Input and DMX Output). Connection Alternatively, you may use an IP66 rated junction box for a surface installation, or an IP67 rated junction box for a buried installation.
  • Page 7 Ilumipod 42 IP Series QRG Before mounting this product, read the safety notes at the beginning of the Mounting Ilumipod 42 IP Series User Manual and follow the mounting procedures indicated in it. C Clamps (not included) Secure the safety cable using...
  • Page 8 Ilumipod 42 IP Series QRG Control Button Function Panel Exits from the current menu or function <MENU> Description Enables the currently displayed menu or sets the currently <ENTER> selected value into the selected function Navigates upwards through the menu list and increases the <UP>...
  • Page 9 Ilumipod 42 IP Series QRG Menu Options (RGBW Fixtures) Level Programming Levels Description R (red) G (green) Combines red, green, blue, and white to form a 000~255 custom color b (blue) STAT w (white) ST (strobe) Strobe frequency (0~20 Hz) 00~20 AT.1~10...
  • Page 10 Ilumipod 42 IP Series QRG Menu Options (VW Fixtures) Level Programming Levels Description w (warm white) Warm White and Cool White generate a white 000~255 temperature (0~100%) STAT C (cool white) ST (strobe) 00~20 Strobe frequency (0~20 Hz) Operates with a DMX controller...
  • Page 11 Ilumipod 42 IP Series QRG DMX Values (RGBW fixtures) TOUR Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 0~100% 000 ó 255 When running a custom program Step Time Green 0~100% 000 ó 255 Fade Time When running a custom program 000 ó...
  • Page 12 Ilumipod 42 IP Series QRG TOUR (Cont.) Channel Function Value Percent/Setting 121 ó 130 Custom 1 131 ó 140 Custom 2 141 ó 150 Custom 3 151 ó 160 Custom 4 161 ó 170 Custom 5 171 ó 180 Custom 6 Programs (Cont.)
  • Page 13 Ilumipod 42 IP Series QRG Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 0~100% Saturation 000 ó 255 0~100% Value ARC1 Channel Function Value Percent/Setting 000 ó 255 0~00% 000 ó 255 0~100% Green 000 ó 255 0~100%...
  • Page 14 Ilumipod 42 IP Series QRG DMX Values (VW fixtures) Std.1 Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% White macro Std.2 Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% Warm white 000 ó...
  • Page 15 Ilumipod 42 IP Series QRG Std.w Channel Function Value Percent/Setting 000 ó 255 0~100% Warm white 000 ó 255 0~100% Cool white Std.d Channel Function Value Percent/Setting 000 ó 255 0~100% Dimmer 000 ó 255 0~100% Warm white 000 ó 255 0~100%...
  • Page 16 5200 NW 108th Avenue Sunrise, FL 33351 Voice: (954) 923-3680 Fax: (954) 929-5560 (ATTN: ILUMINARC®) www.iluminarc.com World Wide Web Ilumipod 42 IP Series QRG – Rev. 02 © Copyright 2011 ILUMINARC® All rights reserved Printed in the P. R. C.
