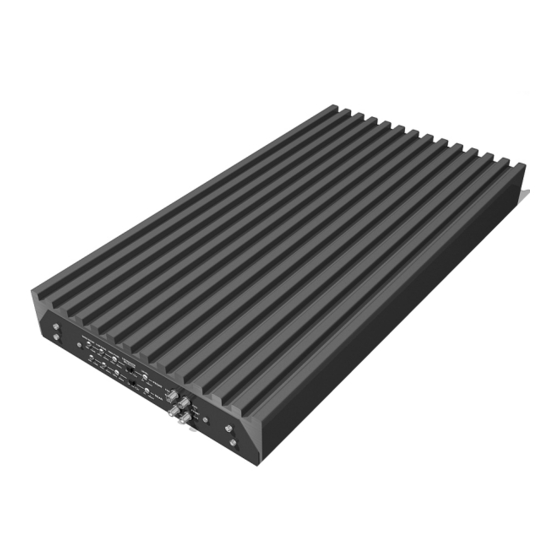

  • Page 1 CLASS D AMPLIFIER Owners Manual/ Bedienungsanleitung FA-10000...
  • Page 2 Important notice in advance / Wichtiger Hinweis vorab The digital SPL amplifier Eton FA 10000 is a so-called competition amplifier. The amplifier has no approvals for cars used in public traffic. We strongly recommend using the amplifier only for SPL competition.
  • Page 3 Our simple yet highly developed circuitry, contributes to low distortion and the ultimate in efficiency. This is why we are sure that your new ETON amplifier will provide you with a sound experience you will enjoy years to come.

  • Page 4: Power Input Connection

    Power input connection Connection / Anschluss Eton amplifiers are designed to work within a 10 to 16 volt DC range. Before any wires are connected, the electrical system should be checked for correct voltage supply with the help of a voltmeter.
  • Page 5 Connect the fuse holder or circuit breaker as close to the battery positive terminal as possible. Use a fuse or circuit breaker of equal value as that found on the chassis of your Eton amplifier. You may now connect the cable to the battery, but remember to leave the fuse out or circuit breaker off until all other cable connections are made.
  • Page 6 Signal input and gain setup / Schema des Signaleingangs Low Level Input using RCA Low Level Input / Low Level (Cinch) Eingang Choose the correct length and style of RCA interconnects for your needs. We recommend double or tripple schielded RCA cable. Be extra careful with your RCA interconnects.
  • Page 7 Gain Control / Einstellung der Eingangsempfindlichkeit On the amplifier, is the LEVEL control, this control allows you to match the input level of the amplifier to the output level o your head unit. Matching the input can be accomplished in three simple steps. Am Verstärker befindet sich der Gainregler.
  • Page 8 Speaker output connection / Diagramm Lautsprecheranschluss Don´t connect two 1 ohm woofers simultaneously. Minimum load is 1 ohm. Schließen nie mehrere Subwoofer mit einer Impedanz von 1 Ohm gleichzeitig an Gesamte angeschlossene Last darf 1 Ohm nicht unterschreiten Single Voice Coil Subwoofer (1 ohm) Anschluss eines Subwoofers mit Einzelschwingspule (1 Ohm) Two Subwoofers (2~4 ohm) with Single Voice Coil Anschluss von 2 Subwoofern (2~4 Ohm) mit Einzelschwingspule...
  • Page 9 In other words they require a minimum impedance of 1 ohms MONO (Digital Mono Block Only) to operate trouble free. Too low of an impedance could send your ETON amplifier into protection mode and/or damage the amplifier. Bedenken Sie das diese Endstufe eine High Power und keine High Current Endstufe ist.
  • Page 10 Control and descriptions / Regler und Anschlüsse Feature and control 1. RCA In/Out Jack for Daisy Chain / Cinch Anschlüsse für Master/Slave Betrieb Connect the input of the MASTER to a suitable source, e.g. a head unit with good quality RCA cable and connect the MASTER OUTPUT RCA jack to the corresponding RCA jack on the SLAVE amplifier.

  • Page 11: Input Gain Control

    Ähnlich wie bei einem “Time delay” kann es durch die unterschiedlichen Plazierungen der Lautsprecher im Fahrzeug zu Laufzeitunterschieden kommen. Um eine straffe Basswiedergabe zu erhalten, die von der virtuellen Bühne vorne kommt, justieren Sie die Phasenlage mit diesem Regler. Sie erhalten ein deutlich realistischeres “Front staging” 4.Input Gain Control See chapter Gain Control above Note: If sound becomes distorted, turn this control down.
  • Page 12 9.Power LED (Blue) / Power LED blau This shows if the amplifier has been correctly powered up. Zeigt den korrekten Betriebszustand an wenn die Endstufe eingeschaltet ist. 10.Protection LED (Red) / Protection LED rot This shows if any faults are present. See trouble shooting. Zeigt einen Fehler an.
  • Page 13 15.Remote Input Connection /Remote Anschluss (Einschaltplus) See description above. Oben beschrieben. 16.Speaker Output /Lautsprecherausgang See channel installation diagram in this manual for correct speaker connection. Siehe auch Anschlussdiagramm Note: Speaker connection for daisy chain Achtung: Lautsprecheranschluss im Master/Slave Betrieb The mono woofer is connected between the + terminals of the two amplifiers and at least of cable gauge, AWG 7 (10,5 mm²).
  • Page 14 Trouble shooting / Fehlerbehebung Problem Cause/ Grund Solution /Lösung Power LED not Fuse at battery blown Replace with correct fuse. Typically twice the “ON” or not installed rating of the fuse that is on the amplifier. Sicherung an der Sicherung ersetzten. Bei wiederholten Power LED geht Batterie defekt oder Auslösen Sicherung durch Größere ersetzen.
  • Page 15 How to setup/ Anschlussbeispiele Schließen nie mehrere 1 Ohm Lautsprecher gleichzeitig an. Mono block installation with single voice coil subwoofer Anschluss eines Subwoofers mit Einzelschwingspule (1 Ohm) Mono block installation with dual voice coil subwoofer 1 Ohm 1 Ohm...
  • Page 16 Mono block installation for daisy chain Monoblock Installation einer Master/Slave Endstufenschaltung...

  • Page 17: Specifications

    65.5 mm Höhe (mm) Length (L) mm 950 mm Länge (mm) Remark / Achtung: These specifications can be changed without any notice. Obengenannte Spezifikationen können ohne Vorankündigung geändert werden. ETON Electro Acoustic GmbH, Pfaffenweg 21, 89231 Neu-Ulm www.etongmbh.com - info.eton@LPGmbh.com...
