Page 1: Vollaktiv Betrieb

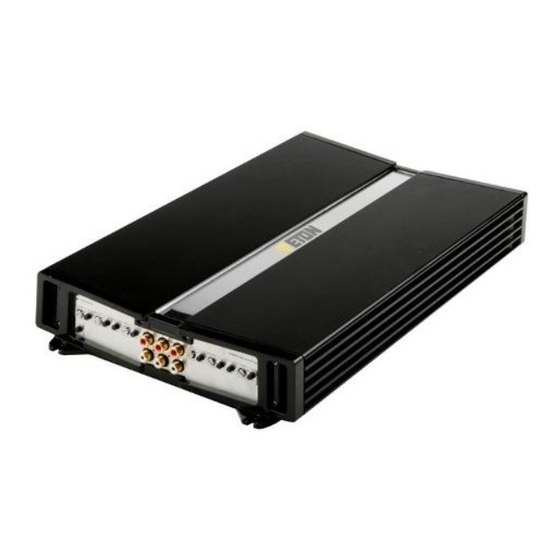

GERMAN HIGH TECHNOLOGY POWER AMPLIFIER PA 4506 PA 4506 EINBAU / BEDIENUNG INSTALLATION / OPERATION... -
Page 2: Table Of Contents
Inhaltsverzeichnis Table of Contents Introduction Einführung Safety Instructions Sicherheitshinweise Before Putting into Operation Vor der Inbetriebnahme Installation Installation Mounting Befestigung Cabling Verkabelung Electric Power Supply Stromversorgung Connections and Adjustments Anschlüsse und Einstellungen Product Description Produktbeschreibung Packing and Contents Verpackung und Inhalt Connection and Operating Anschluss und Bedienung 18-19... -
Page 3: Introduction
Introduction ETON expressly thanks you for deciding to purchase this amplifier and congratulates you on the selection of this excellent product. The ETON amplifiers are a guarantee for outstanding performance. The electrical, mechanical and tonal characteristics will be maintained at the original high standard throughout the entire operational life of this product. -
Page 4: Before Putting Into Operation
Before Putting into Operation Hint The installation and adjustment of the amplifier should only be entrusted to qualified personnel. Please carefully read the operation instructions and follow the given directions regarding connection and adjustment of the amplifier. Warning Before connecting external devices that do not belong to this amplifier, please refer to the corresponding directions contained in the operation instructions for this device. -
Page 5: Cabling
Cabling Attention Use only a cable of sufficient diameter for the power supply connection. Refer to the technical data in appendix. A cable of greater diameter is always recommendable. Hint The diameter of the grounding cable must be at least as large as the diameter of the plus cable. Warning Lay the cables single and one after the other. -
Page 6: Product Description Packing And Contents
- In the case of missing or damaged parts please contact immediately your dealer providing the model name as well as the serial number that is shown on the bottom of the amplifier. The packing includes: Fuse socket Fastening screws Allen wrench (2x) Remote Control Connection and Operating PA 4506 PA 4506... - Page 7 Connection and Operating...
-
Page 8: Connecting Description
Connection Description Entry The amplifier is equipped with three cinch stereo entries (6;7 and 10;11, 15,16). Connect the pre-amplifier signal of your car radio or DVD player etc. to these connectors. The sensitivity controllers (8,12 and 17) are used to adjust the entry signal to the amplifier. Filter The amplifier is equipped with HP and LP filters. -
Page 9: Technical Characteristics
Technical Characteristics Channels Output Power (RMS) Stereo @ 4 Ohm 6 x 83 W Stereo @ 2 Ohm 6 x 150 W Bridged @ 4 Ohm 3 x 300 W T.H.D. <0,03% (4 Ohm) Frequency Response 20 Hz - 100 kHz S/N Ratio >89 dB Separation @ 1 kHz... -
Page 10: Configuration Examples
Configuration Examples 6 Channel Operation Place the connections as shown in the diagram. PA 4506 SOURCE UNIT Left Left Right Right Front Rear Front Rear switched PA 4506 FUSE Filter Selection 6 Channel Operation Place the HP and LP filter switches (21,25,27,35,37) in the OFF position Place the switches (9,13,18) in the STEREO position. - Page 11 Configuration Examples 5 Channel Operation Place the connections as shown in the diagram. PA 4506 SOURCE UNIT Left Left Right Right Front Rear Front Rear switched PA 4506 FUSE Filter Selection 5 Channel Operation Place filter switch (21) in ON position and the filter selection switch (22) in HP position.
-
Page 12: Tri Mode Operation
Tri Mode Operation In tri mode operation the front and rear channels function in bridged mono operation, thus achieving a higher exit performance for addressing your front system. The subwoofer also functions in bridged operation. PA 4506 Left Right Front... -
Page 13: Full Active Operation
Configuration Examples Full active Operation PA 4506 Woofer Woofer Right Left Tweeter Left Tweeter SOURCE UNIT Right switched PA 4506 Filter Selection Full Active System FUSE Place mono/stereo switches (9, 13) in STEREO position Place signal entry selection switch (19) in FRONT position... -
Page 14: Sensitivity Adjustment
First operation Before reconnecting the vehicle battery, ensure that all connections correspond to the instructions contained in this operations manual. Verify that all installation steps are in accordance with the safety regulations. Reduce the volume of your control device to a minimum and switch the device on. If the connections are correct the amplifier will also switch on and the green LED operational display (2) will turn on. -
Page 15: Notizen
Notizen / Notes... - Page 16 Technische Änderungen und Druckfehler vorbehalten. All specifications are subject to change without notice.
