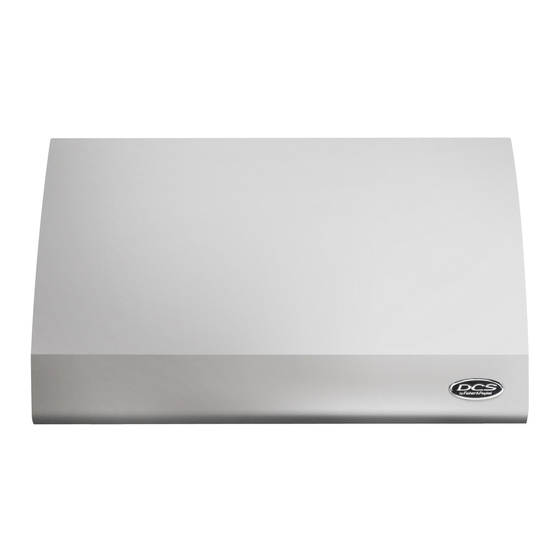

DCS VS30 Use And Care Manual
The professional and euro vent hood
Hide thumbs
Also See for VS30:
- Installation manual (23 pages) ,
- Use and care manual (33 pages) ,
- Use and care manual (26 pages)
Subscribe to Our Youtube Channel
Related Manuals for DCS VS30
Summary of Contents for DCS VS30

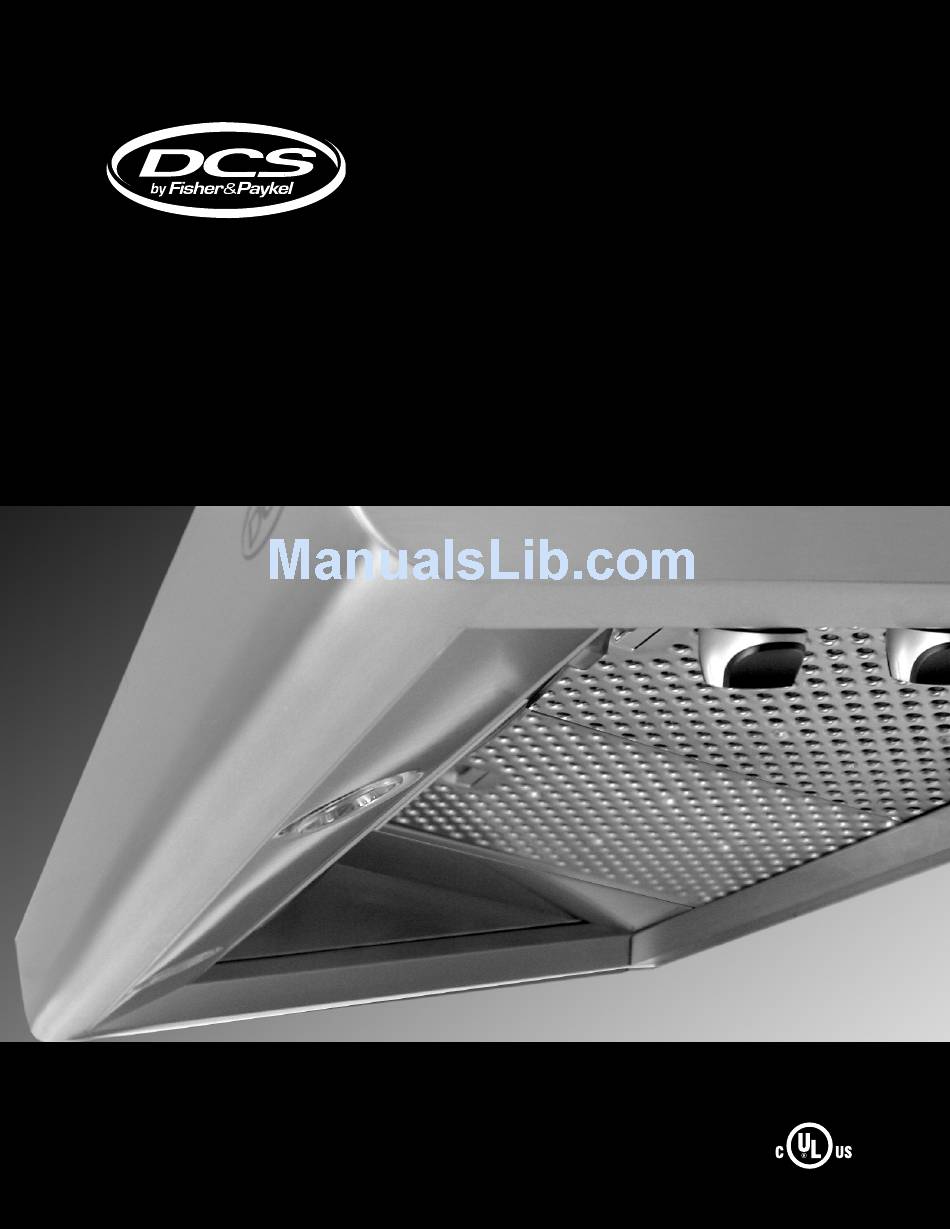

- Page 1 THE PROFESSIONAL AND EURO VENT HOOD Use and Care Guide MODELS: VS30 VS1236 VS36 ES30 VS48 ES36...
- Page 2 SERIAL NUMBER NOTE: Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. DCS by Fisher & Paykel is not responsible for shipping damage. DO NOT discard any packing material (box, pallet, straps) until the unit has been inspected.
- Page 3 A MESSAGE TO OUR CUSTOMERS SAFETY WARNING: Turn off power circuit at service panel and lock out panel, before wiring this appliance. Requirement: 120 V AC, 60 Hz. 15 A Branch Circuit WARNING To reduce the risk of injury to persons in the event of a rangetop grease fire, observe the following: Turn burner off first.
- Page 4 SAFETY PRACTICES AND PRECAUTIONS CAUTION: For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials or vapors WARNING: To reduce the risk of fire, electrical shock, or injury to persons, observe the following : A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
-
Page 5: Safety Practices
SAFETY PRACTICES & PRECAUTIONS WARNING: To reduce the risk of a range top grease fire: A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oil slowly on low or medium settings. B. - Page 6 SAFETY PRACTICES & PRECAUTIONS This Vent Hood system is designed to remove smoke, cooking vapors and odors from the cooktop area. WARNING All wall and floor openings where the vent hood is installed must be sealed. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts.
-
Page 7: Use And Care
USE AND CARE CONTROL PANEL LIGHT Fig. 01 FAN CONTROL Turn to LO, MED, HI or MAX as needed. Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid. It also reduces cooking odors and soiling moisture that create a frequent need for cleaning. - Page 8 USE AND CARE BLOWER The motor is operated by LO/MED/HI/MAX speed control switch. You may change the speed of the motor depending on the amount of grease and smoke you are creating while cooking. ALWAYS USE THE MAX SETTING WHEN GRILLING. FILTERS AND DRIP TRAYS These hoods have reusable metal grease baffles and drip trays.
-
Page 9: Use And Care
USE AND CARE TO CLEAN HOOD SURFACE I For general care, wipe the outside of the stainless steel with sudsy water or household cleaners such as Fantastic® or Formula 409®, rinse well and dry with clean soft cloth to avoid water marks. -
Page 10: How To Obtain Service
Is the circuit breaker tripped or the fuse blown? Is there a power outage in the area? For warranty service, please contact your local service provider or DCS Customer Care Representative at (888) 936-7872. Before you call, please have the following information ready:... -
Page 11: Warranty
WARRANTY LIMITED WARRANTY When you purchase a new DCS Ventilation Product for personal or consumer use you automatically receive a One year Limited Warranty covering parts and labor for the entire product, and a Five year Limited Warranty on the switches and motor (parts only) for servicing within the 48 mainland United States, Hawaii, Washington D.C and Canada. - Page 12 Please read your Use and Care Guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com.
- Page 13 Fisher & Paykel Appliances, Inc. 5900 Skylab Road, Huntington Beach, CA 92647 Customer Care: 888.936.7872 Fax: 714.372.7003 www.dcsappliances.com As product improvement is an ongoing process, we reserve the right to change specifications or design without notice. Nous améliorons constamment ses produits et se réserve le droit de modifier les spécifications ou la conception de ses produits sans aucun préavis.
