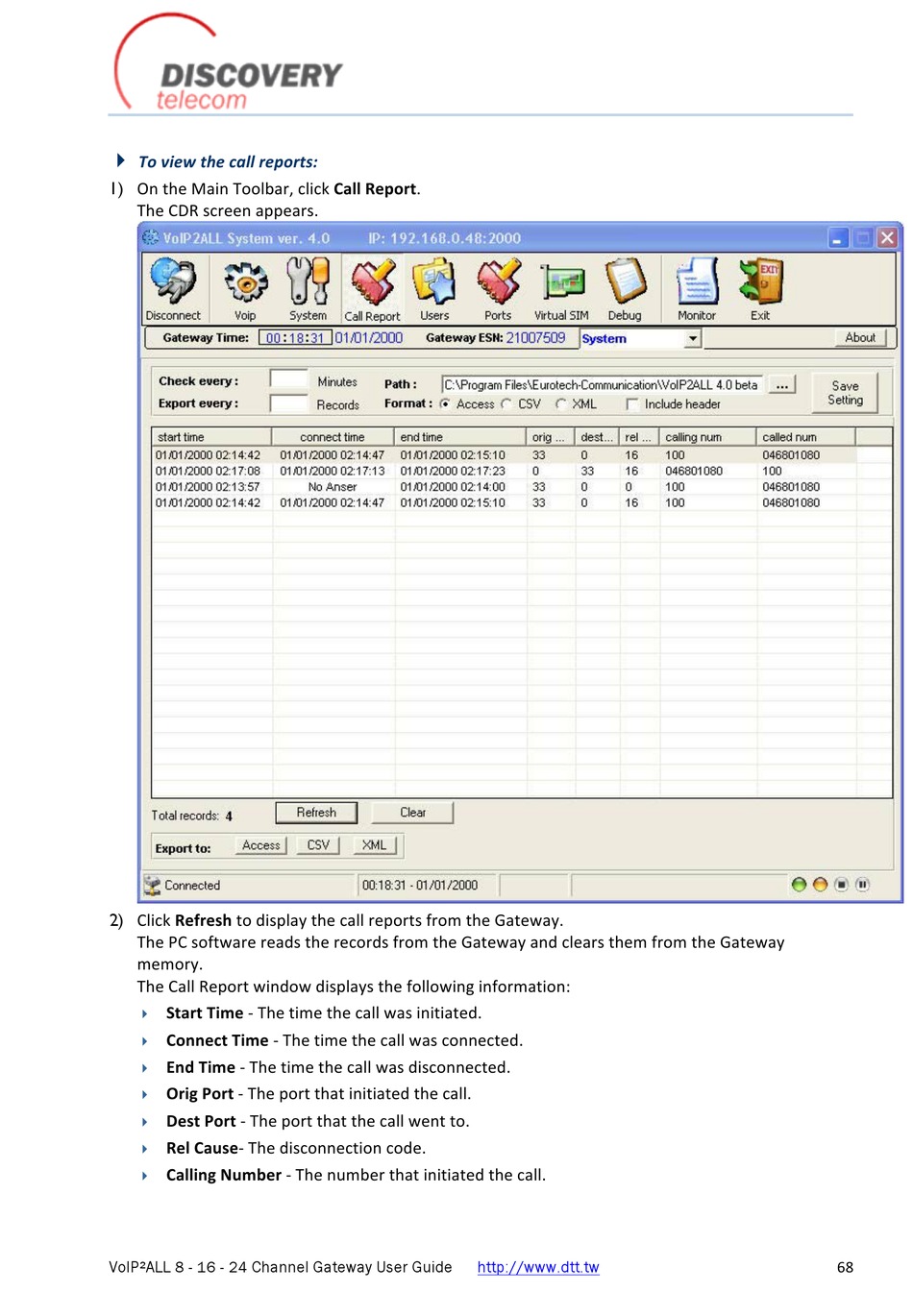

To v iew t he c all r eports:
1) On t he M ain T oolbar, c lick C all R eport.
The C DR s creen a ppears.
2) Click R efresh t o d isplay t he c all r eports f rom t he G ateway.
The P C s oftware r eads t he r ecords f rom t he G ateway a nd c lears t hem f rom t he G ateway
memory.
The C all R eport w indow d isplays t he f ollowing i nformation:
Start T ime -­‐ T he t ime t he c all w as i nitiated.

Connect T ime -­‐ T he t ime t he c all w as c onnected.

End T ime -­‐ T he t ime t he c all w as d isconnected.

Orig P ort -­‐ T he p ort t hat i nitiated t he c all.

Dest P ort -­‐ T he p ort t hat t he c all w ent t o.

Rel C ause-­‐ T he d isconnection c ode.

Calling N umber -­‐ T he n umber t hat i nitiated t he c all.

