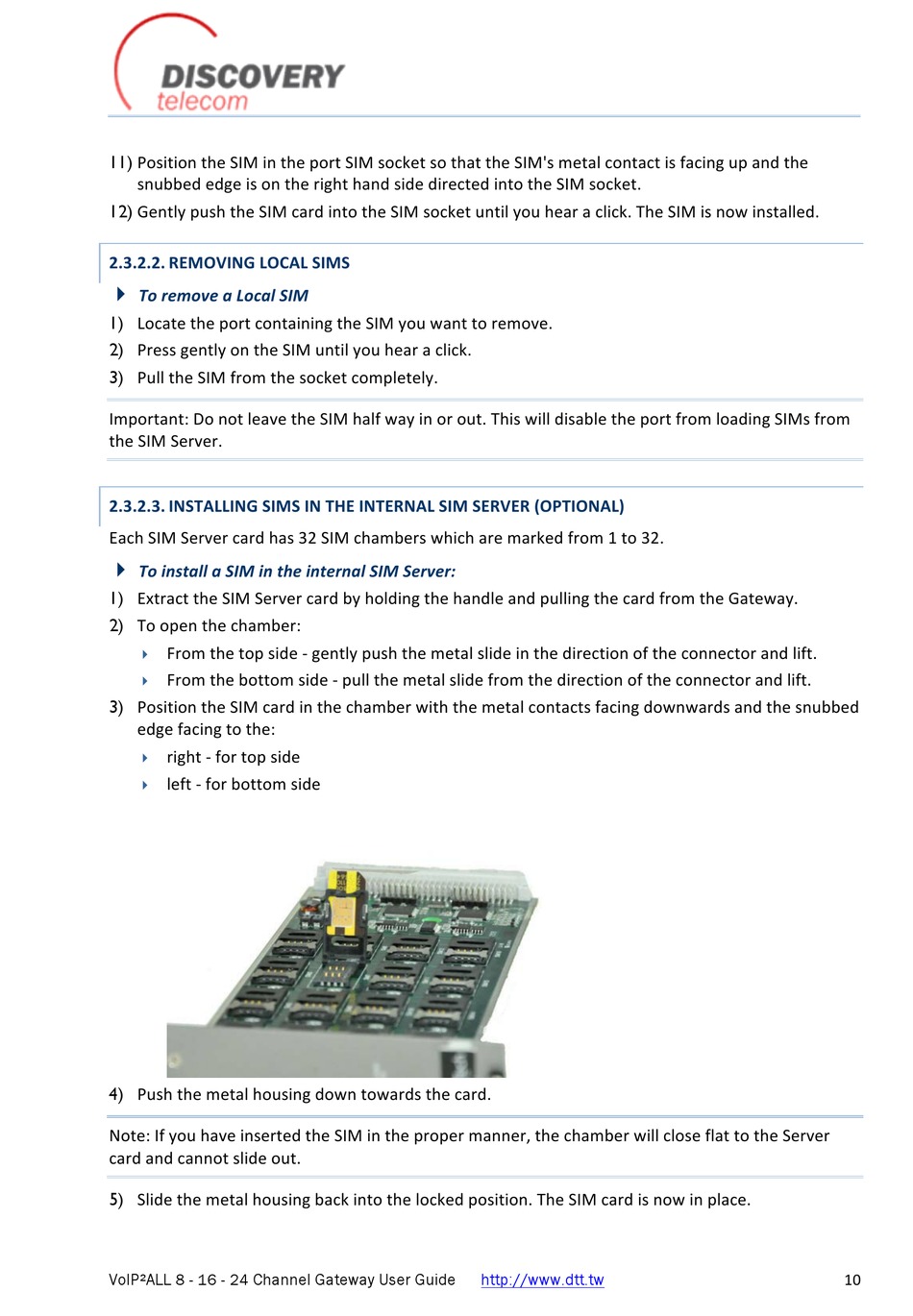

11) Position t he S IM i n t he p ort S IM s ocket s o t hat t he S IM's m etal c ontact i s f acing u p a nd t he
snubbed e dge i s o n t he r ight h and s ide d irected i nto t he S IM s ocket.
12) Gently p ush t he S IM c ard i nto t he S IM s ocket u ntil y ou h ear a c lick. T he S IM i s n ow i nstalled.
2.3.2.2. REMOVING L OCAL S IMS

To r emove a L ocal S IM
1) Locate t he p ort c ontaining t he S IM y ou w ant t o r emove.
2) Press g ently o n t he S IM u ntil y ou h ear a c lick.
3) Pull t he S IM f rom t he s ocket c ompletely.
Important: D o n ot l eave t he S IM h alf w ay i n o r o ut. T his w ill d isable t he p ort f rom l oading S IMs f rom
the S IM S erver.
2.3.2.3. INSTALLING S IMS I N T HE I NTERNAL S IM S ERVER ( OPTIONAL)
Each S IM S erver c ard h as 3 2 S IM c hambers w hich a re m arked f rom 1 t o 3 2.

To i nstall a S IM i n t he i nternal S IM S erver:
1) Extract t he S IM S erver c ard b y h olding t he h andle a nd p ulling t he c ard f rom t he G ateway.
2) To o pen t he c hamber:
From t he t op s ide -­‐ g ently p ush t he m etal s lide i n t he d irection o f t he c onnector a nd l ift.

From t he b ottom s ide -­‐ p ull t he m etal s lide f rom t he d irection o f t he c onnector a nd l ift.

3) Position t he S IM c ard i n t he c hamber w ith t he m etal c ontacts f acing d ownwards a nd t he s nubbed
edge f acing t o t he:
right -­‐ f or t op s ide

left -­‐ f or b ottom s ide

4) Push t he m etal h ousing d own t owards t he c ard.
Note: I f y ou h ave i nserted t he S IM i n t he p roper m anner, t he c hamber w ill c lose f lat t o t he S erver
card a nd c annot s lide o ut.
5) Slide t he m etal h ousing b ack i nto t he l ocked p osition. T he S IM c ard i s n ow i n p lace.
