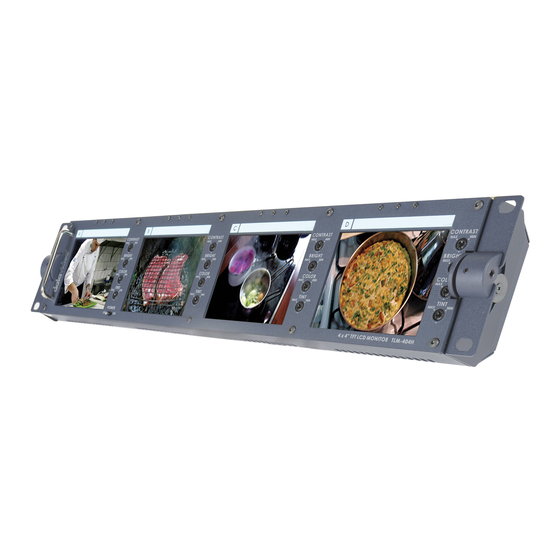

Datavideo TLM-404H is a 4x4" High quality TFT
LCD monitors, 2U height design for standard 19"
rack mount. NTSC/PAL video format auto
recognition with video pass through 75-ohm
self-terminated video output connector. The "AUX"
input provides options for external format
converters such as SDI and DV input converter.
The tilt hinges let you tilt the screen +/- 30 degree
with contrast, brightness, color and tint (Tint only
available for NTSC) controls for a best view
quality of display.

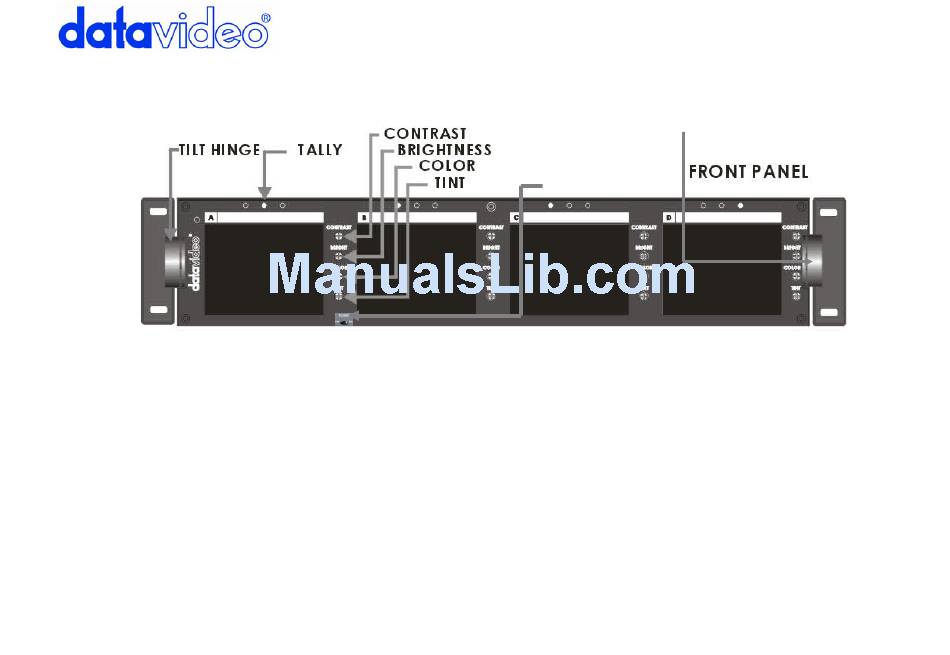

TLM-404H Quick Start Guide
Specifications:
LCD Display
Resolution
Aspect Ratio
Brightness (luminance)
Video Input
Video Output
Video System
Tally Indication
Power Consumption
Dimension
STRONG LOCKING
POWER
4" TFT LCD active matrix
320 x 234 (960x234 dots)
4:3
350 cd/m2
1.0 Vp-p, 75 Ohm
Loop-through with self 75 Ohm-terminated
NTSC/PAL auto recognition
Three-Way Tally LED indicators
DC12Volt. 50W.
35W for LCDs display, 15W for Aux Adaptor
3.5" x 2.8" x 19" (H x D x W), 2U Rack space
☉
