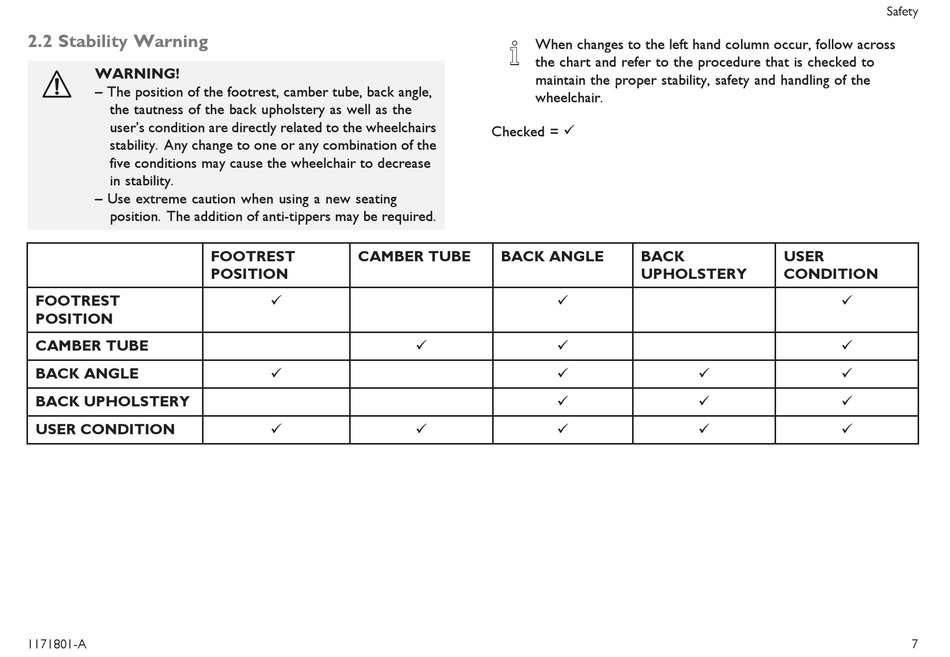

2.2 Stability Warning

WARNING!
– The position of the footrest, camber tube, back angle,
the tautness of the back upholstery as well as the
user's condition are directly related to the wheelchairs
stability. Any change to one or any combination of the
five conditions may cause the wheelchair to decrease
in stability.
– Use extreme caution when using a new seating
position. The addition of anti-tippers may be required.
FOOTREST
POSITION
CAMBER TUBE
BACK ANGLE
BACK UPHOLSTERY
USER CONDITION
1171801-A
FOOTREST CAMBER TUBE
POSITION
ü
ü
ü
When changes to the left hand column occur, follow across
the chart and refer to the procedure that is checked to
maintain the proper stability, safety and handling of the
wheelchair.
Checked = ü
BACK ANGLE
ü
ü ü
ü
ü
ü ü
BACK USER
UPHOLSTERY CONDITION
ü
ü
ü
Safety
ü
ü
ü
ü
ü
