Travis Industries 864 HO NB Installation Instructions Manual

Dancing-fyre burner
Hide thumbs Also See for 864 HO NB:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Instruction and Installation Manual

Table of Contents

Compatibility .............................................................................................................................................................. 1
Packing List ............................................................................................................................................................... 1
Installation Tips .......................................................................................................................................................... 1
Installation Warnings ................................................................................................................................................. 2
Burner Installation ...................................................................................................................................................... 2
Log Installation ........................................................................................................................................................... 7
Ember Placement................................................................................................................................................. 11
Rock Wool Placement .......................................................................................................................................... 11

Compatibility

864 HO NB

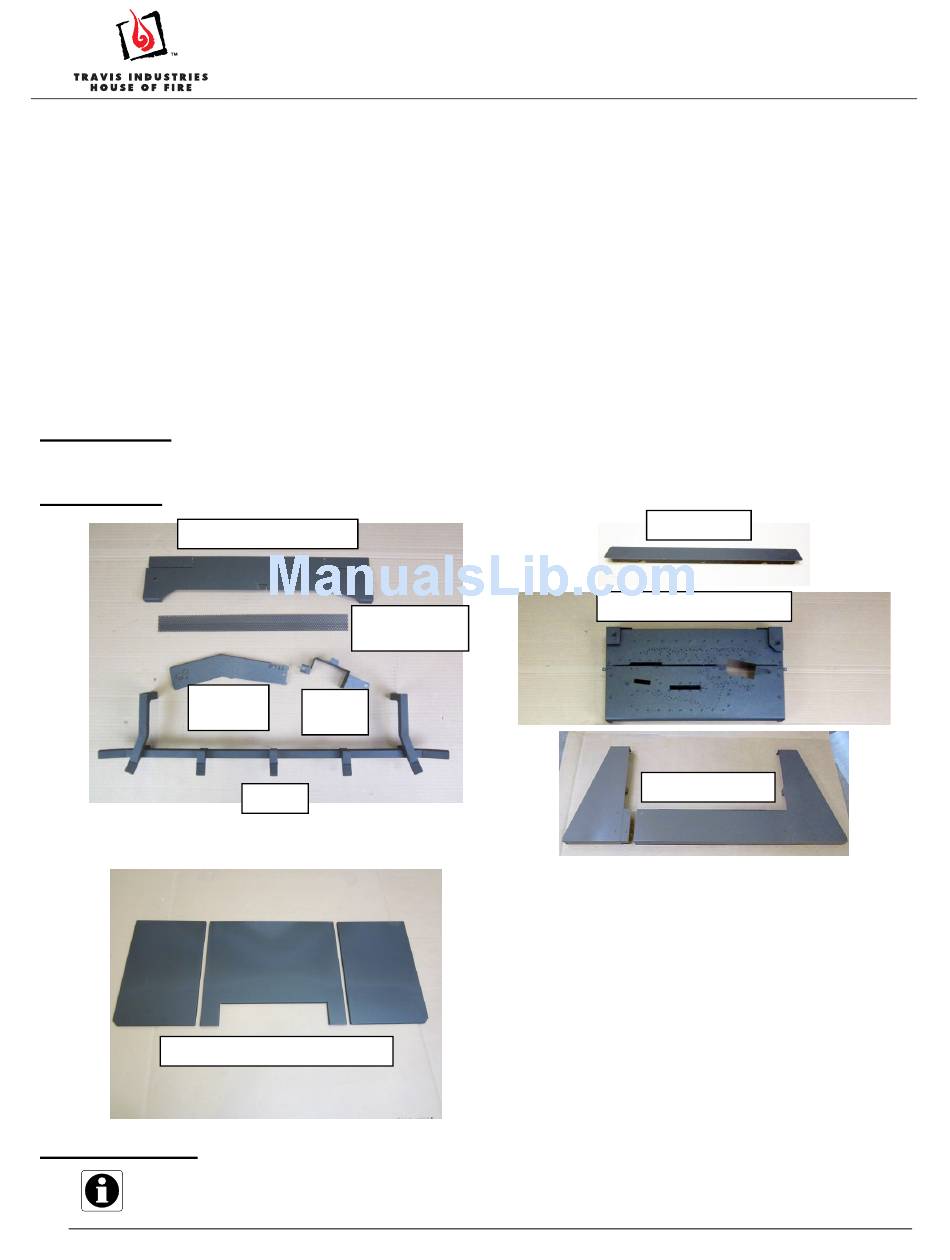

Packing List

Rear Log Stand (solid)
Left Log
Stand
Left, Rear, and Right Firebacks

Installation Tips

If using propane (LP), convert the appliance before installing the burner.
Page 1 of 11
864 HO NB Dancing-Fyre Burner
Installation Instructions
Air Deflector
(perforated)
Pilot
Shield
Grate
17601701 - 2/27/14
(sku: 96900141)
Burner Skirt
Dancing-Fyre Burner
Floor Fireback
(2) 8-32 x 3/8" Screws
Front & Rear Andiron Brackets (Optional)
Log Set with Embers and Rock Wool
12-ounce Bag of Embers
© Travis Industries, Inc.









Advertisement

loading
Need help?

Need help?

Do you have a question about the 864 HO NB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Travis Industries 864 HO NB

Summary of Contents for Travis Industries 864 HO NB

  • Page 1: Table Of Contents

    864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) Table of Contents   Compatibility ................................1   Packing List ................................1   Installation Tips ................................1   Installation Warnings ..............................2   Burner Installation ..............................2   Log Installation ................................7  ...

  • Page 2: Installation Warnings

    The burner must be correctly positioned before installing the logs. Make sure the burner is fully seated and the pilot is properly aligned. Burner Installation NOTE FOR OLDER 864 HO NB UNITS Older units were shipped with front and side burner skirts pre-installed. Remove these skirts before proceeding.
  • Page 3 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) 1. Remove the 3 existing screws from the firebox floor. 2. Install the burner skirt with the 3 screws removed earlier. Figure 1: Burner skirt installed, showing location of screws 3. Install the firebacks as shown below.
  • Page 4 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) c) While holding the rear fireback, place the side firebacks. d) Replace the clips removed in step (a) to secure the firebacks. a) Assemble the floor fireback by installing (2) 8-32 x 3/8" screws in the main part of the fireback.
  • Page 5 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) 5. Install the burner. Make sure it is fully seated (pushed to the right) and level with the fireback floor. 6. Install the grate. 7. Install the pilot shield into the burner.
  • Page 6 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) 8. Place the rear log stand onto the burner, as shown below. a) Bend the 3 tabs on the rear log stand. b) Place the rear log stand at the back of the burner.
  • Page 7 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) Andiron Installation The optional andirons should be installed before installing the logs. See the directions below for installation. Remove the grate from the firebox. Remove and discard the two andiron prongs (see step “a”...

  • Page 8: Log Installation

    864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) Log Installation 1. Place the rear log on the rear log stand. Make sure the pins insert into the holes in the bottom of the log. NG units: Slide the log forward.
  • Page 9 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) 3. Place the right log so the two holes in the bottom of the right log fit over the two pins on the pilot shield. The indentation in the log (shown below) allows the pilot flame to exit freely.
  • Page 10 864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) 5. Place the left twig as shown below. The left twig has a hole on the bottom that fits over the pin on the rear log. 6. Place the right twig as shown below. The right twig has a hole on the bottom that fits over the pin on the rear log.

  • Page 11: Ember Placement

    864 HO NB Dancing-Fyre Burner Installation Instructions (sku: 96900141) Ember Placement 7. Place a layer of embers along the edges of the burner, rivets, and fireback floor to enhance the aesthetics of the firebox. Do not place embers over any burner holes. See the photos below.
