- Page 2 LKS-SH5P / SH8P Rev.B Introduction LKS-SH5P/LKS-SH8P 10BASE-T/100BASE-TX Switches which are high-performance Fast Ethernet switches designed for the network core. It provides 5/8 10BASE-T/100BASE-TX ports that can significantly improve the performance of your network’s backbone, and deliver the throughput needed to support a broad range of advanced network applications. With...
-
Page 3: Package Contents

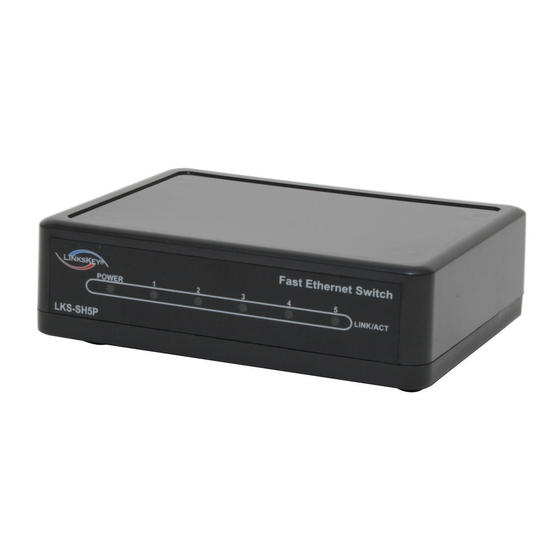

4.1 Front Panel POWER LED This LED light is on when power is present. 5 Port LED (LKS-SH5P) Indicates the status of each of the 5 ports. 8 Port LED (LKS-SH8P) Indicates the status of each of the 8 ports. - Page 4 LKS-SH5P / SH8P Rev.B 4.2 LED Displays DC-input connect power adapter 5 Port Switch (LKS-SH5P) connect computers, hub’s, switches or other devices. 8 Port Switch (LKS-SH8P) connect computers, hub’s, switches or other devices.
-
Page 5: Specifications
LKS-SH5P / SH8P Rev.B Specifications IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Flow Control - Ethernet : 10Mbps (half-duplex) 20Mbps (full-duplex) Data Transfer Rate - Fast Ethernet : 100Mbps (half-duplex) 200Mbps (full-duplex) Interface 10/100Mbps Auto-MDI/MDI-X Ports... -
Page 6: Fcc Warning
LKS-SH5P / SH8P Rev.B FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
