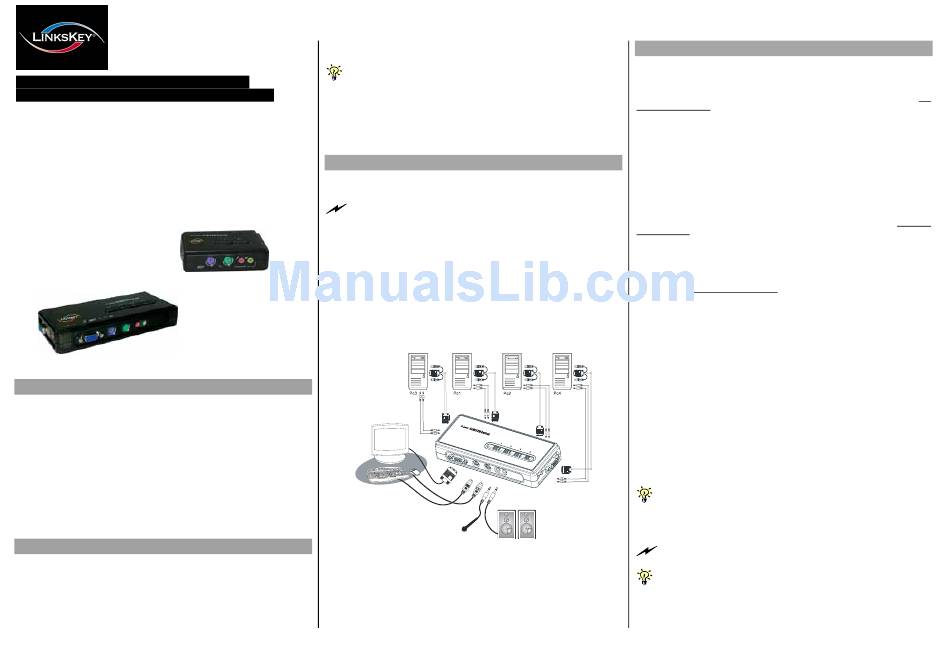

Linkskey LKV-S02ASK Quick Installation Manual

Quick I nstallation G uide
User-definable Hotkey Preceding Sequence
Simultaneous /independent PC/Audio Switching
LKV-S02ASK/LKV-S04ASK
2/4-port Slim Palmtop PS/2 KVM Switch
with Audio&Mic
Quick Installation Guide
Thank you for purchasing the LKV-S02ASK/LKV-S04ASK
Slim Palmtop PS/2 KVM Switch with Audio&Mic
our highly reliable and quality product, user can enjoy countless
benefits from using it.

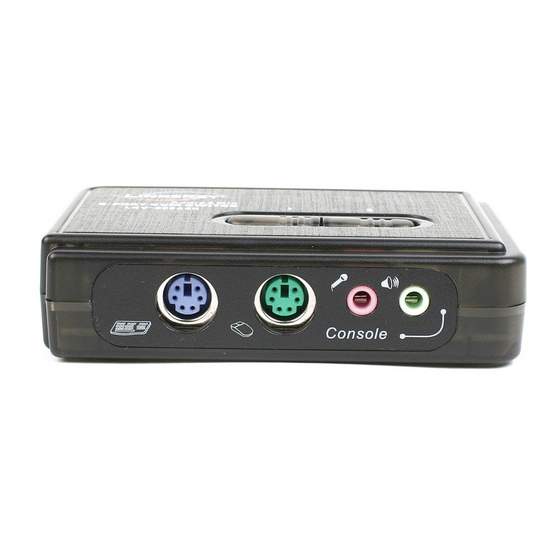

LKV-S02ASK (w/ Audio&Mic)
LKV-S04ASK (w/ Audio&Mic)

Introduction

LKV-S02ASK/LKV-S04ASK
The
Palmtop PS/2 KVM Switch with the
switching function. It allows you to access, control, boot and
reboot multiple PS/2-enabled computers using only one keyboard,
video, mouse, and one speaker set and one microphone. It also
offers user-programmable simultaneous/independent switching of
PC channel and Audio/Mic channel for flexible multimedia
application with KVM switching. For users who might need to
use a hotkey preceding sequence other than two scroll locks, we
also offer five key alternatives for free configuration.

Before you install

LKV-S02ASK/LKV-S04ASK
The default setting of the
appropriate for most systems. The KVM Switch is a Plug-and-
Play device for installation. In fact, you do not need to configure
the KVM Switch before installation.
For the first time installation of the KVM Switch, please follow the
instructions below for correct setup sequence:
The correct setup sequence is ......
(1) Connect the shared keyboard, monitor and mouse and
the speaker set and the microphone to the KVM Switch
first, and then connect your computers.
(2) Power up your connected computers...
Since the KVM Switch receives power from the computer's PS/2 interface,
it is powered up when you connect the KVM Switch to a PC.

Out-of-the-box Installation

Take the KVM Switch out of the box and begin installation....
! With
DO NOT TRY to connect the KVM Switch to the computers while
the computers are still in powered-on states. Otherwise, the computer
will have difficulty recognizing your shared keyboard and mouse.
Step 1. Make sure all the computers that are to be connected to
the KVM Switch and their peripherals are in powered-off
state.
the following steps.
Step 2. Connect the shared PS/2 keyboard, mouse, monitor,
speaker set and microphone to the KVM switch.
Step 3. Connect each of your computers to the KVM switch,
using appropriate KVM & Audio/Mic cables.
is a 2/4-port Slim
audio and microphone
is
Step 4. (Now your KVM Switch should have been powered-up....)
Power up the connected computers one by one. After
your computers are powered up, the keyboard and
mouse will be recognized and now you can begin
operating the KVM switch.
If not, power them off before you proceed with
LKV-S04ASK Configuration Diagram
Applicable models: LKV-S02ASK / LKV-S04ASK

Easy Operation

There are two methods to control your KVM Switch for PC
switching: using the face-panel push button or a hotkey
sequence. For audio/mic switching, use the hotkey command.
Quick Reference Sheet

Face-panel buttons

The face-panel buttons allows you a direct control over PC port
switching. Simply press the button to switch PC port. By default,
PC port switching and Audio/Mic port switching are bound
together (both will be switched simultaneously).
If you want to enable the binding of PC and audio/mic port
switching, use the hotkey sequence, ScrLk +ScrLk + Q. To
disable the binding again, just hit ScrLk +ScrLk + W.
Reference Sheet

Keyboard hotkey

A keyboard hotkey sequence consists of at least three specific
keystrokes:
See Quick Reference Sheet
Hotkey sequence = [ScrLk]
* User-definable = SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK
Hotkey preceding sequence configuration: For users who
want to use a preceding sequence other than two consecutive
Scroll Locks, there is also one convenient way to configure it:
Step 1. Hit ScrollLock + ScrollLock + H, then two beeps will signal
readiness for new preceding sequence selection. [or Press and
hold down the last front-panel button (Button 2 or Button 4) until
you hear two beeps, and then release the button.]
Step 2. Select and press the key you would like to use as your preceding
sequence (SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK
keys are available for selection) and you'll hear a beep for
selection confirmation. Now you can use the new preceding
sequence to execute your hotkey commands.
Another way to activate the Hotkey preceding sequence
configuration is to press the last front-panel button (button 2/button 4)
for over 3 seconds to set the KVM switch into hotkey configuration mode.
Then you select and press the key that you'll choose as the preceding
sequence.
Each keystroke within a hotkey sequence should be pressed within 2
seconds. Otherwise, the hotkey sequence will not be validated.
For detailed Hotkey sequences and their corresponding functional
commands, please refer to the Quick reference sheet.
Rev. 1.4 Copyright© All rights reserved. Nov 2005
See
See Quick
* *
+ [ScrLk] + Command key(s)
