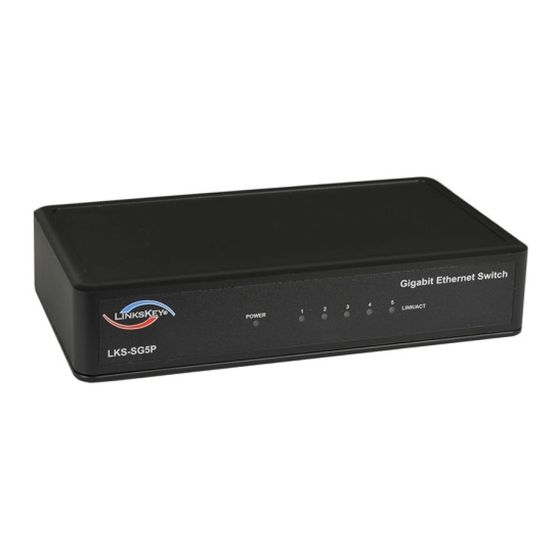

- Page 2 Gigabit Ethernet Switch. The Switch provides 5/8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDI-X function. Every port can work as uplink port or common port. LKS-SG5P / LKS-SG8P provides a cost-effective, high performance, non-disruptive, smooth evolution into gigabit solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.
-
Page 3: Hardware Installation
LKS-SG5P / LKS-SG8P Hardware Installation Connect the AC Power Adapter to the LKS-SG5P / LKS-SG8P, and then to a power outlet. Connect an Ethernet network cable from the computer to an available Ethernet port on the LKS-SG5P /LKS-SG8P... - Page 4 LKS-SG5P / LKS-SG8P Power LED Green：Power is on Not Illuminated：Power is off Link/Act LED Green(Solid)：indicate that the port is operating at 10 or 100Mbps. Orange(Solid)：indicate that the port is operating at 1000Mbps. Blinking : indicate that there is activity of data occurring at the port.
-
Page 5: Technical Specifications
LKS-SG5P / LKS-SG8P Technical Specifications IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, Standards and Protocol IEEE 802.3az, IEEE 802.3x Store and Forward Transfer Method 5/8 x 10/100/1000Mbps Auto-Negotiation ports Number of Ports Ethernet：Cat. 3, 4, 5 up to 100m Fast Ethernet：Cat. 5, 5e up to 100m Network Media Gigabit Ethernet：Cat. -
Page 6: Fcc Warning
LKS-SG5P / LKS-SG8P FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
