Linkskey LDV-302ARC Quick Installation Manual

Quick Installation Guide
DVI Single Link Video up to 1920 x 1200 (digital only)
QuickSwitch button for easy switching by a mere flip!
Switching Software Client for Windows & Mac included!!
Software Hotkeys & Universal Hotkeys both available!!!
2 x USB 2.0 Hub Ports for keyboard, mouse or high-
speed USB devices!!!!
LDV-302ARC

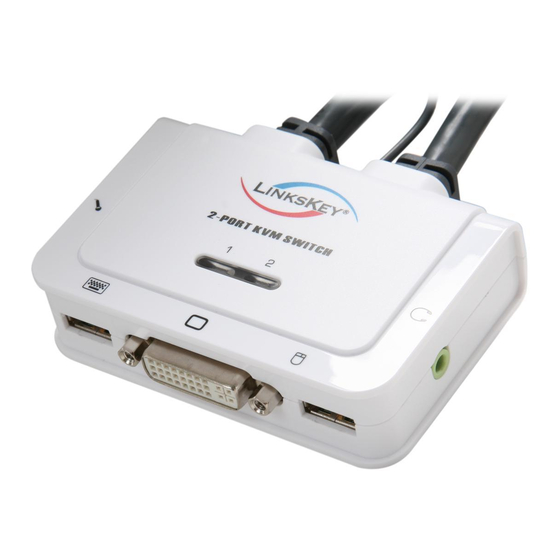

2-port DVI USB Audio&Mic KVM
w/ Integrated Cable
Quick
Installation
Thank you for purchasing the LDV-302ARC DVI USB Audio &
Mic KVM Switch! With our highly reliable and quality product,
user can enjoy countless benefits from using it.
LDV-302ARC
Introduction
The LDV-302ARC is a 2-port DVI USB Audio & Mic KVM
Switch with 2 x fixed KVM cables and 1 x QuickSwitch button for
wired remote control. It also provides audio and microphone
switching function for uninterrupted multimedia experience. It
allows you to access, control, boot, and reboot multiple
multimedia computers using only one USB keyboard, mouse,
DVI monitor and a speaker set and microphone.
For computers running Windows/Mac operating systems, it also
provides an innovative and easy-to-use KVM Switcher Software
-- small Windows/Mac client application to facilitate your KVM
switching operations such as computer selection and hotkey
sequence programming, autoscanning, autoscan delay time
programming, independent/simultaneous audio & computer
Switching, etc.
Applicable model: LDV-302ARC
The LDV-302ARC DVI USB Audio & Mic KVM Switch offers
USB 2.0 interface technology for Plug-and-Play and hot-
pluggability. In addition to connect to mouse or keyboard, those
two USB 2.0 ports can also be connected to other high-speed
USB devices. Users can enjoy maximum flexibility and
convenience with its compact and one-piece design.
Out-of-Box Installation
Step 1. Insert the Support CD-ROM into your CD-ROM drive,
Guide
and the installation interface will pop up (If the Autorun
feature has not been enabled on your computer. Just
find the Autorun.exe on the CD-ROM and double-click it
to start.).
Step 2. For Windows/Mac: Just click the "Software Installation
for Windows" to start Windows switcher software
installation. To install Mac version, please copy the file
(*.pkg format) to the local hard disk and install it from
there. Follow the instructions to completion. If the
installation is complete, you will see a KVM Switcher
icon on the system tray of your desktop. Right-click to
evoke the operation menu and double-click to evoke
configuration box. For operation details of the KVM
Switcher software, please refer to the following sections.
Windows
No live connection detected
Current active computer channel is on port 1
Current active computer channel is on port 2
2-port DVI USB KVM w/ Audio&Mic Plus QuickSwitch Button for wired remote control
Step 3. Connect a set of the fixed KVM/Audio&Mic cables to a
computer's connectors. Connect another set of cables
to another computer. Now you can operate the KVM
Switch immediately.
Mac OS
Ways for KVM Switch Operation
