Page 1: Gigabit Ethernet
Gigabit Ethernet Switch User Manual LinksKey LKS-SG2419 Gigabit Ethernet Switch User Manual Rev. 1.0... -
Page 2: Safety Guidelines
Gigabit Ethernet Switch User Manual Safety Guidelines Observe the following to avoid any potential harm caused from improper use. For your safety, do not open the unit’s shell/outer case The unit operates correctly only within 100-240 AC voltage range rating ... -
Page 3: Table Of Contents
Gigabit Ethernet Switch User Manual Table of Contents Safety Guidelines ..................... 2 Chapter 1 Overview ........................4 1.1 Product Overview ..................... 4 1.2 Features ......................4 1.3 Appearance Overview ..................5 1.4 Package Contents .................... 5 Chapter 2 Installation .......................6 2.1 Installation Considerations ................6 2.2 Installation Methods .................. -
Page 4: Chapter 1 Overview

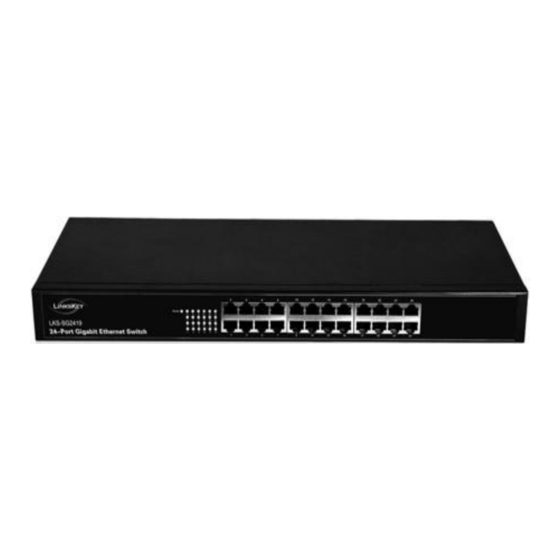

Chapter 1 Overview 1.1 Product Overview The Linkskey LKS-SG2419 Gigabit Ethernet Switch meets data transmission demands of Internet bar/enterprise in one cost-effective, rack mountable and green design. All 24 RJ45 ports support auto MDI/MDI-X, no need to worry about the cable type, simply plug and play. -
Page 5: Appearance Overview
Figure 1. Switch Front Panel Back Panel: Figure 2. Switch Back Panel 1.4 Package Contents Open the package and verify the following items: Ethernet Switch LKS-SG2419 Gigabit 1 x Power Cord 1 x User Manual 4 x Rubber Foot Pad ... -
Page 6: Chapter 2 Installation
6. Ensure operating power supply accords with rated input standard. 2.2 Installation Methods There are two ways to physically install the LKS-SG2419 24-port Gigabit Switch: Set the Switch on an operation desk and mount the Switch in a standard-sized, 19-inch rack. - Page 7 Gigabit Ethernet Switch User Manual 2. To mount the switch in a 19-inch rack, do as follows: 1) Make sure the rack is stable and well grounded. 2) Attach the included mounting brackets to both sides of the switch with the included screws.
-
Page 8: Chapter 3 Connect Switch To A Terminal
Gigabit Ethernet Switch User Manual Chapter 3 Connect Switch to a Terminal 1. Connect the switch to a power outlet nearby using the included power cord. Make sure the power supply accords with specified rating: 100-240V~ 50/60Hz. Figure 6. Connect switch to a power outlet 2. -
Page 9: Chapter 4 Troubleshooting
Gigabit Ethernet Switch User Manual Chapter 4 Troubleshooting 4.1. Power LED doesn’t light up. Check the following: a) Check whether the power cord is correctly connected or not. b) Verify that power specification accords with specified rating. 4.2. Link/Act LED doesn’t light up. Problems and solutions may be: ... -
Page 10: Appendix Technical Specifications
Gigabit Ethernet Switch User Manual Appendix Technical Specifications General Features IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, Standard IEEE 802.3x, IEEE 802.3az(Energy saving) Protocol CSMA/CD Ethernet Ethernet / Fast Ethernet Gigabit Ethernet Transmission Rate 10 / 100Mbps（half duplex） 2000Mb （full duplex） 20 / 200Mbps（full duplex）... - Page 11 Gigabit Ethernet Switch User Manual FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
