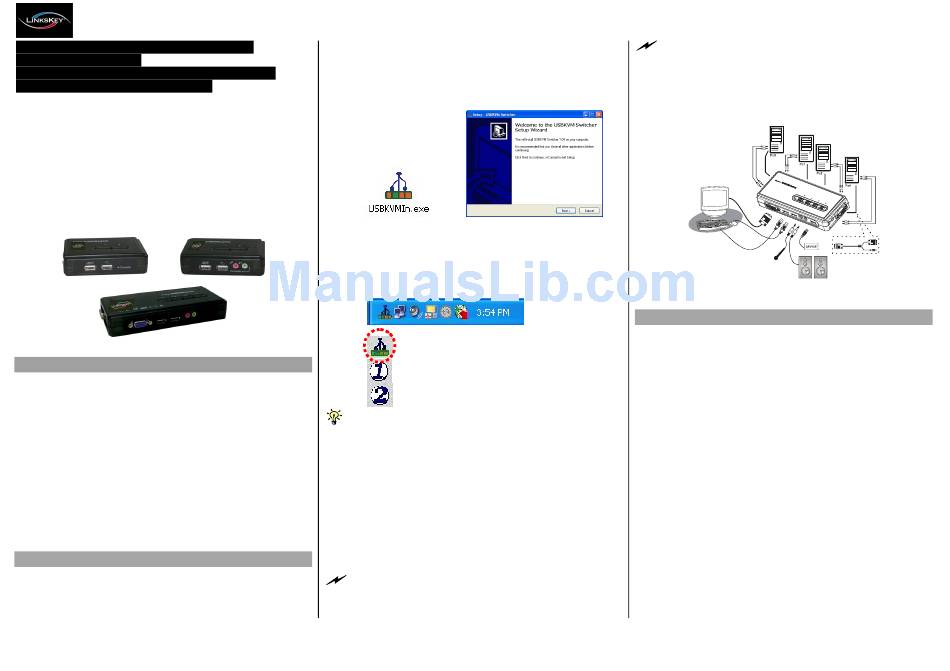

Linkskey LKU-S02ASK Quick Installation Manual

Quick Installation Guide
KVM Switching Client Software for Windows

User-definable Hotkeys

Independent/Simultaneous Audio&PC Switching

Autoscan Delay Time Programmable

LKU-S02SK / LKU-S02ASK / LKU-S04ASK
2/4-port Slim Palmtop USB KVM Switch
w/ optional Audio&Mic
Quick Installation Guide
Thank you for purchasing the LKU-S02SK / LKU-S02ASK /
LKU-S04ASK Slim Palmtop USB KVM Switch w/ Audio & Mic.
With our highly reliable and quality product, user can enjoy co-
untless benefits from using it.

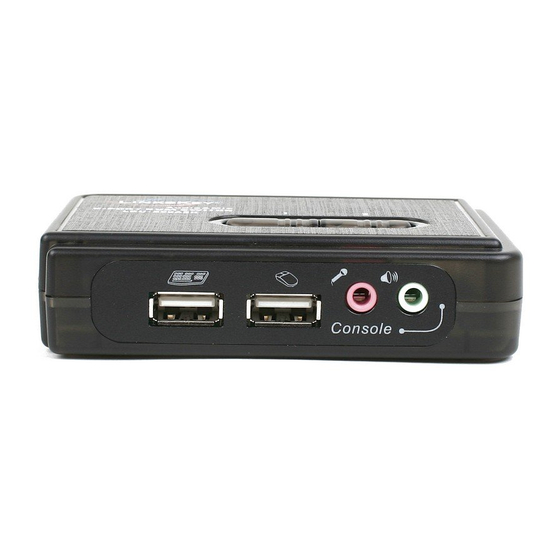

LKU-S02SK LKU-S02ASK (w/ Audio&Mic)
LKU-S04ASK (w/ Audio&Mic)

Introduction

The LKU-S02SK / LKU-S02ASK / LKU-S04ASK is a 2/4-port Slim
Palmtop USB KVM Switch with optional audio and microphone
switching function. It allows you to access, control, boot and
reboot multiple USB-enabled computers. The independent
audio/mic switching function allows an uninterrupted audio
experience on a same connected computer even when you
switch to another computer.
For PCs running Windows systems, it provides an innovative and
easy-to-use KVM Switcher Software -- a small windows client
application to facilitate your KVM switching operations such as
PC selection and hotkey sequence programming, autoscanning,
autoscan delay time programming, independent / simultaneous
audio & PC Switching, etc.

Out-of-the-box Installation

Take the Companion Diskette/CDROM and the KVM Switch
out of the box and follow the steps below for installation....
(Skip to step 2 for non-windows based syystems.)
Step 1. Insert the companion CD ROM into your CD drive, and
the installer program, USBKVMIn.exe, will be run (or
you can find it with the Explorer and double-click its
software icon to start installation). Complete the
software installation on each of the computers to be
connected to the KVM Switch.
After the installation is completed, you will see a KVM
Switcher icon on the system tray of your window
desktop. Just right click to evoke the operation menu
and double-click to evoke configuration box. For
operation details of the KVM Switcher software, please
refer to the Operation Quick Reference.
: No live connection detected
: Current active PC channel is on port 1
: Current active PC channel is on port 2
The KVM Switcher Software supports only the Windows operating
system on PC platforms. For other OS platforms, you can use the key-
board hotkey sequence - ScrLk + ScrLK - to switch PC. This hotkey
sequence is not available on MacOS and Linux, however push button is
available for all OS platforms.
Step 2. Connect the shared USB keyboard, mouse, monitor,
speaker/headphone and microphone each to its port on
your KVM Switch.
Step 3. Connect each KVM PC port to a computer, using the
slim 3-in-1 KVM combo cable and the audio/mic cable.
After you have connected the KVM and computers
properly, Now you can operate the KVM Switch
immediately.
Some older computers with USB interface might need to manually
enable the USB option in the BIOS settings before you can use any
USB devices. If your USB interface does not work, please check the
USB option status in the BIOS.
Applicable models: LKU-S02SK / LKU-S02ASK / LKU-S04ASK
If you use Windows 95/98/SE and has not yet installed a USB
mouse on your computer, there might be an error message telling
you that mouse is not detected and prompting you to decide whether
to ignore the same message in the future, and yet you found there is
no mouse movement to disable this message....So it is suggested that
you should installed your USB mouse on your computer first, before
connecting it to this KVM Switch.
LKU-S04ASK Configuration Diagram

Easy Operation

There are three methods to control your KVM Switch for PC
switching: using the face-panel push buttons, the hotkey
sequence, or the windows software application.
Face-Panel Buttons
The face-panel buttons allows you a direct control over PC port
switching. Simply press the button to switch PC port. By default,
PC port switching and Audio/Mic port switching are unbound
(either will be switched independently).

Keyboard hotkey

A keyboard hotkey sequence consists of at least two specific
keystrokes:
Universal hotkey = ScrLK + ScrLk
Usage: Hit ScrLK key twice within 2 seconds.
Hotkey Combination = Ctrl+ Alt + [Command key]
Usage: Hold CTRL and ALT keys together and hit command key.
Note: The command key is user-definable in the windows software
appication only. See Command Key section for details.
Rev. 1.6 Copyright© All rights reserved. Dec 2005
