Hunter Ceiling Fans Installation And Operation Manual page 8

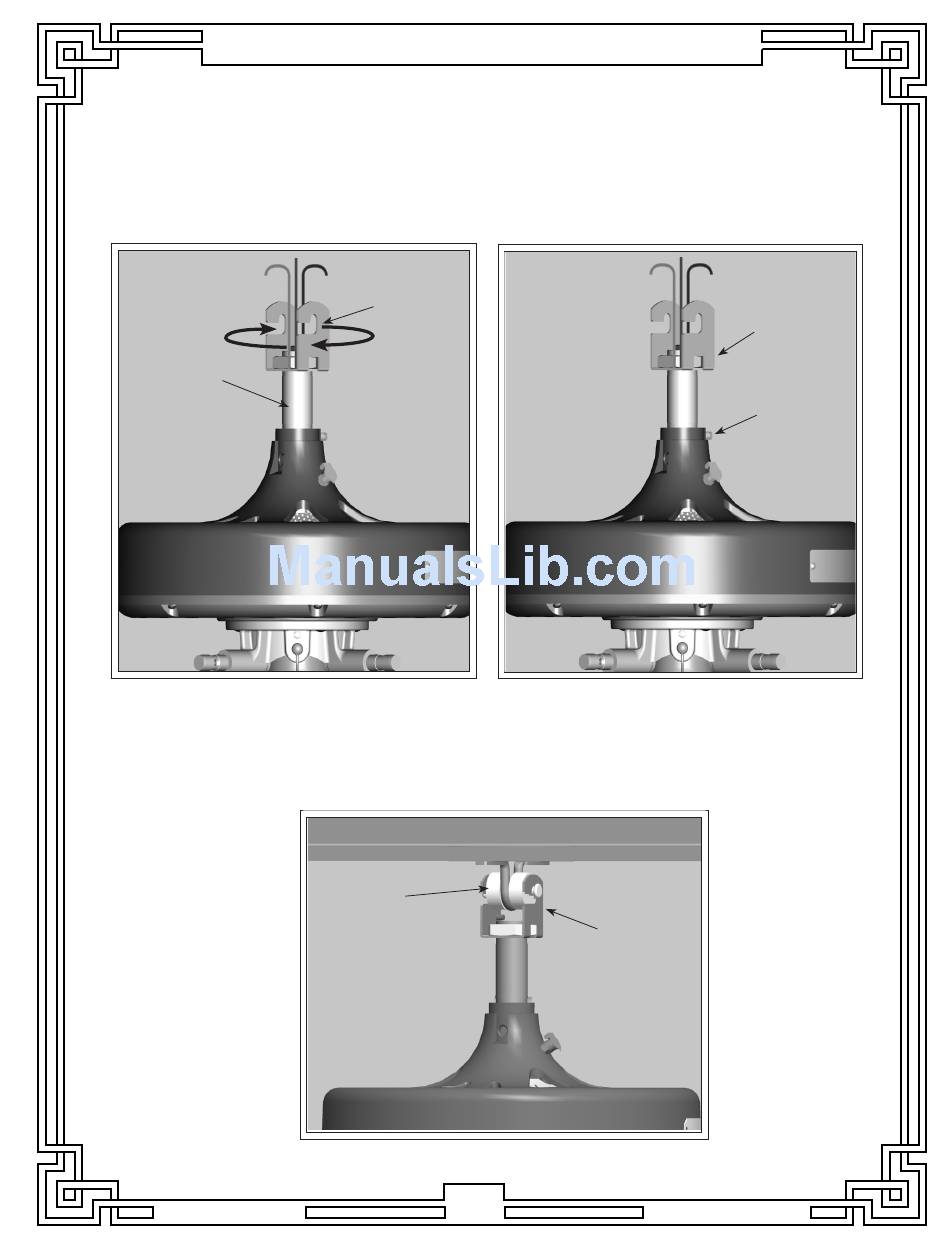

4. Back out the set screw on the hanger bracket.
5. Feed the 3 wires through the hanger bracket assembly and screw the hanger bracket onto the
hanger pipe until tight (at least 3 turns) (see Fig, 5).
6. Use pliers to tighten both the hanger bracket assembly and the hanger pipe together.
7. Tighten the set screw in the motor housing and the hanger bracket assembly (see Fig 6).
Hanger
Pipe
Fig.
8. Be sure that the pin is centered in the rubber bushing.
9. Lift the fan by the motor housing, hook the hanger bracket assembly onto the rubber bushing
and pin. Make sure both ends of the pin are outside the hanger bracket assembly (see Fig 7).
Hunter Fan Company
Hanging The Fan
Hanger
Bracket
Rubber
Bushing
and Pin
Fig.

Fig.
Hanger
Bracket
Assembly
42761-01 • 07/09/07
Hanger
Bracket
Set Screw
Motor Housing
Set Screw
