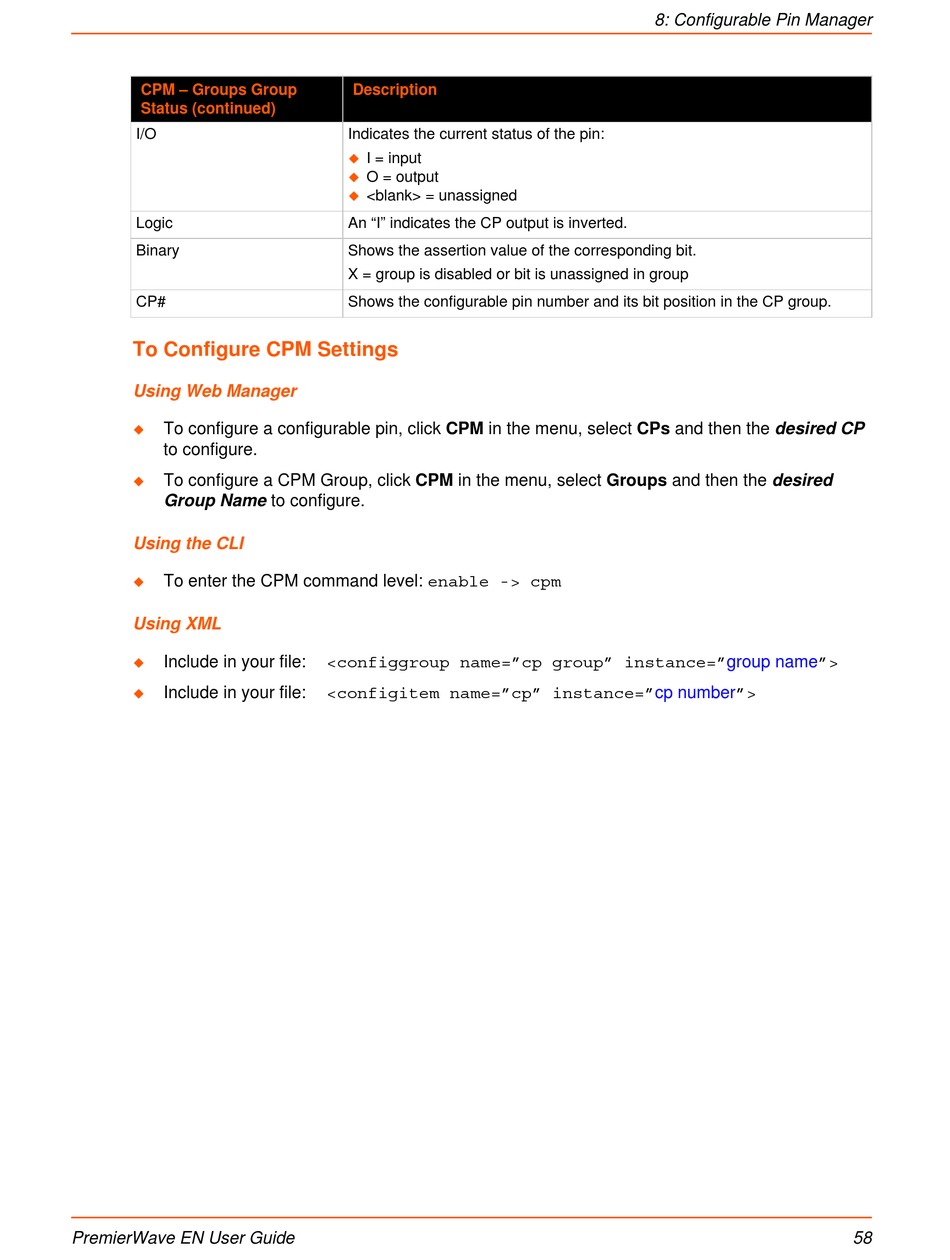

CPM – Groups Group
Status (continued)
I/O
Logic
Binary
CP#

To Configure CPM Settings

Using Web Manager
To configure a configurable pin, click CPM in the menu, select CPs and then the desired CP

to configure.
To configure a CPM Group, click CPM in the menu, select Groups and then the desired

Group Name to configure.
Using the CLI
To enter the CPM command level: enable -> cpm

Using XML
Include in your file:

Include in your file:

PremierWave EN User Guide
Description
Indicates the current status of the pin:
I = input

O = output

<blank> = unassigned

An "I" indicates the CP output is inverted.
Shows the assertion value of the corresponding bit.
X = group is disabled or bit is unassigned in group
Shows the configurable pin number and its bit position in the CP group.
<configgroup name="cp group"
<configitem name="cp"
8: Configurable Pin Manager
instance="group
number">
instance="cp
name">
58
