Chapter 3 – Using the Web Management Software
Networks & Services > Service Configuration
On this screen you can specify the standard set of well known services available on the system. These services enable the
configuration of the user-defined services. The options to Delete or Edit a service after it has been defined and added are
available by using the table at the bottom of the screen.

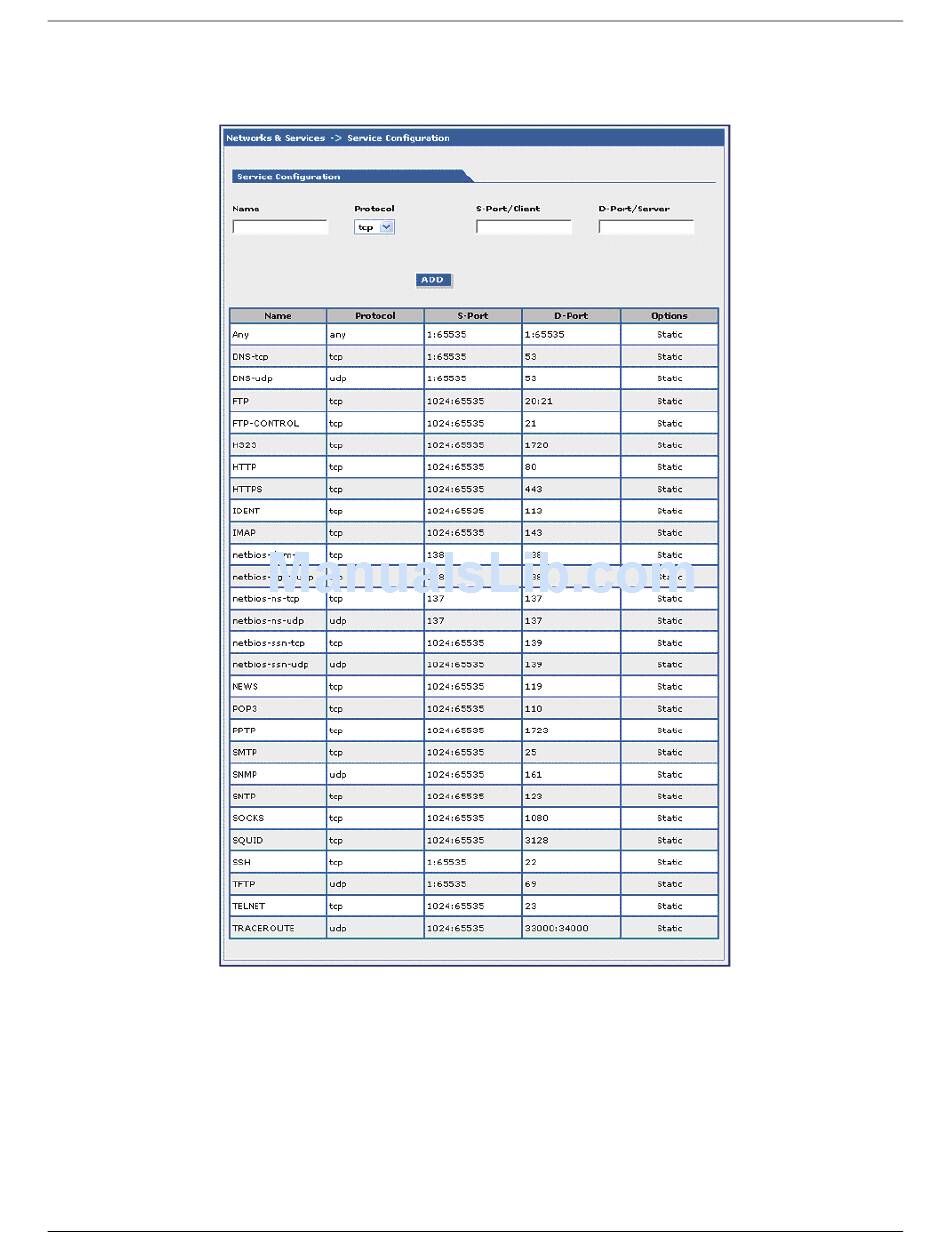

Service Configuration
Enter the Name, Protocol, Source Port/Client, and Destination Port/Server for the new Service.
● A Service Name cannot be edited.
● A Service cannot be deleted if it is used in another configuration.
● Service changes are reflected in all the configurations in the Web Management software where they are used.
● Services added here will be displayed in the following sections: DNAT, Packet Filters.
Name:
Protocol:
Source Port:
Destination Port:
Add Button:
36
Enter the name of the Service which is limited to 16 characters. It has to be unique.
Enter the type of protocol (ITCP, UDP).
Enter the Destination Port for this service. The source and destination ports can be enterred
either as a single port or a range using a colon as the separator.
Enter the name of the Destination Port for the service.
Click the Add button. The new service is added and will display on the screen.
