4
SwitchView IP 1020 Installer/User Guide
5. Make the appropriate adjustments to your mouse settings. See the Adjusting Mouse Settings on
Target Devices section on page 6 for instructions.

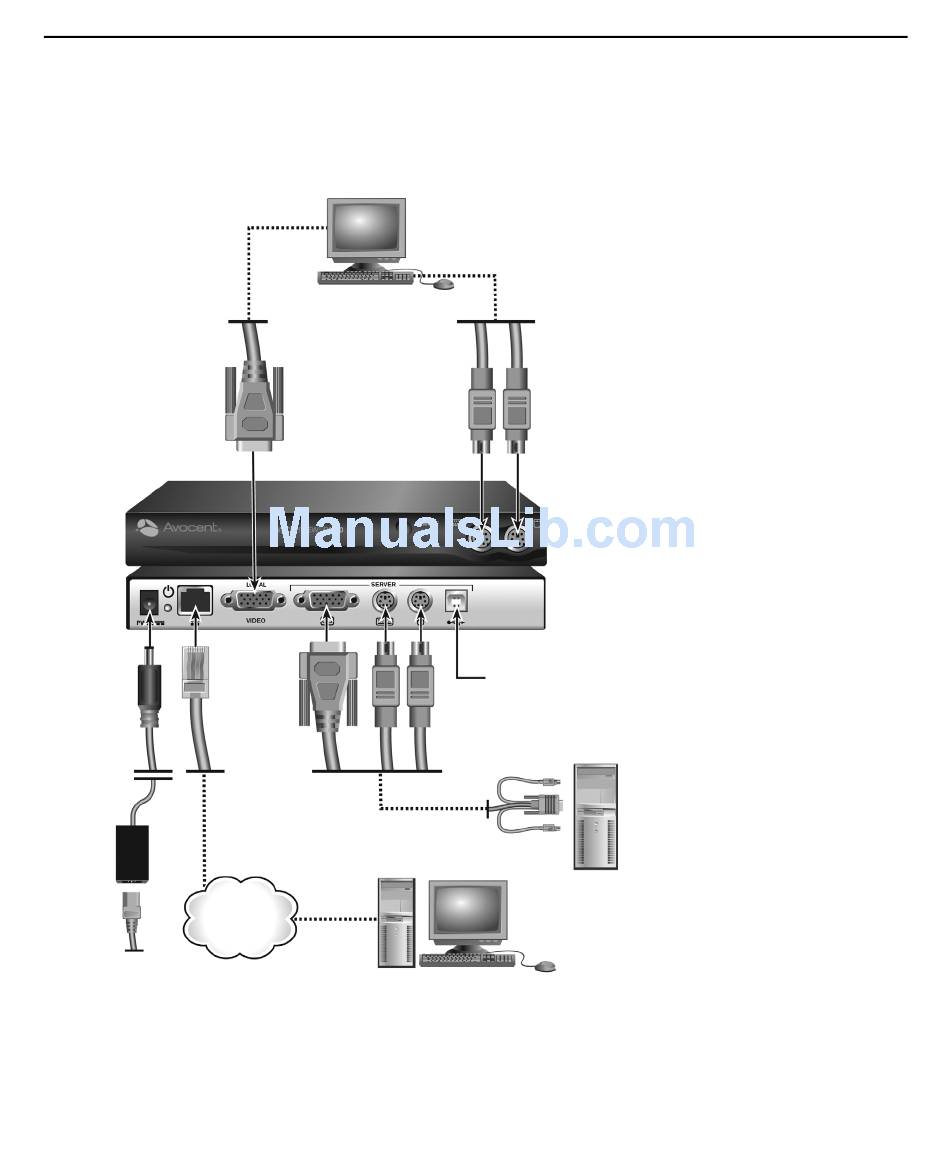

Figure 2.1 illustrates one possible configuration for your SwitchView IP 1020 remote
access device.
Network

Figure 2.1: Basic SwitchView IP 1020 Remote Access Device Configuration

Local User
SwitchView IP 1020
Remote Access Device
CPS2-6A Cable
Remote User
Optional USB port
for server keyboard
and mouse
Server
