- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODELS: PT-571 HDMI Line Transmitter PT-572+ HDMI Line Receiver P/N: 2900-000690 Rev 4...
-
Page 3: Table Of Contents
About HDCP About HDMI Defining the PT-571 HDMI Line Transmitter Defining the PT-572+ HDMI Line Receiver Connecting the PT-571 and PT-572+ Transmitter Receiver Pair Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Technical Specifications Figures Figure 1: PT-571 HDMI Line Transmitter... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer PT-571 and PT-572+ transmitter/receiver pair away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning:... -
Page 6: Overview
(295ft) at 1080p on shielded BC-DGKat7a23 cable Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6 and CAT 7a cables may not reach these ranges •... -
Page 7: Using Twisted Pair Cable
Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built cables significantly outperform regular CAT 5/CAT 6/CAT 7a cables. -
Page 8: About Hdmi
It delivers the maximum high-definition image and sound quality in use today. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. -
Page 9: Defining The Pt-571 Hdmi Line Transmitter

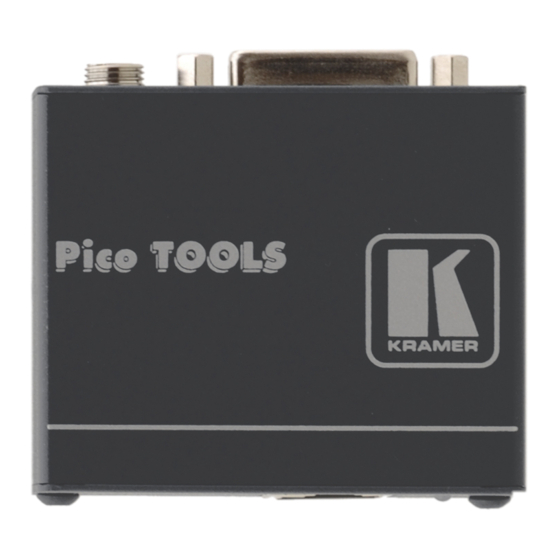

Defining the PT-571 HDMI Line Transmitter The Kramer Pico TOOLS PT-571 HDMI Line Transmitter receives an HDMI signal, encodes it, and transmits it over a CAT 5 cable to the PT-572+. The PT-571 has: • An HDMI input connector •... -
Page 10: Defining The Pt-572+ Hdmi Line Receiver
Defining the PT-572+ HDMI Line Receiver The Kramer Pico TOOLS PT-572+ HDMI Line Receiver receives an encoded signal over a CAT 5 cable transmitted from the PT-571, decodes it, and converts it to an HDMI output. The PT-572+ has: •... -
Page 11: Connecting The Pt-571 And Pt-572+ Transmitter Receiver Pair
To connect the PT-571 to the PT-572+, as illustrated in the example in Figure do the following: 1. Connect the CAT 5 OUT RJ-45 connector on the PT-571 to the CAT 5 IN RJ-45 connector on the PT-572+ via a CAT 5 cable (see Section 6.1). -
Page 12: Figure 3: Connecting The Pt-571/Pt-572+ Transmitter/Receiver Pair
Figure 3: Connecting the PT-571/PT-572+ Transmitter/Receiver Pair PT-571/PT-572+ - Connecting the PT-571 and PT-572+ Transmitter Receiver Pair... -
Page 13: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Green / White Blue Blue / White Green Brown / White Brown Pair 1 4 and 5 Pair 2 1 and 2 Pair 3 3 and 6 Pair 4 7 and 8 PT-571/PT-572+ - Connecting the PT-571 and PT-572+ Transmitter Receiver Pair... -
Page 14: Technical Specifications
0.14kg (0.3lbs) ACCESSORIES: Power supply OPTIONS: Kramer BC-DGKat524 (CAT 5 24 AWG), BC-DGKat623 (CAT 6 23 AWG) and BC DGKat7a23 (CAT 7a 23 AWG) cables, 19” RK-4PT rack adapter Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com... - Page 15 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
