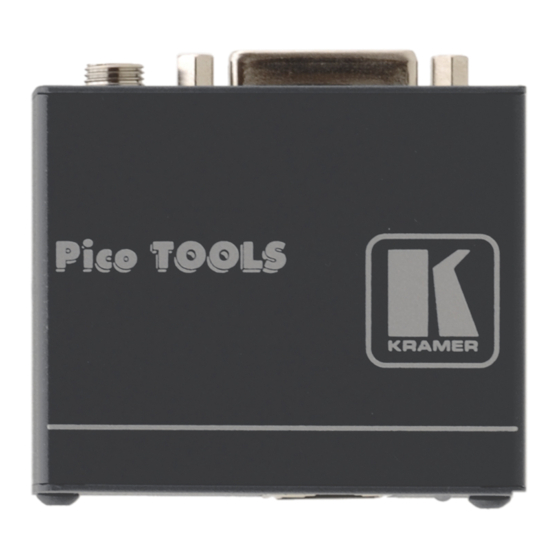

Kramer PT-571 User Manual
Hdmi line transmitter / receiver
Hide thumbs
Also See for PT-571:
- User manual (16 pages) ,
- Quick start manual (2 pages) ,
- User manual (15 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer PT-571
Summary of Contents for Kramer PT-571
- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: PT-571 HDMI Line Transmitter PT-572+ HDMI Line Receiver P/N: 2900-000690 Rev 8...
-
Page 3: Table Of Contents
Using Twisted Pair Cable About the Power Connect™ Feature Defining the PT-571 HDMI Line Transmitter Defining the PT-572+ HDMI Line Receiver Connecting the PT-571 and PT-572+ Transmitter Receiver Pair Wiring the TP Line In/Line Out RJ-45 Connectors Technical Specifications Figures... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer PT-571 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
(295ft) at 1080p on shielded BC-DGKat7a23 cable Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6 and CAT 7a cables may not reach these ranges ... -
Page 8: Using Twisted Pair Cable
Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products; the Kramer: BC-DGKat524 (CAT 5 24 AWG), the Kramer: BC-DGKat623 (CAT 6 23 AWG cable), and the Kramer: BC-DGKat7a23 (CAT 7a 23 AWG cable). These specially built cables significantly outperform regular CAT 5/CAT 6/CAT 7a cables. -
Page 9: Defining The Pt-571 Hdmi Line Transmitter
Defining the PT-571 HDMI Line Transmitter The Kramer PicoTOOLS PT-571 HDMI Line Transmitter receives an HDMI signal, encodes it, and transmits it over a CAT 5 cable to the PT-572+. The PT-571 has: An HDMI input connector An RJ-45 CAT 5 output connector ... -
Page 10: Defining The Pt-572+ Hdmi Line Receiver
Defining the PT-572+ HDMI Line Receiver The Kramer Pico TOOLS PT-572+ HDMI Line Receiver receives an encoded signal over a CAT 5 cable transmitted from the PT-571, decodes it, and converts it to an HDMI output. The PT-572+ has: ... -
Page 11: Connecting The Pt-571 And Pt-572+ Transmitter Receiver Pair
To connect the PT-571 to the PT-572+, as illustrated in the example in Figure do the following: 1. Connect the CAT 5 OUT RJ-45 connector on the PT-571 to the CAT 5 IN RJ-45 connector on the PT-572+ via a CAT 5 cable (see Section 6.1). -
Page 12: Wiring The Tp Line In/Line Out Rj-45 Connectors
4. Connect the 12V DC power adapter to the power socket on the PT-571 and/or the PT-572+ and connect the adapter to the mains electricity (not shown in Figure Note: When connecting the PT-572+ to the VP-81SID do not connect the 12V power supply to the PT-572+. -
Page 13: Technical Specifications
6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H WEIGHT: 0.14kg (0.3lbs) ACCESSORIES: Power supply RK-4PT 19” rack adapter OPTIONS: Specifications are subject to change without notice Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions PT-571/PT-572+ - Technical Specifications... - Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
