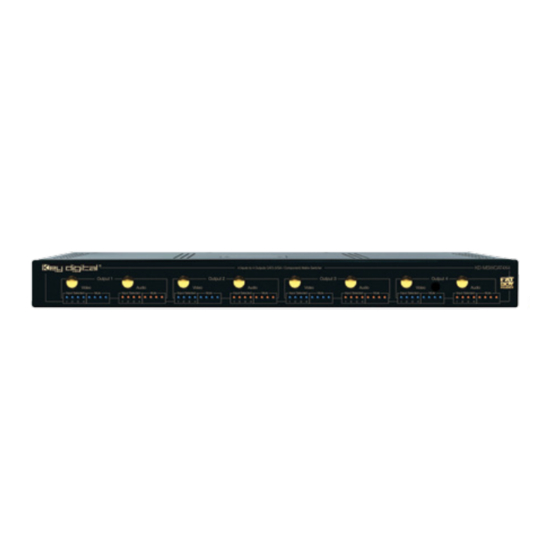

  • Page 1 KD-MSWCAT8x8 KD-MSWCAT4x4 Component/VGA with Audio via CAT5 Matrix Switchers Addendum KD-MSWCAT8X8 KD-VACRX KD-MSWCAT4X4 KD-CVARX This addendum describes additional features of Key Digital FatBoy Series ® ™ KD-MSWCAT8X8 and KD-MSWCAT4X4 spotlighting integration with KD-VACRX and KD-CVARX Receiver Baluns.

  • Page 2: Key Benefits

    This command tells the unit which type of Balun is connected to each output number. A » selected output will choose the KD-CVARX Balun; an unselected output chooses the KD- VACRX Balun (default). © 2010 Key Digital, Inc. All rights reserved.

  • Page 3: Balanced Audio

    KD-MSWCAT8X8 / 4X4 KD-CVARX IR routing through KD-MSWCAT8X8 / 4X4: In order to send IR signals through the KD-MSWCAT8X8/4X4, you will need to follow the configuration described below. To input IR signals, you will need to convert your powered IR distributions ½...

  • Page 4: Audio Connections

    Page 2 Here is a complete list of all items required to send IR through the KD-MSWCAT8X8/4X4. (Items listed are for a single connection). Product Qty. Description 3.5mm male mono Converts IR Distribution output to jack to RCA female RCA to connect to Baluns...
  • Page 5 Normally an unbalanced audio connection is utilized for standard source equipment. If you wish to use a balanced signal., the KD-MSWCAT8x8 has two (2) 3.5mm stereo audio input jacks for each video input and is capable of transmitting a balanced signal across the 2 audio inputs by wiring each connection as shown:.

  • Page 6: Digital Audio Connections

    Page 4 Digital Audio connections: This is the pin out for the LPCM Digital Audio connection. Note that the Digital audio signal will only Balanced Audio be available when using the KD-VACRX Baluns. Left Right Digital Audio – – Ring Sleeve Left Right...
  • Page 7 Page 5 IR Distribution with KD-MSWCAT8X8/4X4 & KD-CVARX Baluns KD-IRCB204 Connecting Block IR Distribution KD-MSWCAT8X8 KD-VACBL CAT5/6/7 run 1000’ KD-CVARX KD-VACBL RCA to Emitter...
