KD-MSW4x2
4 Inputs to 2 Outputs HDTV Matrix Switcher
Operating Instructions

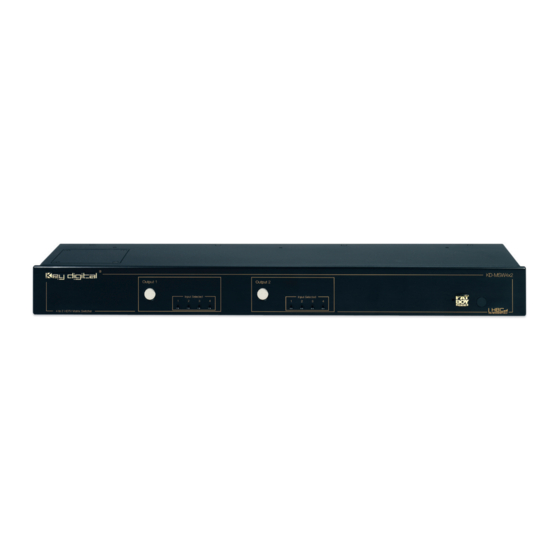

The Fat Boy Series KD-MSW4x2 by Key Digital
matrix switcher and distribution amplifier. For each of the two displays connected to
its output, any of up to four source inputs can be separately and seamlessly switched
with the professional Fade-to-Black and Video Muting features. It supports both
component video (YPbPr) and RGBHV video formats; and S-Video and composite
video (CVBS), with adapters. Concurrent with the video, it switches and distributes
™
PCM coax digital audio, and analog stereo audio (no analog audio for RGBHV video).
With analog video bandwidths up to 300 MHz, the KD-MSW4x2 handles all HD and
SD resolutions (50 and 60 Hz) including 1080p/60, with no degradation in signal
quality. It is simple to operate and control via front panel pushbuttons with LEDs to
monitor the selections, IR remote control, IR Extender, wired IR, and is compatible via
RS-232 with all control systems.
