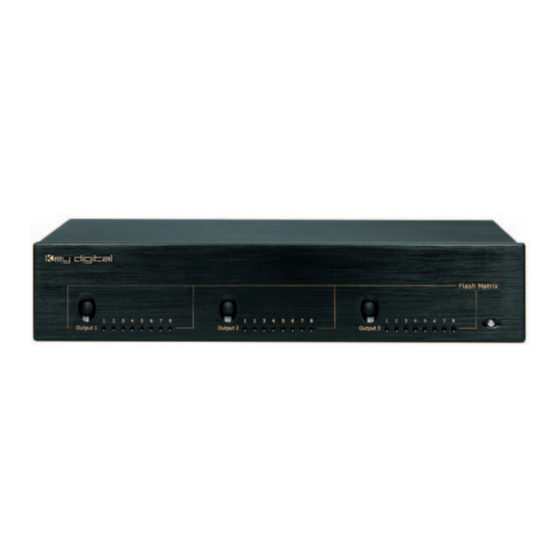

Fl a sh Matri x
Inputs Component or RGBHV Video and Audio
(L, R, Digital PCM) to 3 Independent Outputs
OPERATING INSTRUCTIONS
Using the Flash Matrix
them to one, two, or three TVs or monitors at the same time. Examples include:
- DVD players
- Electronic game boxes
- Cable TV , satellite, and terrestrial DTV set-top receivers
- Digital video recorders (DVRs)
- D-VHS, S-VHS, and VHS VCRs
The Experts in Digital Video Technology and Solutions.
Model KD-MSW8x3
TM
, you can connect up to eight A/V devices and switch
The Experts in Digital Video Technology and Solutions.
The Experts in Digital Video Technology and Solutions.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Key Digital Flash Matrix KD-MSW8x3
Summary of Contents for Key Digital Flash Matrix KD-MSW8x3
-
Page 1: Operating Instructions
- Digital video recorders (DVRs) - D-VHS, S-VHS, and VHS VCRs The Experts in Digital Video Technology and Solutions. Model KD-MSW8x3 , you can connect up to eight A/V devices and switch The Experts in Digital Video Technology and Solutions. - Page 2 The Experts in Digital Video Technology and Solutions. / Model KD-MSW8x3...
- Page 3 The Flash Matrix is a versatile multi-input A/V matrix switcher for connecting video and audio sources to one or more video displays, Televisions or video monitors. It features eight inde- pendent component video/audio inputs and three independent component video/audio out- puts.
- Page 4 Page 4 of 12 Flash Matrix Operating Instructions Input1 Input6 Output1 Color Code Connecting A/V Equipment Connecting your A/V equipment to the Flash Matrix is a simple process. Start with Input #1 and proceed to the next higher input each time you add an A/V device. First, determine the video signal format you want to connect.
- Page 5 Page 5 of 12 Flash Matrix Operating Instructions Example 1. Connecting a digital TV set-top receiver with component Y, Pb, Pr (three-wire) or component five-wire (RGBHV) video outputs to the Flash Matrix Connect the three-wire green, blue, and red (Y , Pb, Pr) cables from your set-top receiver to the green, blue, and red jacks on the Flash Matrix .
- Page 6 Page 6 of 12 Flash Matrix Operating Instructions Example 2. Connecting a DVD player or game console with component Y, Pb, Pr (three-wire) video outputs to the Flash Matrix Connect the three-wire green, blue, and red (Y , Pb, Pr) cables from your set-top receiver to the green, blue, and red jacks on the Flash Matrix .
- Page 7 Page 7 of 12 Flash Matrix Operating Instructions Example 3. Connecting devices with S-video (two-wire) or composite video out- puts to the Flash Matrix S-video connection: You will need a 'breakout' adapter cable to connect your satellite receiver, DVR, or S-VHS VCR to the Flash Matrix .
- Page 8 Page 8 of 12 Flash Matrix Operating Instructions Manual selection and switching of A/V inputs and outputs with the Flash Matrix Selecting video/audio inputs and switching them with the Flash Matrix is easy and fast. There are three large pushbuttons with rows of blue LED indicators to the right of them on the front of the Flash Matrix.
- Page 9 Page 9 of 12 Flash Matrix Operating Instructions Remote selection and switching of A/V inputs and outputs with the Flash Matrix You can operate the Flash Matrix using the supplied infrared (IR) remote control. Press two digits on the IR remote control to perform the desired input and output switching function.
-
Page 10: Technical Specifications
Page 10 of 12 Flash Matrix Operating Instructions Technical Specifications Inputs: 8 input groups, each consisting of three component Y , Pb, Pr analog video jacks, two analog audio jacks, and one PCM digital audio jack. The analog audio input/output jacks can also be used to switch H and V sync for RGBHV signals. -
Page 11: How To Contact Key Digital
They are backed by a limited two-year parts and labor warranty. Flash Matrix ® require warranty service, please contact Key Digital The Experts in Digital Video Technology and Solutions. The Experts in Digital Video Technology and Solutions. Page 11 of 12 Operating Instructions ®... - Page 12 Operating Instructions www.keydigital.com Phone 914-667-9700 The Experts in Digital Video Technology and Solutions. Key Digital , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high quality video imaging is important. Our products are used by professional broadcasters, corporations, custom installers, home theater retailers, and consumers.
