Key Digital KD-MSV8X8 FatBOY Operating Instructions Manual

KD-MSV8X8 Operating Instructions
521 East 3rd Street, Mount Vernon, NY 10553
:: ::
Phone 914.667.9700 Fax 914.668.8666
::
Web www.keydigital.com
KD-MSV8x8_Manual.indd 2-1
Key Digital , led by digital video pioneer Mike Tsinberg,
®
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
is at the forefront of the video industry for Home
Theater Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers. We
provide total video system solutions because we
know and help drive the technology, the industry, the
business, and all the latest up-and-coming standards.
But most of all, we know exactly what you need for your
unique application - the right solution.
Rev 0 – Sept. 2007
KD-MSV 8 X 8
Video Matrix Switcher capable of switching up to
8 Component Video Sources/Inputs to
8 independent Zones/Outputs

Operating Instructions

®

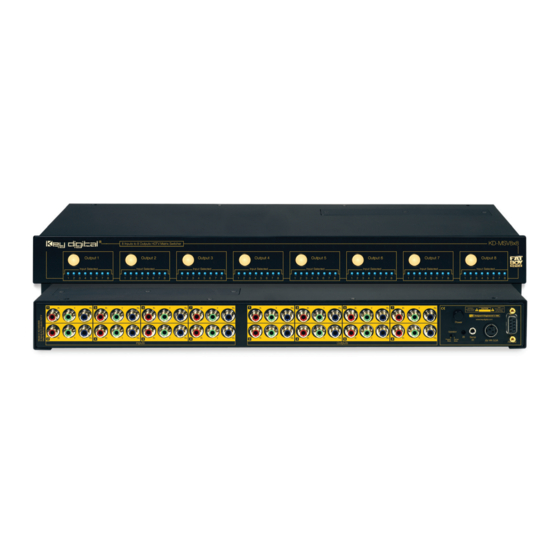

The KD-MSV8X8 is a full matrix video switcher capable of integrating up to 8 inputs or
sources with 8 outputs or zones. The unit directly accepts component or composite
video signals and is capable of switching all popular HD and SD resolutions at both
50 Hz and 60 Hz.
