Key Digital KD-MSW8X4 Specifications

Fatboy series video/audio matrix switcher
Hide thumbs Also See for KD-MSW8X4:

Advertisement

Video/Audio Switchers
KD-MSW8x4
KD-MSWx is a Video/Audio Matrix Switcher with capability of switching
 Component/RGBHV Video Sources/Inputs to  Zones/Outputs

Key Benefits

4
Seamless matrix switching of up to 8 YPrPb/RGBHV
(Component, RGBHV, S-Video, Composite) Video/Audio
formats with analog and Coaxial/Digital (PCM) to
4 Zones/Outputs
4
Switches Left, Right analog stereo, Coaxial/Digital (PCM)
Audio with Video
4
Bandwidth of 350 MHz supports all resolutions
up to 1080p
4
Expendable with additional units up to 64 Zones

Key Solutions

Provides seamless switching from up to 8 YPrPb/RGBHV sources to 4 Zones/Outputs
Allows for multiple expansions of YPrPb/RGBHV sources to multiple displays
in multiple zones
Can be incrementally expanded (with additional units) up to 8 Sources/Inputs to
64 Zones or Outputs. Visit www.keydigital.com for expansion unit model numbers.
Video can be switched to black video (mute)
Supports 3rd party control systems via RS232 and IR
0
4
Front LEDs indicate the selected source and
input/output status
4
Each output can be switched to black video (mute)
4
Incorporates 4 Key Digital
Exclusive Technologies
4
Optical IR, Wired IR, RS 232, Front Panel Controls,
BNC connectors

General Info

Power: 100VAC to 240VAC,
50Hz and 60Hz, NTSC, PAL
Rack Mount: Yes - 2U
Remote Control: Included
Enclosure Type: Metal
Dimensions:
17 .5" x 10" x 3.5"
Shipping Carton Dimensions:
23" x 13" x 6"
Product Weight: 12 lbs
Shipping Weight: 16 lbs

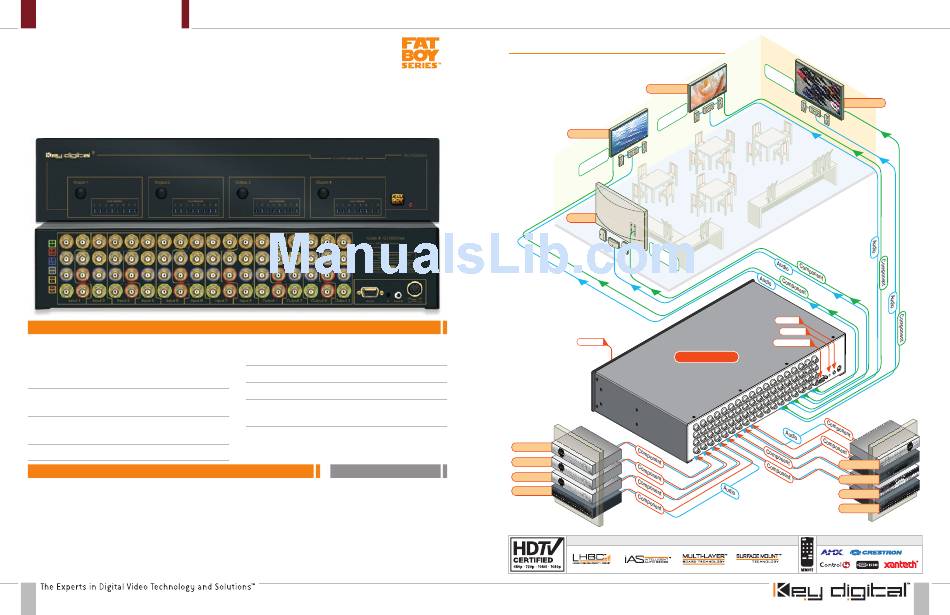

Commercial Entertainment Venue Application
Model: KD-MSWx
Plasma/LCD
3
n e
Z o
Plasma/LCD
2
n e
Z o
Plasma
Z o
n e
1
Optical IR
KD-MSW8x4
HDTV Tuner
HDTV Tuner
HDTV Tuner
DVHS
Key Digital
Exclusive Technologies
®
Z o
n e
4
Plasma /LCD
Wired IR
Optical IR
RS232 Control
Cable Box
DVD Player
DVR Player
*All Component sources can be
Satellite Box
substituted with RGBHV sources
Supported Technologies
