Key Digital KD-MSW8X4Pro Specifications

Video/Audio Switchers
KD-MSW8x4Pro
KD-MSWxPro is a Video/Audio Matrix Switcher with capability of switching up to
 RGBHV/Component Video Sources/Inputs to  Zones/Outputs with Audio Volume Control

Key Benefits

4
Seamless matrix switching of up to 8 RGBHV/YPrPb
(Component, RGBHV, S-Video, Composite) Video/Audio
formats with analog and Coaxial/Digital (PCM) to
4 Zones/Outputs
4
Audio Volume Control is available for each Zone through
the YPrPb, Left/Right mode for Analog Stereo
4
Switches Left, Right analog stereo, Coaxial/Digital (PCM)
Audio with Video
4
Expandable with additional units up to 64 Zones

Key Solutions

Provides seamless switching from 8 RGBHV/YPrPb sources to 4 Zones/Outputs with
›
Volume Control for each zone
Allows for multiple expansions of RGBHV/YPrPb sources to multiple displays
›
in multiple zones
Can be incrementally expanded (with additional units) up to 8 Sources/Inputs
›
to 64 Zones or Outputs. Visit www.keydigital.com for expansion unit model numbers.
Video can be switched to black video (mute)
›
Supports 3rd party control systems via RS232 and IR
›
2
4
Bandwidth of 350 MHz supports all resolutions
up to 1080p
4
Front LEDs indicate the selected source and
input/output status
4
Each output can be switched to black video (mute)
4
Incorporates 4 Key Digital Exclusive Technologies
™
4
Optical IR, Wired IR, RS 232, Front Panel Controls,
BNC connectors

General Info

Power: 100VAC to 240VAC,
›
50Hz and 60Hz, NTSC, PAL
Rack Mount: Yes - 2U
›
Remote Control: Included
›
Enclosure Type: Metal
›
Dimensions:
›
17 .5" x 10" x 3.5"
Shipping Carton Dimensions:
›
23" x 13" x 6"
Product Weight: 12 lbs
›
Shipping Weight: 16 lbs
›

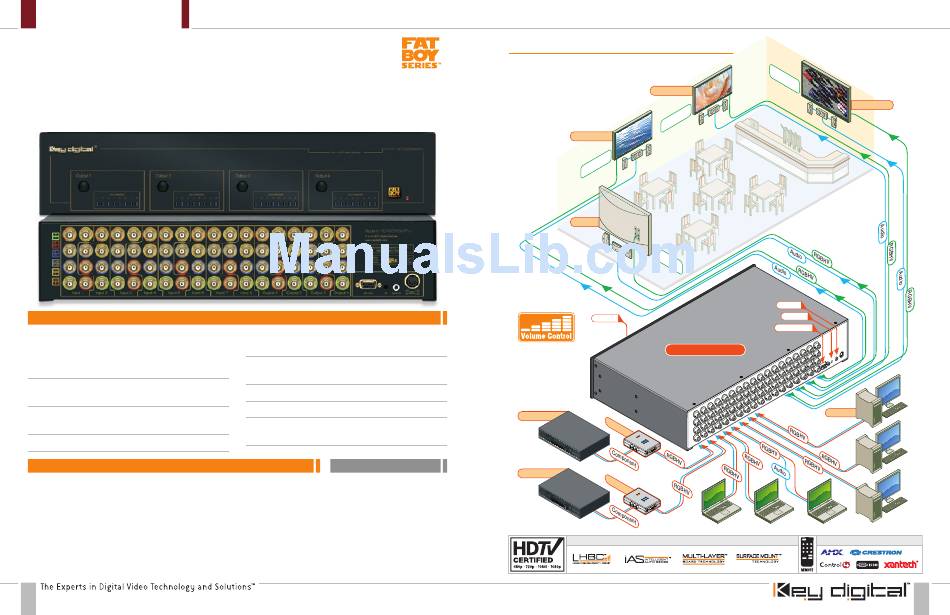

Commercial Entertainment Venue Application
Model: KD-MSWxPro
Plasma/LCD
3
n e
Z o
Plasma/LCD
2
n e
Z o
Plasma
Z o
n e
1
Optical IR
With Component Sources
KD-MSW8x4Pro
*KD-VA5 converts
Component to
RGBHV/VGA
DVD Player
K D
- V A
5
DVD Player
K D
- V A
5
Key Digital Exclusive Technologies
®
Z o
n e
4
Plasma /LCD
Wired IR
Optical IR
RS232 Control
Computer

Supported Technologies
