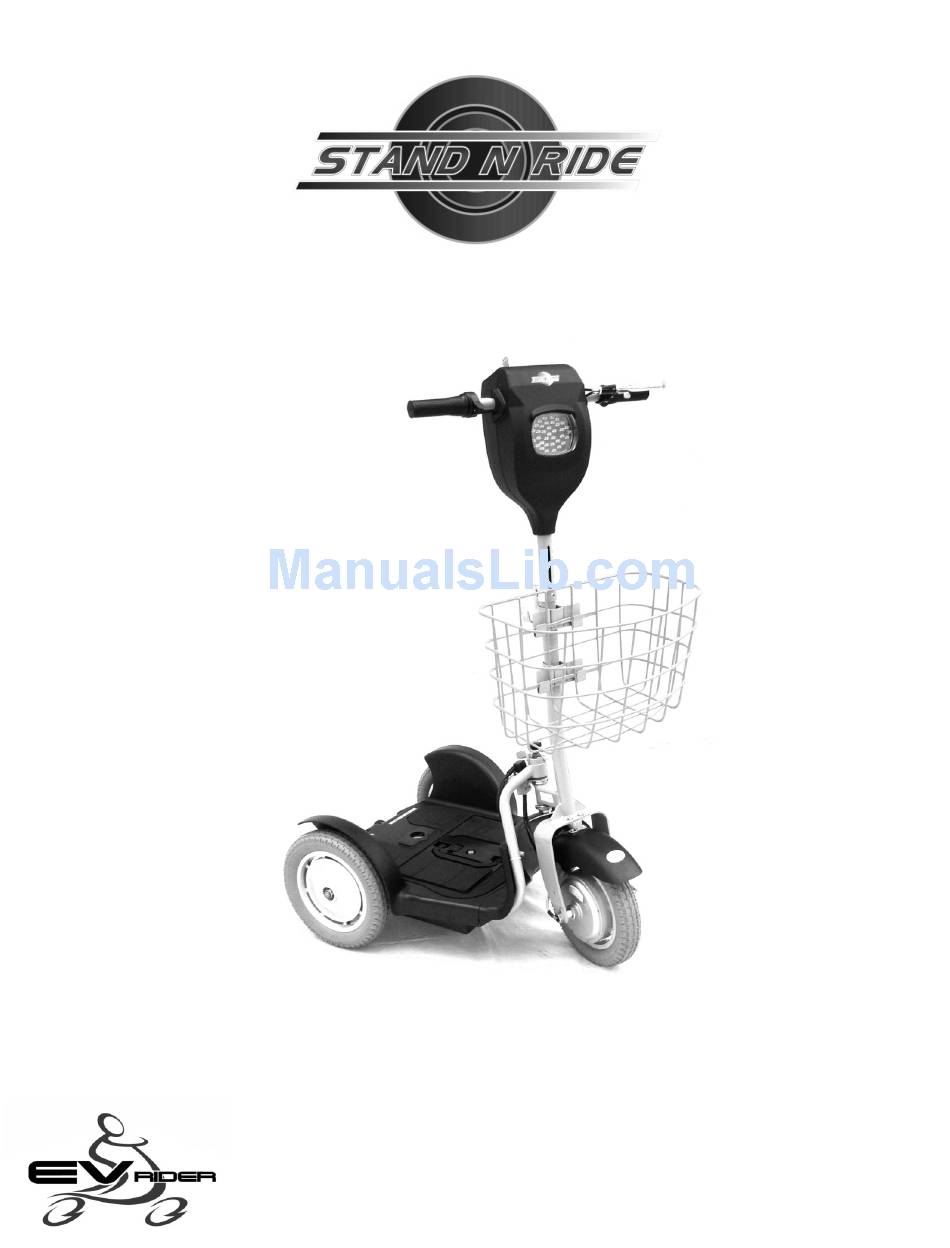

- Page 1 USER’S MANUAL EV Rider, LLC 6410 Arc Way • Suite A • Fort Myers • FL 33966 www.evrider.com • 1.800.944.1997...
- Page 2 IMPORTANT SAFETY NOTICE It is important to read and follow all the instructions and safety information contained in this Owner's Manual prior to use. Always wear a safety helmet (which is provided with each SNR scooter). Do not operate at night. Comply with all local laws and regulations.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE Important Safety Information General Information Riding Terrain Mechanical Systems About the Batteries Additional Safety Information Stand N Ride Overview Diagram Assembly Instructions Tiller Assembly Base Frame Assembly Installing the Optional Seat Assembly Coupling the Tiller to the Base Frame Installing the Battery Pack Before You Ride Checklist How to Ride the Stand N Ride... -
Page 4: Important Safety Information
The SNR is a recreational battery-operated vehicle. It is not a mobility device for medically prescribed use and should not be used as such. Always wear a helmet when riding the SNR. For your convenience and safety, EV Rider provides a helmet with each SNR scooter. -
Page 5: Mechanical Systems
Page 4 Mechanical Systems Check all joints, hinges and quick releases to ensure that the Stand N Ride is properly assembled. Stop using the product immediately if any joint, hinge or quick release becomes loose. Re-tighten the joint, hinge or quick release prior to resuming the ride. The electric motor, batteries and controls can get damaged if exposed to water. -
Page 6: Additional Safety Information
Page 5 Additional Safety Information Adjust the handle bar height to provide a comfortable and secure riding position on the Stand N Ride scooter. The rider's hands should be able to easily grasp the handle bar controls (throttle and brake lever). They should not be higher than the waist or lower to ensure proper posture and riding control of the unit. -
Page 7: Stand N Ride Overview Diagram
Page 6 Stand N Ride Overview Fast/Slow Battery Gauge ON/OFF Headlight FWD/REV Brake Horn Throttle Optional Seat Basket Take-Apart Rear Wheel Hub Motor/Drive Wheel Battery Pack Anti-Tippers... -
Page 8: Assembly Instructions
Page 7 Assembly Instructions Your Stand N Ride is shipped in two boxes: 1 containing the tiller and 1 containing the base frame. After you have removed the Stand N Ride components from the protective packaging, you are ready to set up your scooter for riding by following these steps: Tiller Assembly: - Loosen the tiller height lock to allow for the insertion of the upper portion of the tiller/handle... -
Page 9: Installing The Optional Seat Assembly
Page 8 Installing the Optional Seat Assembly: Locate all the seat assembly components and have them at Main hand to begin the installation of the seat assembly (Fig 5). Seat-Post Seat - Remove the seat-post locking collar from the main seat-post tube to allow insertion of the tube through the base frame from the bottom up (fig 6). -
Page 10: Coupling The Tiller To The Base Frame
Page 9 Coupling the Tiller to the Base Frame: - Remove the secondary safety knob from the tiller coupler pin to allow the pin to slide through the base frame receiver. - Align the tiller coupler pin with the base receiver tube and slide it over the tiller pin (Fig 11). -
Page 11: Before You Ride Checklist
Page 10 Before You Ride Checklist Before riding the Stand N Ride electric scooter, be sure to carefully follow the checklist below: - Read and understand the Important Safety information section of your Owner’s Manual. - Make sure that the battery pack has been fully charged. - Check that the battery pack connection to the base frame is tight. -
Page 12: Battery System And Charger
Page 11 the unit and become proficient riding it. 7. Gradually apply the throttle until the desired speed is achieved. Once again, we recommend that you do not venture to full speed operation until you have become proficient with the scooter and only if you are certain that there are no obstacles in site on an open field. -
Page 13: Basic Maintenance
Attempting to service or modify any of the scooter’s internal components may result in permanent damage to the scooter and will void the warranty. For service and repair, contact your nearest EV Rider dealer. It is always best to check before each ride the condition of the cables, brakes and folding latches to ensure their proper settings and tightness. -
Page 14: Specifications
Page 13 SPECIFICATIONS Model number SNR-1000 Color Black Textured ABS Plastic & Metallic Silver Frame Overall length 992 mm / 36.3 in Overall width 642 mm / 25.3 in Ground clearance 75 mm / 3 in Weight capacity 136kg / 300 lb... -
Page 15: Warranty Information
(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter.) The battery is warranted by EV Rider for 6 months after the purchase of the product. Warranty service can be performed by EV Rider or by an authorized EV Rider service facility. - Page 16 Page 15 NOTES...
