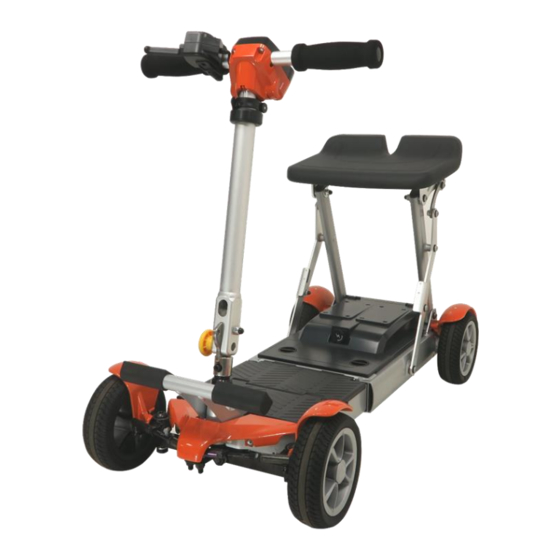

ELECTRICAL SCOOTER
WT–T4Q
OWNER'S MANUAL
Issued on May 6, 2019
Version: 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gypsy WT–T4Q and is the answer not in the manual?

Questions and answers

Related Manuals for EV Rider Gypsy WT–T4Q

Summary of Contents for EV Rider Gypsy WT–T4Q

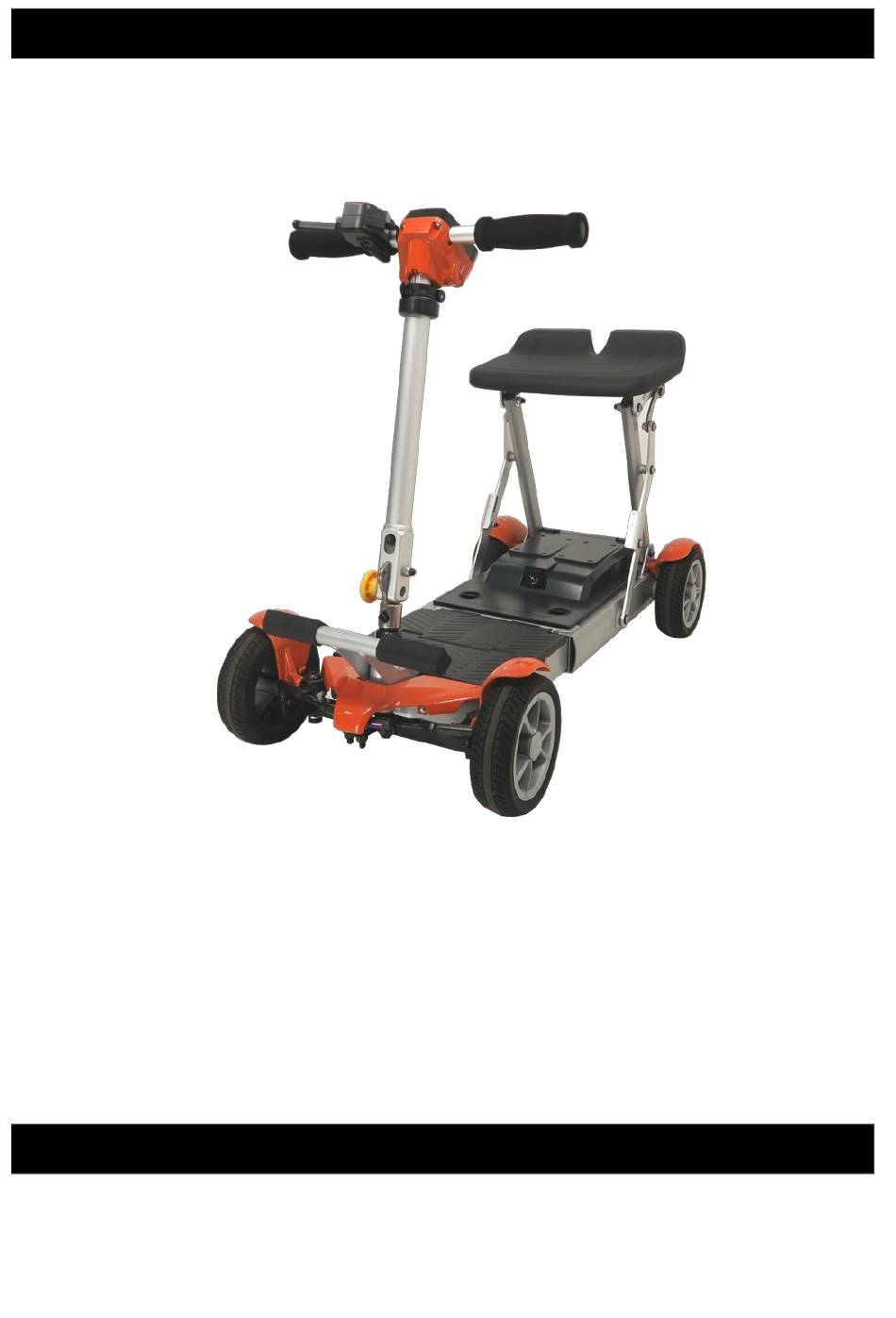

  • Page 1 ELECTRICAL SCOOTER WT–T4Q OWNER’S MANUAL Issued on May 6, 2019 Version: 1.0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY GUIDELINES…..………………………………………..…..…..2 SAFETY NOTICE ……………………………...……………………………… 3 PARTS INTRODUCTION…………………………………..…………………. 8 FOLDONG OUT/UP THE SCOOTER……………………………………..9 OPERATION…………………………………………………..………………... 10 BATTERY CHARGING AND CARE………………………….……………… 12 INSPECTION AND MAINTENANCE………………………………....15 TROUBLE SHOOTING AND SPECIFICATION…………………………… 17 WARRANTY……………………………………………………………………. 19 1. Always use a seat belt and keep your feet on the scooter at all time. 2.

  • Page 3: Safety Guidelines

    1 . S A F E T Y G U I D E L I N E S Please carefully read this owner’s manual before using the scooter. Improper use of the scooter could result in harm, injury or traffic accidents. Therefore for maximum pleasure while using the scooter please read this owner’s manual.

  • Page 4: Safety Notice

    2 . S A F E T Y N OT I C E GENERAL MANDATORY! Do not operate your new Scooter for the first time without ompletely reading and understanding this owner’s manual and the Consumer Safety Guide. Your Scooter is a state-of-the-art life-enhancement device designed to increase mobility. We provide an extensive variety of products to best fit the individual needs of the Scooter user.
  • Page 5 2 . S A F E T Y N OT I C E WHILE DRIVING ■ Please carry out daily inspections. Refer to the section entitled “DAILY CHECKING” ■ Do not move your body out of the scooter while moving ...
  • Page 6 2 . S A F E T Y N OT I C E ■ Starting and Driving 1. Make sure the seat is installed properly. 2. Make sure the tiller has been secured properly. 3. Check battery indicator to see whether there is enough power for your journey. If you have any doubt about the remaining power, please recharge the batteries before departure.
  • Page 7 2 . S A F E T Y N OT I C E ▓ Stopping 1. Release the speed control lever completely. The scooter will naturally brake and stop. 2. Turn the power switch to (OFF). Then pull out the key. ▓...
  • Page 8 2 . S A F E T Y N OT I C E This portion of the content will provide the user with basic information that describes the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic movement occur.

  • Page 9: Parts Introduction

    3 . PA R T S I N T R O D U C T I O N PARTS DESCRIPTION 1. SEAT 2. Control Panel 3. Slide Lever 4. Tiller Swivel Knob 5. Front Footrest 6. Rear Reflector 7. speed/slow down 8. Switch speed button 9.
  • Page 10 4 . F O L D I N G U P / O U T T H E S C O OT E R 1.Pull the yellow knob back to the rear support bar. 6.Push the seat back (Folding up the scooter p.3) 2.Push the support rod forward to make the bottom 7.

  • Page 11: Operation

    5 . O P E R AT I O N 5.1 CONTROL PANEL 1. Battery Level Indicator 2. Speed Lever 3. Forward / Reverse Selector ROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller console does become exposed to moisture, do not attempt to operate your Scooter until the tiller console has dried thoroughly.

  • Page 12: Battery Charging And Care

    5 . O P E R AT I O N ■ Forward, Reverse, and Braking  The button control upwards with your left fingers and pull the scooter will move forward.  The button control downwards with your left fingers and pull the scooter will move backward. ...
  • Page 13 6.1 CHARGING THE BATTERY Follow the procedure below step by step: 1. Turn the power switch to (OFF) 2. Connect the charger’s power cord into the power outlet. 3. Open the charging socket cap on the tiller. Then connect the charger’s round plug to the charging socket.
  • Page 14 PROHIBITED! Removal of grounding prong can create electrical hazard. If necessary, properly install an approved 3-pronged adapter to an electrical outlet having 2-pronged plug access. PROHIBITED! Never use an extension cord to plug in your battery charger. Plug the charger directly into a properly wired standard electrical outlet. PROHIBITED! Do not allow unsupervised children to play near the Scooter while the batteries are charging.

  • Page 15: Inspection And Maintenance

    ■ Cleaning the battery If the batteries are contaminated by water, battery acid, dust or other substances, they will discharge quickly. The batteries supplied with the WU’S scooter are sealed and as such are maintenance free with no risk of battery leakage. Please follow the steps below to clean the battery. 1.
  • Page 16 7.1 INSPECTION  Clean the scooter with a damp cloth and dust down approximately once a week to preserve the appearance of the scooter.  Check for signs of wear and tear on the tires and the upholstery on a regular basis. ...

  • Page 17: Trouble Shooting And Specification

    ▓Tires The condition of the tires depends on how you drive and use your scooter.  Inspecting tire tread  Please check the tread groove regularly. Replace the tires when the tread groove is less than 0.5 mm. Attention 1. When conducting maintenance of your scooter, please turn the power switch to OFF and remove the charger cords.
  • Page 18 8.1 TROUBLE SHOOTING Symptom Remedy • Try recharging the battery The scooter will not switch on • Check the fuse and circuit breaker in the scooter • Ensure there is enough power in the batteries. If not, The scooter switches on, but the scooter will not move.

  • Page 19: Warranty

    8.2 SPECIFICATION Scooter Size ( L×W×H ) 33.5" x 17" × 33.5" / 850 x 430 x 850 mm Total Weight 17 kg Battery Weight 1.85 Kg Weight 0.4 kg Front Wheel 165 × 50 mm Rear Wheel 165 × 50 mm Battery Specifications 24V 11.6 AH Charger Type...
  • Page 20  WARRANTY There is a comprehensive twelve-month warranty from the date on which your new WT-T4Q scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more detail, please see the Warranty Conditions below. Warranty Conditions: Any work or replacement part installation must be carried out by an authorized dealer / service agent.
  • Page 21 9.1 VIN (SCOOTER INDIFICATION NUMBER) To ensure the correct after-sale service and warranty service support, please write down the scooter identification number that is stuck on the back side of the frame. Model WT-T4Q Chassis NO. Motor serial # Warranty Application Form Name Tel no.
  • Page 22 Wu’s Tech Co. Ltd. 3 Fl. No.112 Sec. 2, Chung-Shan N. Rd., Taipei, Taiwan, R.O.C. Tel: +886 2 2541 3253 Fax: +886 2 2536 7575 Release Date: 2019/05/6...
