Intend Use:
Moving of adult disabled persons by self driving. Maximum user weight: 120 kg;
Classified in Class A (EN12184) Maximum safe slope: 3° (Not intended for use outdoors)
The product is not intended for visually impaired people. The drivers need to mentally and physically suitable to drive
the scooters. The fingers need to work functionally. The device can't be used by children until age of 12. The driving
distance will be reduced if the power scooter is used frequently on slopes, rough ground or to climb kerbs. The scooter is not
for use as a seat in motor vehicle.
All adjustments can be adjusted by both occupant and assistant
Please refer to our official website for general product information at

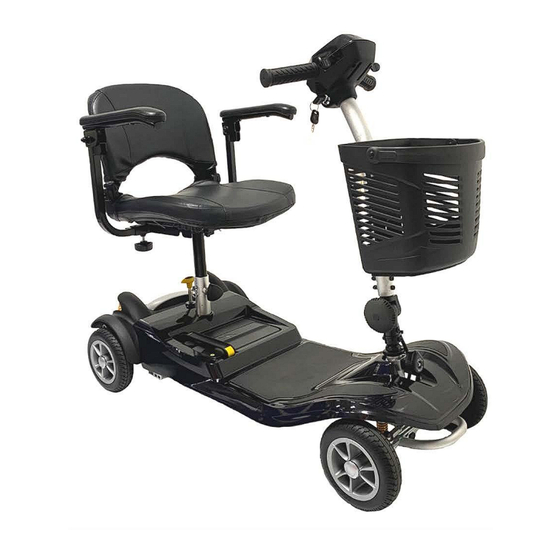

NOMAD
OWNER'S MANUAL
www.evrider.com
Advertisement
Table of Contents
Related Manuals for EV Rider NOMAD
Summary of Contents for EV Rider NOMAD
- Page 1 NOMAD OWNER’S MANUAL EV Rider, LLC 6410 Arc Way, Suite A, Fort Myers, FL 33966 Intend Use: Moving of adult disabled persons by self driving. Maximum user weight: 120 kg; Classified in Class A (EN12184) Maximum safe slope: 3° (Not intended for use outdoors) The product is not intended for visually impaired people.
- Page 2 ♦ Don’t operate your power scooter without completely reading and understanding this user manual! ♦ Do not operate the scooter with depleted batteries, since the occupant could be stranded. ♦ The end user is NOT allowed to change the parameter. ♦...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PREFACE AND INTRODUCTION ……..…………………………………… 3 SAFETY NOTICE…………………………………………………………...….. 4 2.1 Before driving 2.2 While driving 2.3 EMI PARTS INTRODUCTION……………………………………………..………. 9 Parts description OPERATION…………………………………………………………………..11 4.1 Control panel 4.2 How to operate your scooter 4.3 Assembling and disassembling BATTERY CHARGING AND CARE………………………………………..15 5.1 Charging the battery 5.2 Battery INSPECTION AND MAINTENANCE……………………………………..…... -
Page 4: Preface And Introduction
1. PREFACE AND INTRODUCTION Please carefully read this owner’s manual before using the vehicle. Improper use of the vehicle could result in harm, injury or traffic accidents. Therefore, for maximum pleasure while using the vehicle please read this owner’s manual. ♦... -
Page 5: Safety Notice
2. SAFETY NOTICE 2.1 BEFORE DRIVING The user needs to be familiar with the usage and operation of this vehicle before driving. Therefore, please always keep the following safety notices in mind. ■ The same traffic rules apply to the use of this vehicle as apply to pedestrians For your safety, please therefore follow the rules that apply to pedestrians. -
Page 6: While Driving
2. SAFETY NOTICE 2.2 WHILE DRIVING ■ Please carry out daily inspections. Refer to the section entitled “DAILY CHECKING” ■ Do not move your body out of the vehicle while moving ♦ Such action may cause you to lose balance and risk injury from falling. ♦... - Page 7 ♦ Do not drive on roads with large drops or potholes. ♦ Please slow down when driving on roads with inclines. ♦ Do not make sudden turns when driving on gravel roads or ramps. ♦ Always lean forward when climbing a steep gradient. 2.
- Page 8 Attention 1. Do not push both RH & LH sides of the speed control lever simultaneously. This might leave you unable to control your scooter. 2. Do not turn the power switch to OFF while driving as this will lead to an emergency stop and possible risk of accident and injury.
-
Page 9: Emi
2. SAFETY NOTICE 2.3 EMI This portion of the content will provide the user with basic information that describes the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic movement occur. Caution: It is very important that you read this information regarding the possible effects of electromagnetic interference on your electric scooter. -
Page 10: Parts Introduction
3. PARTS INTRODUCTION 3.1 PARTS DESCRIPTION 1. Power Switch 2. Charger Socket Cover 3. Basket 4. Tiller Adjust Lever 5. Seat Rotate Lever 6. Armrest 7. Width Adjustable Armrests Knob 8. Wheel lock Lever 9. Freewheel Lever 10. Anti-tip Wheel 11. -
Page 11: Operation
4. OPERATION... -
Page 12: Control Panel
4.1 CONTROL PANEL DC B attery Voltage Throttle Control Lever Horn Speed Adjustment 4.2 HOW TO OPERATE YOUR SCOOTER ■ Power switch Turn the key to power ON or OFF (ON) : Power is turned on (OFF) : Power is turned off ■... - Page 13 4. OPERATION ■ Horn Button Press the horn button to sound the horn. Release the button to stop the horn. ▓ How To Set Freewheel Mode The motor on the scooter can be disengaged to allow the scooter to be pushed. ♦...
- Page 14 4. OPERATION ▓ Braking4. OPERATION4. OPERATION4. OPERATION ♦ Electro-magnetic brake: Release the speed control lever completely, and the electromagnetic brake will be activated automatically, and the scooter will stop. ■ Parking ♦ After stopping, tune the main key to OFF and remove the key. The lights will turn OFF. The electromagnetic brake is engaged (locked).
- Page 15 4. OPERATION ■ How to re-position the seat Seat Swivel Adjustment: The seat can be rotated. Lift up on the handle under the left side of the seat and turn the seat to the desired position, releasing the handle to lock the seat in place. ■...
-
Page 17: Assembling And Disassembling
4 . OPERATION 4.3 ASSEMBLING AND DISASSEMBLING ■ Assembling The Scooter No tools are required to disassemble or assemble your scooter. 1. Place the freewheel mode lever in the drive position. 2. Set the rear section in the up position and make sure the hook for the front section is connected to the axle of the rear section. -
Page 18: Battery Charging And Care
5. BATTERY CHARGING AND CARE 5.1 CHARGING THE BATTERY Follow the procedure below step by step: 1. Turn the power switch to (OFF) 2. Connect the charger’s power cord into the power outlet. 3. Open the charging socket cap on the battery pack. Then connect the charger’s round plug to the charging socket. -
Page 19: Battery
Warning 1. Keep away from flammable objects while charging as it may lead to fire or explosion of battery. 2. Do not smoke while charging as the battery may release hydrogen gas. Always charge your battery in a well-ventilated space. 3. - Page 20 Suggestion – How to maximize your batteries efficiency and service life 1. Fully recharge your new battery before its first-time use. 2. Be sure to charge the battery fully every time. The battery life will be seriously shortened or decayed if the battery is repeatedly used without being fully charged.
-
Page 21: Inspection And Maintenance
Warning 1. The wiring system and charger are well situated in battery pack while assembled in plant. Do not attempt to re-locate the wiring system by yourself. The improper layout of wiring system may result in the wires pinched by battery box, which might the electronic system failure. 2. - Page 22 On/off switch Seat Controller Lever Back Braking Armrests Recharge point Electrics Batteries Connections condition Levels Lights Connections Test run Discharge test Forwards Wheels and Tyres Reverse Wear Emergency stop Pressure Left turn Bearings Right turn Wheel nuts Slope test Motors Over obstacles Wiring List Items repaired...
-
Page 23: Moving About
6. INSPECTION AND MAINTENANCE Suggestion Ask for help from your scooter dealer to inspect or replace the fuse, since the tiller shroud has to be removed first before you can replace the fuse. ▓Tires The condition of the tires depends on how you drive and use your scooter. ♦... -
Page 24: Trouble Shooting And Specification
Recharge the batteries. • If problem persists, please contact your WU’S dealer. ▓ SPECIFICATION Model Reference NOMAD Dimension (L x W x H mm) 1090x500x910 42.9x19.7x35.8 (L x W x H inch) Weight w/i battery Without 29.48 kg / 64.85 lbs battery 26.84 kg / 59 lbs... -
Page 25: Warranty
EV Rider for one year after the purchase of the Unit with the exception of the Stand-N-Ride scooter. Service: Warranty service can be performed by EV Rider, LLC or by an authorized EV Rider, LLC service facility. Do not return faulty parts to EV Rider, LLC without prior consent. A request for a Return Authorization is required prior to returning items. - Page 26 • Used other than for the purpose of the purchaser’s mobility. • Repairs and/or modifications made to any part of the scooter without specific and prior consent from EV Rider, LLC.
- Page 27 • Labor, service calls, shipping, and other charges incurred for repair of the product not approved by EV Rider, LLC. Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear clause. Any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse or accidental damage and as such is not covered by the manufacturer’s warranty.
- Page 28 8.2 VIN (VEHICLE INDIFICATION NUMBER) To ensure the correct after-sale service and warranty service support, please write down the vehicle identification number that is stuck on the back side of the frame. Model NOMAD Chassis NO. Motor serial # ……………………………………………………………………………………………………………………………… Warranty Application Form Name Tel no.
- Page 29 Wu’s Tech Co. Ltd. 3 Fl. No.112 Sec. 2, Chung-Shan N. Rd., Taipei, Taiwan, R.O.C. Tel: +886 2 2541 3253 Fax:+886 2 2536 7575 Distributed by: EV Rider, LLC 6410 Arc Way Fort Myers, FL 33966 Tel: (239) 278-5054 Fax: (239) 278-1431 service@evrider.com...
