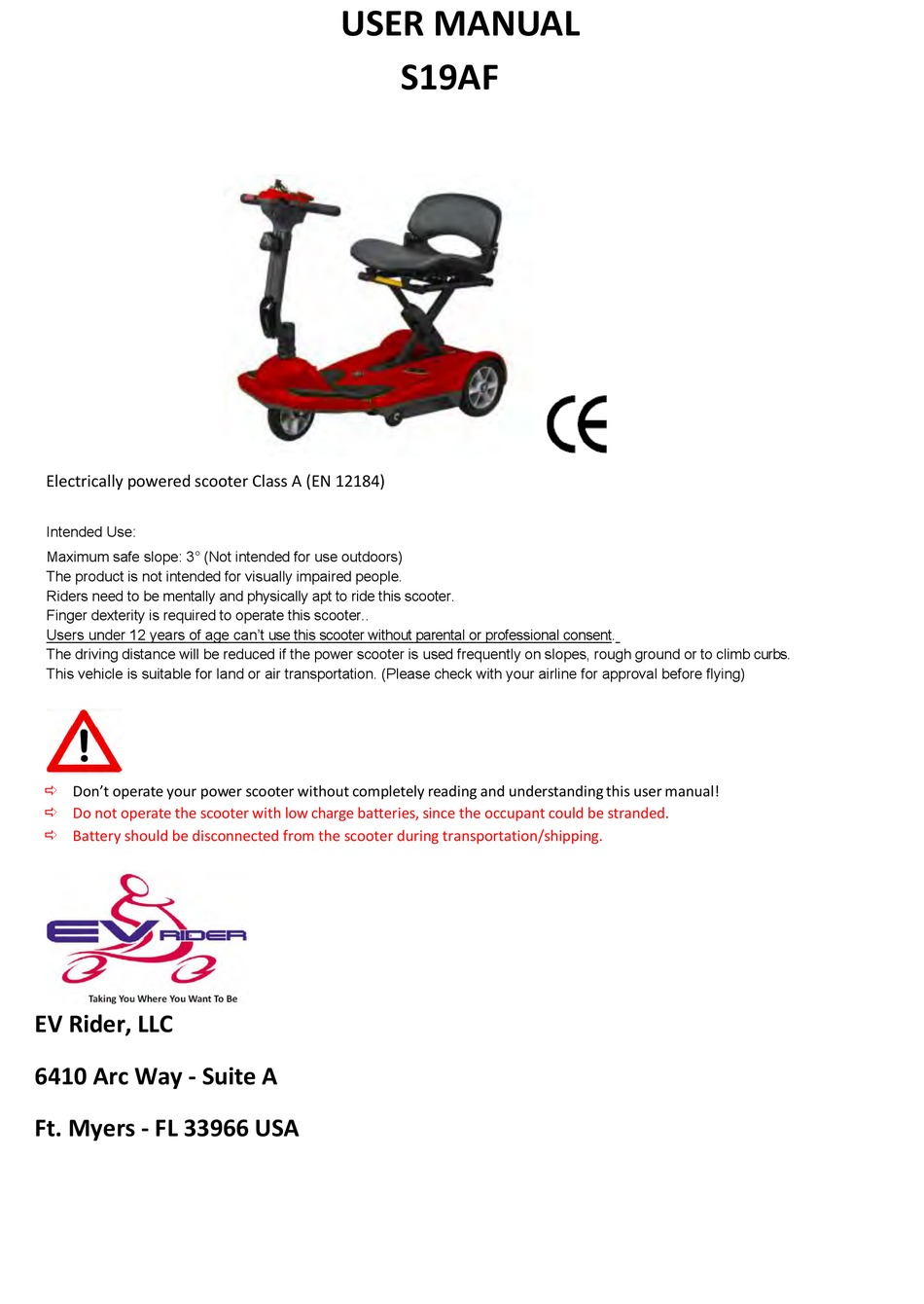

Do not operate the scooter with low charge batteries, since the occupant could be stranded. Battery should be disconnected from the scooter during transportation/shipping. EV Rider, LLC 6410 Arc Way - Suite A Ft. Myers - FL 33966 USA...
Page 2
CONTENTS Safety Instructions Electromagnetic Interference (EMI) Transporting the Scooter Specifications Comfort Adjustment Do not make sharp Control Panel Operation Do not ride your turns or sudden stops Riding on the Road scooter in traffic. while riding your Emergency Charging Procedure scooter.
Page 3
Personal injury and use is not the responsibility of EV Rider. damage to the scooter may result. Always ensure the scooter is fully u n folded Never try to use your scooter beyond its before sitting on the scooter.
Page 4
Do not modify your power scooter in any way not communication signals. These EM wave are invisible authorized by EV Rider. Do not use accessories and their strength increases as one approaches the if they have not been tested or approved for EV source.
Page 5
(Note: It is difficult to Model S19AF evaluate the effect on the overall immunity of Weight Limit 250 lb. /115kg (18 stone) the powered scooter).
Page 6
UNFOLDING THE SCOOTER FOLDING THE SCOOTER Turn the key off and dismount the scooter. 1. Position the scooter with rear wheels and anti- tip wheels on the ground (as shown below): Fold down the backrest of the seat (highlighted on the picture below). 2.
Page 7
handle bars. Squeeze the left hand side of the SCOOTER OPERATION wigwag paddle (BLACK) towards you and the scooter will move backwards, emitting an audible reverse alarm. To brake, release the wigwag Control Panel paddle which will return to neutral and activate the electromagnetic brake automatically and bring the scooter to a prompt stop.
Page 8
• Battery Gauge. The battery gauge on the tiller RIDING ON THE ROAD console lights LEDs to show remaining power: • Starting and Riding Green (3 or 4 LEDS lit) - 40% - 100% capacity 1. Make sure the scooter is fully unfolded. Yellow (2 LEDs lit) - draining charge (10% - 30%) 2.
Page 9
BATTERY CHARGING AND CARE EMERGENCY CHARGING PROCEDURE Step 1. Insert the charger in to the power outlet and The scooter comes with an emergency charging cable. switch the power on. Ensure the charger is not If the scooter is folded up and the battery is connected to the scooter, and one of the charger completely flat, then the standard charging socket LEDs is lit green.
Page 10
To disconnect the battery: Warning 1. Only use the charger supplied with the 1. Remove the battery compartment cover by scooter. Using the wrong type of lifting cover up using the ignition key or a charger may cause damage. Never small flathead screwdriver.
Page 11
To ensure your scooter is correctly serviced contact the scooter as a whole. EV Rider to direct you to an authorized dealer for regular servicing. We recommend that scooters are serviced at least annually, and your dealer may charge a fee for this.
Page 12
The batteries have run out. fault Recharge the batteries. We recommend the scooter is servicing by annually Check the battery and by an authorized technician. Contact EV Rider to be associated wiring High battery Battery voltage is too high. referred to one near you.
Page 13
(An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter). The batteries are warranted by EV Rider for one year after the purchase of the Unit with the exception of the Stand-N-Ride scooter.
Need help?
Do you have a question about the S19AF and is the answer not in the manual?
Questions and answers
How do I know which model my husband scooter is? He has passed away and I don’t know where the booklet is.

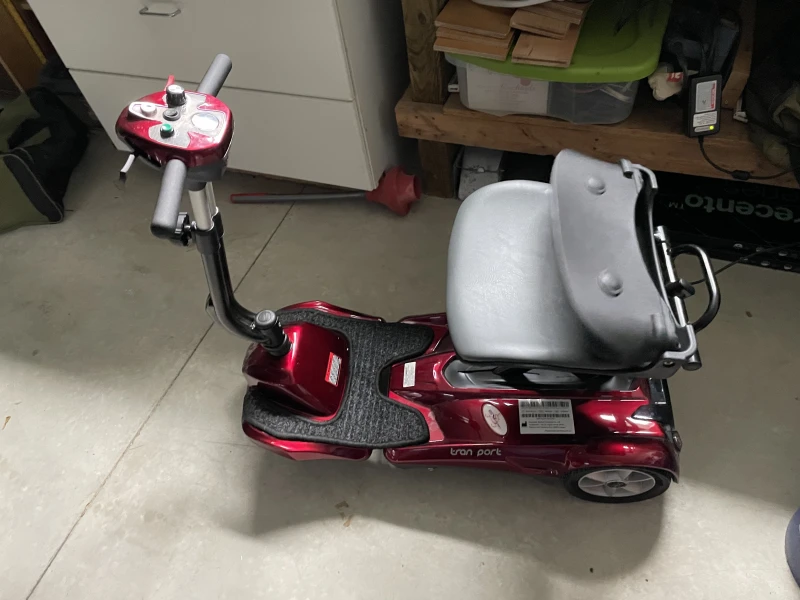

The model of an EV Rider scooter with part number S19AF is the EV Rider Transport AF+ (Auto Folding) Travel Mobility Scooter.
