Summary of Contents for EV Rider Stand N Ride
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE It is important to read and follow all the instructions and safety information contained in this Owner's Manual prior to use. Always wear a safety helmet (which is provided with each SNR scooter). Do not operate at night. Comply with all local laws and regulations. -
Page 3: Table Of Contents
Base Frame Assembly Installing the Optional Seat Assembly Coupling the Tiller to the Base Frame Installing the Battery Pack Before You Ride Checklist How to Ride the Stand N Ride Battery System and Charger Basic Maintenance Trouble Shooting Specifications Warranty Information... -
Page 4: Important Safety Information
The wheels are not intended to go over more than 3” obstacles. You may fall when running over these obstacles. Do not ride the Stand N Ride downhill for extended periods of time. This may increase the wear of the brake lining and adversely affect the ability to stop the unit. -
Page 5: Mechanical Systems
Page 4 Mechanical Systems Check all joints, hinges and quick releases to ensure that the Stand N Ride is properly assembled. Stop using the product immediately if any joint, hinge or quick release becomes loose. Re-tighten the joint, hinge or quick release prior to resuming the ride. -
Page 6: Additional Safety Information
Adjust the handle bar height to provide a comfortable and secure riding position on the Stand N Ride scooter. The rider's hands should be able to easily grasp the handle bar controls (throttle and brake lever). They should not be higher than the waist or lower to ensure proper posture and riding control of the unit. -

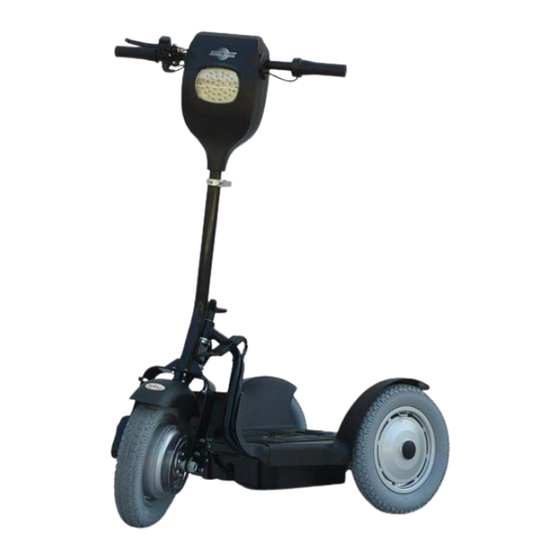

Page 7: Stand N Ride Overview Diagram
Page 6 Stand N Ride Overview Fast/Slow Battery Gauge ON/OFF Headlight FWD/REV Brake Horn Throttle Optional Seat Basket Take-Apart Rear Wheel Hub Motor/Drive Wheel Battery Pack Anti-Tippers... -
Page 8: Assembly Instructions
Assembly Instructions Your Stand N Ride is shipped in two boxes: 1 containing the tiller and 1 containing the base frame. After you have removed the Stand N Ride components from the protective packaging, you are ready to set up your scooter for riding by following these steps:... -
Page 9: Installing The Optional Seat Assembly
Installing the Optional Seat Assembly: Locate all the seat assembly components and have them at hand to begin the installation of the seat assembly (Fig 5). - Remove the seat-post locking collar from the main seat-post tube to allow insertion of the tube through the base frame from the bottom up (fig 6). -
Page 10: Coupling The Tiller To The Base Frame
- Turn the ignition key to the ON position and tap the horn button to verify the connection. You are now ready to test your Stand N Ride! Fig 11 Fig 12 Fig 13... -
Page 11: Before You Ride Checklist
6. Select the speed setting (Fast or Half Speed) as desired. We recommend that you begin using the Stand N Ride scooter only in half speed until you get acquainted with Page 10... -
Page 12: Battery System And Charger
FAST speed setting. Battery system and Charger Warning: Only use the battery charging unit that was supplied with your Stand N Ride scooter. Use of any other battery charging unit or equipment voids your warranty and may result in severe damage to the battery pack and the scooter and may cause a fire hazard. -
Page 13: Basic Maintenance
Due to the Stand N Ride’s modular design, there are virtually no user serviceable parts. Attempting to service or modify any of the scooter’s internal components may result in permanent damage to the scooter and will void the warranty. -
Page 14: Specifications
Model number Color Overall length Overall width Ground clearance Weight capacity Component Weights: Base Tiller Battery Pack Seat & Charger Total Top speed Motor type Tire size Battery type Charger Optional Seat type Important Notice: Dimensions and specifications are subject to change without prior notice. SPECIFICATIONS SNR-1000 Black Textured ABS Plastic &... -
Page 15: Warranty Information
Batteries - Batteries carry a limited warranty which is subject to a stringent wear and tear clause. If batteries are bought from EV Rider in addition to the product (not provided free of charge), then any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use.
