CARVIN SCX 1112 Specifications

CARVIN ENGINEERING DATA
SCx1112
SCX1253
76-12530A 1212 EP
Carvin's SCx 1000 series loudspeakers are a durable high performance solution for bands and audio companies
for small to mid sized venues. They feature the latest innovations for both live sound and recorded music
playback, incorporating drivers that deliver clear, very musical sound quality at high volume levels up to 134
dB. Smart crossovers with Speaker Guard™ circuitry protect high frequency drivers from overload. Rugged
construction features CNC machined, multi-ply Baltic Birch enclosures protected with UV and weather resistant
Duratec™coating and powder coated radiused steel grills. NL4 twist-loc input connectors, pole mounts, large side
handles and recessed pockets for stacking add to a list of great performance values that are designed for today's
pro audio.

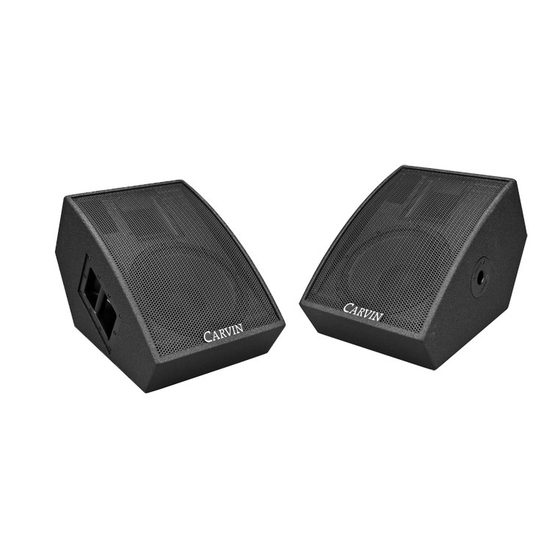

The SCX1112 is a 12" 2-way enclosure for smaller applications and great for vocal stage monitors. The full range
1200 watt peak power rating and high SPL output permits the performer to really hear their mix. The 60x90 degree
horn is vertically oriented for even floor monitor coverage at close or far angles, and horizontal pole-mounting
provides wide audience coverage when used as front-of-house mains in smaller venues and events.
The SCx1115 is a 15" 2-way multi-purpose enclosure for front of house mains, stage monitors, or DJ sound.
Loaded with a 15" heavy-duty woofer, it will handle up to 1600 watts peak. This is an exceptional sounding
enclosure for most applications requiring extended bass from a small enclosure.
The SCx1253 is a high performance, compact, dual 15" 3-way loudspeaker. The 15" woofers are co-planar
mounted resulting in a compact size that produces exceptional bass with real low-end punch. The 6 1/2" mid-range
horn loaded driver adds a new dimension of clarity to vocals and drums. The high frequency mylar compression
driver features a 90x50 degree horn with a 1-inch exit extending response to 20kHz. The NL4 twist-lock input
connectors allow for easy bi-amping. With a 4 ohm impedance and staggering 3200 watt peak power handling, this
wide dispersion loudspeaker system delivers a high intelligibility, studio quality sound with a high SPL peak output
of 134 dB. There is nothing on the MI market matching it's sound or output at this size and weight.
For more low-end thump, all SCx systems can be supplimented with SCx1118 passive subs or SCx1118A active
subs. The heavy-duty 18" woofer is housed in a bass reflex enclosure delivering sub-bass down to 35 Hz, adding
real depth and feel to your performances. The 8 ohm, 3" voice-coil is designed to handle up to 2000 watts peak.
The active model features an internal 1400 watt power amp. Ideal for multi-stacking or stacking mains on top, this
compact hi-output subwoofer is a real work-horse that you can depend on, night after night.
Step up to a new experience in high performance sound with Carvin's SCx loudspeakers.
SCX1118
SCX1118A
SCx1000 series LOUDSPEAKER SYSTEMS
SCx1115
