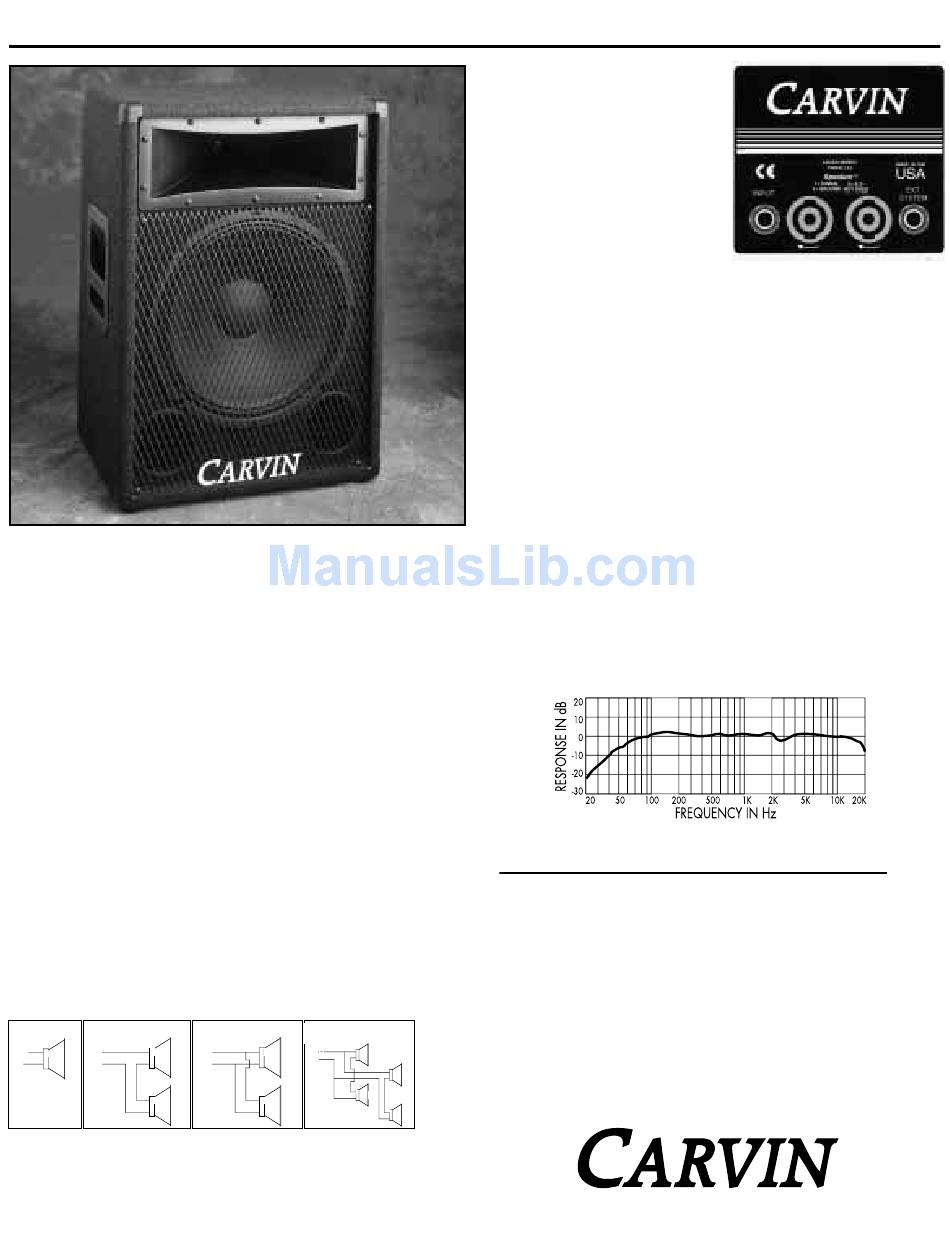

CARVIN 832-V1 Instructions

CARVIN ENGINEERING DATA
Congratulations on your selection of the 832 loudspeaker. The 832 is one of our
most popular because of its exceptional cost to performance value. This 400 watt
system features a large 15" woofer that delivers great bottom end while the large
radial horn delivers crystal clear treble. This is one of our most efficient speakers
for its size. It's great for indoor or outdoor performances, churches, schools or
clubs. Use it with the optional TS30BN stand. The 832 includes a built-in recessed
bracket for easy mounting to speaker stands.

RECEIVING INSPECTION

INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the best
possible protection during shipment. CARVIN and the shipping company are not liable
for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with your
name and comments to us.

SUGGESTIONS FOR OPTIMAL PERFORMANCE

Raise the enclosure to the ear level of your audience for greater coverage. To
help control feedback, use a graphic equalizer. Keep the speakers in front of the
microphone. Never direct the microphone towards the speaker. For greater
coverage, add a second speaker system 20° to 30° off axis.

TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS

Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+ +
+
+
8Ω 8Ω 16Ω 8Ω
+
8Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
832
PARALLEL CONNECTION SERIES/PARALLEL
4Ω TOTAL IMPEDANCE CONNECTION
8Ω TOTAL IMPEDANCE
+
+ +
+
8Ω
8Ω
4Ω 8Ω
+
8Ω
+
8Ω
832 SPEAKER SYSTEM

REAR CONNECT PLATE

Two professional twist-lock SPEAKON™
connectors and two standard 1/4" phone
jacks are featured. Use these connectors
for connecting to the power amp and daisy
chaining to an additional speakers.

SPEAKER CABLES

The PH50 is our standard cable when purchasing a complete sound system.
These cables feature 1/4" plugs and heavy 16 gauge copper wire. The PH50 is
adequate for lengths up to 50' under normal use. You can DAISY-CHAIN up to one
additional speaker per cable by using the unused 1/4" OUTPUT" jack (right side)
on your speaker jack plate. Be sure to note the total impedance to the amp so it is
not lower than it's recommended impedance. See Typical Loudspeaker Impedance
Configurations.

PRECAUTIONS

1) DO NOT EXCEED THE POWER RATING marked on the rear connect plate.
Excessive power will destroy drivers. 2) DISTORTION from power amps will destroy
drivers much faster than clean power. 3) WATER, MOISTURE, and DUST are
harmful to drivers causing failure which is not covered under warranty.

WARRANTY

CARVIN loudspeakers are covered by a ONE year limited warranty unless
otherwise stated. Warranty coverage is limited to original manufactures defects
only. WARRANTY DOES NOT COVER: 1) Opened or burned voice coils. 2) Torn
cones caused by improper packing or abuse. 3) Damage from rain, moisture, ETC.
When returning defective driver(s), remove them from the enclosure to reduce
shipping costs . DO NOT stuff paper into the driver(s). Return pre-paid by UPS.
Include your address and description of the problem. Your driver(s) will be returned
COD for the cost of shipping and reconditioning if not covered under warranty.

MODEL 832 SPEAKER SYSTEM SPECS:

Useable Low Frequency:
Horn Driver Protection:
Woofer Enclosure Type:
+
8Ω
+
8Ω

832 FREQUENCY RESPONSE

Frequency Response: 65 Hz to 17 kHz ±3 dB
42 Hz (-10 dB)
Power Handling: 400w Continuous Power
Recommended Amp: 50 to 600 watts
Sensitivity: 100 dB SPL, 1 Watt @ 1 meter
Coverage Angles: 90° Horizontal, 45° Vertical
Nominal Impedance: 8Ω
Yes
Inputs/Outputs: Two SPEAKON™ & 1/4" Connectors
Vented Box
Enclosure Covering: Black Duratuff II™
Dim/Wt: 20"W x 14"D x 26"H, 47 lbs.
Warranty: One Year
Options: Cover: CVS832, Stands: SS20 or SS30
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
